Summary of Contents for SSV Embedded Systems IGW/936-L
-
Page 1: First Steps

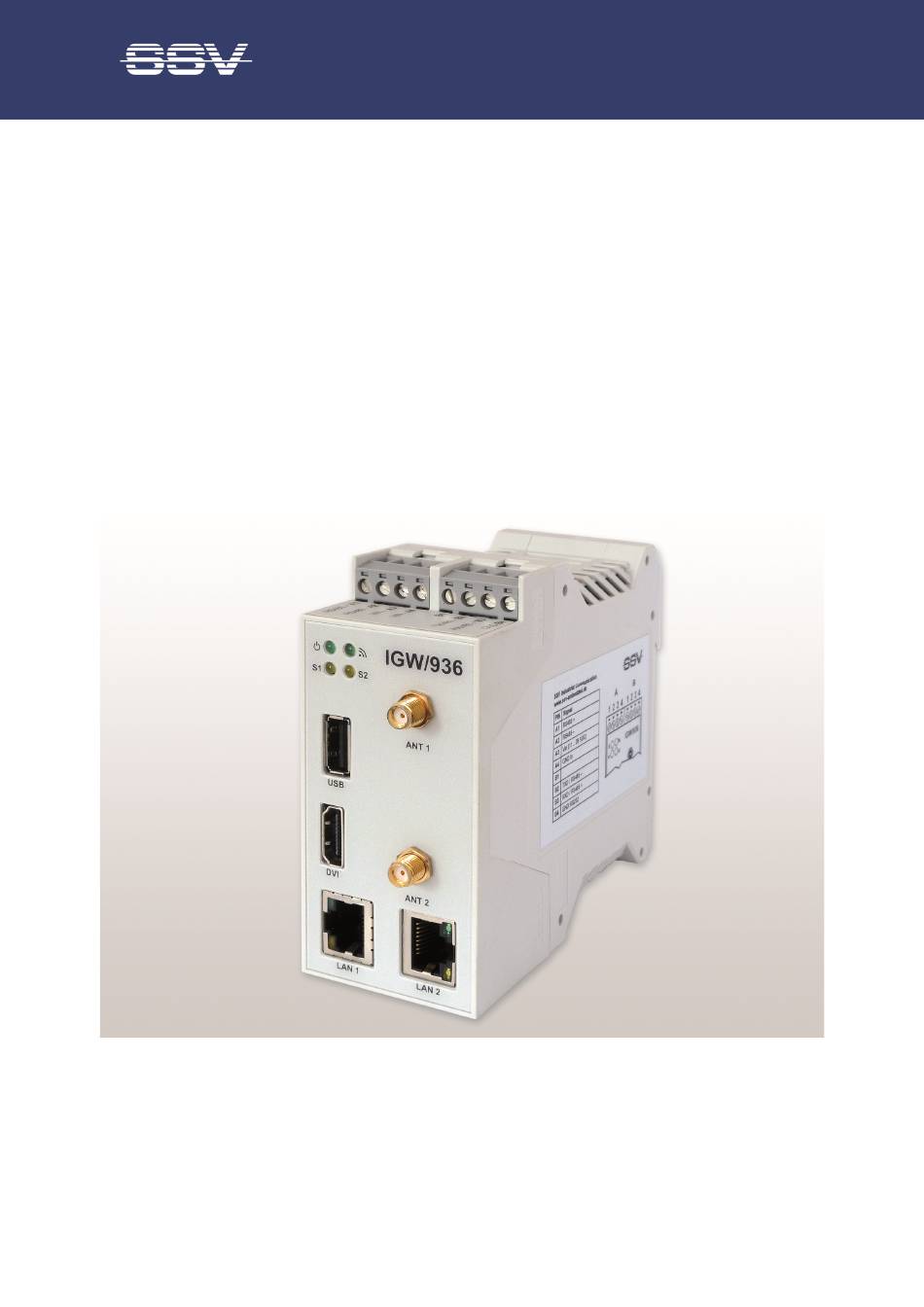

LTE Router IGW/936-L with eSOM/3517 First Steps SSV Embedded Systems Dünenweg 5 D-30419 Hannover Phone: +49 (0)511/40 000-0 Fax: +49 (0)511/40 000-40 Document Revision: 1.4 Email: sales@ssv-embedded.de Date: 2018-08-29... -
Page 2: Table Of Contents
LTE Router IGW/936-L – First Steps CONTENT INTRODUCTION ....................... 3 1.1 Checklist ..........................3 1.2 Conventions ........................... 3 SAFETY GUIDELINES ..................... 4 REQUIRED EQUIPMENT ....................5 SIM CARD ......................... 6 CONNECTIONS ........................ 7 5.1 LTE Antenna ........................... 7 5.2 Ethernet Link .......................... 8 5.3 Serial Ports COM2 and COM3 .................... -
Page 3: Introduction
1x LTE antenna Adapter cable with power and RS232 connector Plug-in power supply Screwdriver Documentation CD-ROM for eSOM/3517 IMPORTANT! You will need further equipment to operate the IGW/936-L! Please refer to chap- ter 3. Conventions Convention Usage bold Important terms... -
Page 4: Safety Guidelines
LTE Router IGW/936-L – First Steps SAFETY GUIDELINES Please read the following safety guidelines carefully! In case of property or personal damage by not paying attention to this manual and/or by incorrect handling, we do not assume liability. In such cases any warranty claim expires. -
Page 5: Required Equipment
SIM card is inserted. one Ethernet cross-over cable or two Ethernet patch cables and a switch. • To configure the IGW/936-L a PC with the following features is required: Windows 7 or higher • Web browser (e.g. Firefox, Chrome) •... -
Page 6: Sim Card
LTE Router IGW/936-L – First Steps SIM CARD The internal SIM card of the IGW/936-L can be changed through the slot on the backside. To insert the SIM card just push it by hand as deep as possible into the slot. -
Page 7: Connections
The following chapters describe how these connections have to be made. LTE Antenna Connect the LTE antenna with the IGW/936-L like shown in fig. 3 and place it where the LTE signal strength is high. Figure 3: Connecting the LTE antenna Please note: The best LTE signal strength is achieved by using two antennas. -
Page 8: Ethernet Link
LTE Router IGW/936-L – First Steps Ethernet Link The Ethernet link between the PC and LAN1 of the IGW/936-L can be made on two ways: Direct with an Ethernet cross-over cable like shown in fig. 4. • With two standard Ethernet patch cables over a hub or switch like shown in fig. 5. -
Page 9: Serial Ports Com2 And Com3
LTE Router IGW/936-L – First Steps Serial Ports COM2 and COM3 You can create an RS485 serial link on port COM2 and COM3 of the IGW/936-L. An RS232 serial link is only possible on port COM3. Figure 6: Serial links on COM2 and COM3... -
Page 10: Power Supply
Table 4: Screw terminal power CAUTION! Providing the IGW/936-L with a higher voltage than the regular 11 – 28 VDC could cause damaged device components! Do NOT turn on the power supply while connecting it with the IGW/936-L. This could cause damaged device components! First connect the power supply and THEN turn it on. -
Page 11: Operation
LTE Router IGW/936-L – First Steps OPERATION Booting the IGW/936-L Just power up the IGW/936-L and the boot process starts immediately. The IGW/936-L boots thereby an embedded Linux out of its Flash memory. This may take up to one mi- nute. -
Page 12: Accessing The Ssv/Webui With Dhcp Enabled
Accessing the SSV/WebUI with DHCP enabled If the automatic IP address configuration of LAN1 via DHCP is enabled, you have to check the assigned IP address, which is necessary to access the IGW/936-L via a Telnet client or a web browser. - Page 13 Figure 10: The properties dialog shows the current IP address Now you are able to access the IGW/936-L via a Telnet client or a web browser. D o c u m e n t R e v i s i o n 1 . 4...
-
Page 14: Lte Modem Configuration
LTE Router IGW/936-L – First Steps LTE Modem Configuration To configure the modem settings choose from the menu Network > Mobile. Figure 11: Mobile network settings 1. In the section Modem configuration enable the checkbox. 2. In the section ISP settings choose your provider. -
Page 15: Wan Configuration
LTE Router IGW/936-L – First Steps WAN Configuration To use the IGW/936-L as an LTE router the WAN (Wide Area Network) settings need to be configured. Choose from the menu Network > WAN. Figure 12: WAN settings 1. In the section WAN configuration choose Mobile. -
Page 16: Firewall Configuration
LTE Router IGW/936-L – First Steps Firewall Configuration Choose from the menu Services > Firewall and NAT. Figure 13: Firewall and NAT settings 1. In the section Firewall configuration enable the checkbox. 2. In the section Forwarding with IP-Masquerading and NAT enable the checkbox. -
Page 17: Lan1 Configuration
LTE Router IGW/936-L – First Steps LAN1 Configuration The IP address of the LAN1 interface is ex-factory set to 192.168.0.126. To configure the LAN1settings choose from the menu Network > LAN1. Figure 14: LAN1 settings To enable the automatic IP address assignment via DHCP follow these steps: 1. -
Page 18: Lan2 Configuration
LTE Router IGW/936-L – First Steps LAN2 Configuration The LAN2 interface is ex-factory disabled. To enable LAN2 choose from the menu Network > LAN2. Figure 15: LAN2 settings 1. In the section Network configuration for LAN2 enable the checkbox. The IP address is preset to 192.168.10.126. -
Page 19: Access Via Telnet
Access via Telnet To access the IGW/936-L via Telnet please open a Telnet client program (like TeraTerm) on your host PC and enter the current IP address* of the IGW/936-L to activate a Telnet ses- sion. In the upcoming Telnet window you can login with the username root and the password root. -
Page 20: Access Via Ftp
Access via FTP The IGW/936-L comes with a pre-installed FTP server, which allows the file transfer via Ethernet between a PC and the IGW/936-L. To access the IGW/936-L via FTP use an FTP cli- ent like e.g. FileZilla. Figure 17: FileZilla as FTP client to access the FTP server Use for the FTP login the current IP address* of the IGW/936-L, the username root and the password root. - Page 21 LTE Router IGW/936-L – First Steps To disable the write protection just login with the username root and the password root and enter the following command: mount / -o remount,rw This command „mounts„ the file system as read/write. All files are now writable and deletable.
-
Page 22: Technical Data
Mechanical Dimensions (LxWxH) ......112 mm x 46 mm x 100 mm Temperature range ................0° C – 70° C Rel. air himudity .................. max. 85% PINOUT SCREW TERMINALS The table 6 shows the pinout of the screw terminals of the IGW/936-L. Terminal Signal COM2 Serial Port: RS485 RX/TX+ COM2 Serial Port: RS485 RX/TX- Vin (11 .. -
Page 23: Led Functions
LTE Router IGW/936-L – First Steps LED FUNCTIONS Description Flash Power No Power Power On Wireless Always Off System Not ready Booting Ready Modem/VPN Connecting Ready Table 1: LED functions The LED S2 shows the modem state by different flashing provided the modem is used. -
Page 24: 10 Trouble Shooting Ip Address Problems
SSV/WebUI (the configuration user interface) of the IGW/936-L cannot be accessed any- more. In that case it is necessary to restore the factory settings of the IGW/936-L. To do so please follow these steps: 1. Connect the LAN1 interface of the IGW/936-L via a cross-over-cable with the LAN inter- face of a Windows PC. -
Page 25: 11 Helpful Literature
Information in this document is provided ‘as is’ without warranty of any kind. Some names within this document can be trademarks of their respective holders. © 2018 SSV EMBEDDED SYSTEMS. All rights reserved. D o c u m e n t R e v i s i o n 1 . 4...
