Blue Sea Systems WeatherDeck 4302 Manual

Instructions
WeatherDeck® Waterproof Fuse Panels
PN 4302 / PN 4304 / PN 4306 / PN 4308
Designed for open-cockpit and flybridge applications
• Includes 15A, ATO®/ATC® Fuse installed in each position
• Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red),
ON (Green), or Blown (No color) circuits
• Backlighting is compatible with DeckHand Dimmers
• Independent label backlighting allows switching and dimming
• Integrated switch guards reduce the risk of accidental switching
• Panels can be mounted in four different orientations
• Panel front rated waterproof IP67 when properly mounted with the
watertight mounting gasket
• UV stabilized weather-resistant faceplate snaps on and off providing
access to components and concealing mounting screws
• Square Format Label Set 4215 included
GUARANTEE: Blue Sea Systems stands behind its products for as long
as you own them. Find detailed information at www.bluesea.com/about.
For customer service, call 800-222-7617.
Blue Sea Systems Inc.
425 Sequoia Drive
Bellingham, WA 98226 USA
Specifications
Maximum Operating Voltage
Maximum Operating Amperage
Backlight Operating Current (Amperage) 10mA/Illuminated Circuit
Panel Cumulative Rating
Switch Rating
Backlighting Voltage
Fuse Rating
Material: Cover
Panel
Regulatory
Waterproof IP67—Protected against immersion up to 1 meter for 30 minutes
Width
PN Positions Voltage
in (mm)
3.88
4302 2 12V DC
(98.55)
3.88
4304 4 12V DC
(98.55)
3.88
4306 6 12V DC
(98.55)
3.88
4308 8 12V DC
(98.55)
Specifications subject to change. See bluesea.com for additional information and specifications
®
p 360.738.8230
f 360.734.4195
conductor@bluesea.com
www.bluesea.com
12V DC
15A @ 12V DC (per circuit)
30A (PN 4302)
60A (PN 4304)
90A (PN 4306)
100A (PN 4308)
15A Maximum
12V DC Nominal
15A installed, others available
UV Resistant Thermoplastic
UL-V0 Flame Resistant Thermoplastic
Width
Height Depth
Mounting
in (mm) in (mm)
Centers in (mm) Centers in (mm)
2.60 2.50 3.31
(66.04) (63.50) (84.07)
4.30 2.50 3.31
(109.22) (63.50) (84.07)
6.00 2.50 3.31
(152.40) (63.50) (84.07)
7.70 2.50 3.31
(195.58) (63.50) (84.07)
Installation
CAUTION
CAUTION symbol refers to a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury.
WARNING
WARNING symbol refers to a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION
If you are not knowledgeable about electrical systems, consult an
electrical professional.
If the panel front is to be exposed to water, it must be properly sealed to the surface.
The included gasket must be in place and the panel screwed down securely.
Panel switches are not ignition proof—the panel must NOT be installed in an
explosive environment such as a gasoline engine room or battery compartment.
WARNING

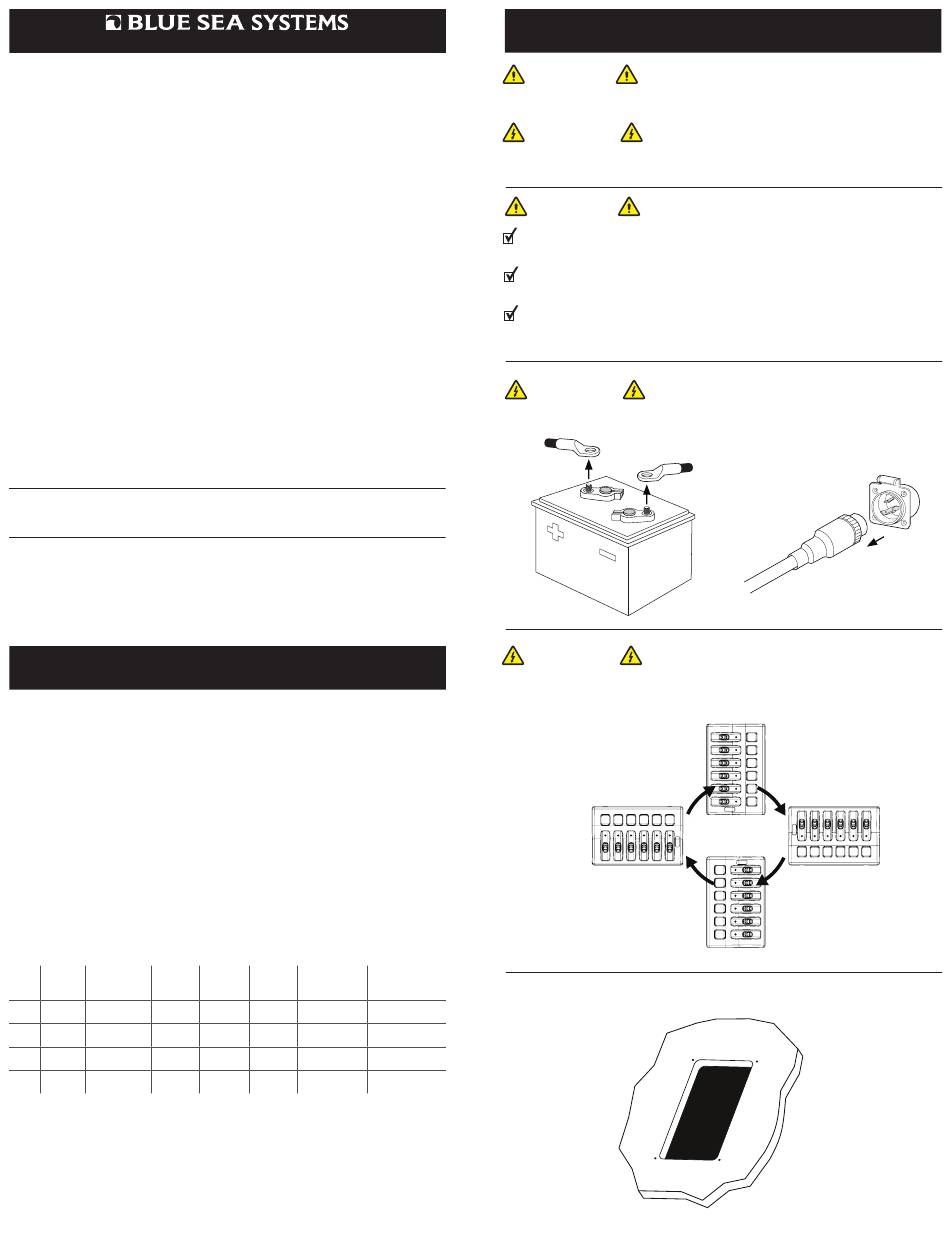

1. Before beginning electrical installation, disconnect all AC and DC power sources.
DC
6443 Rev.005
WARNING
2. Select mounting location and panel orientation away from flammable areas.
Panel can be mounted in any of the four orientations shown below.
Height
Mounting
3. Cut opening with template provided.
2.04
(51.82)
3.74
(95.00)
5.44
(138.18)
7.14
(181.36)
AC
