DSB Quick Start Guide

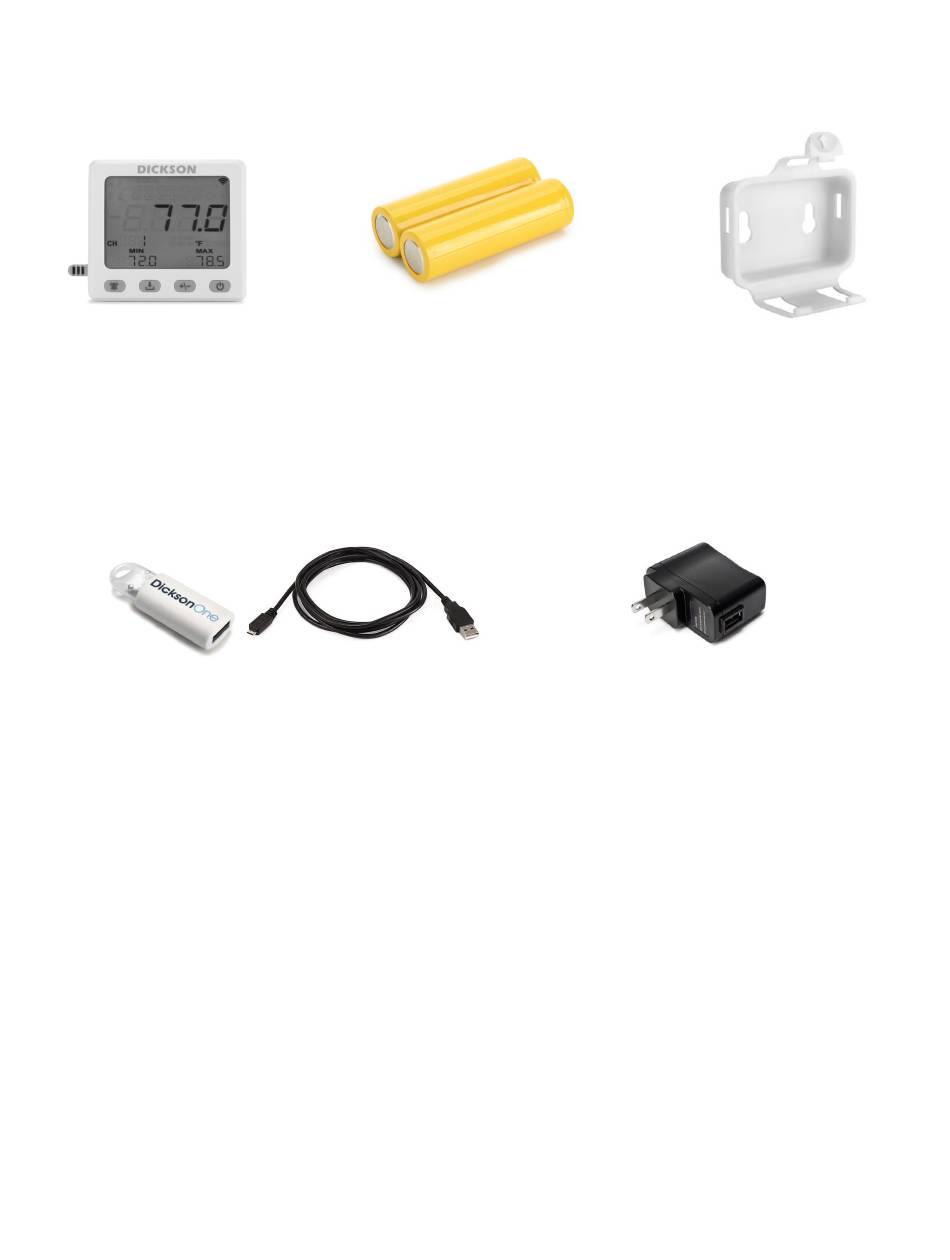

What's in the Box:

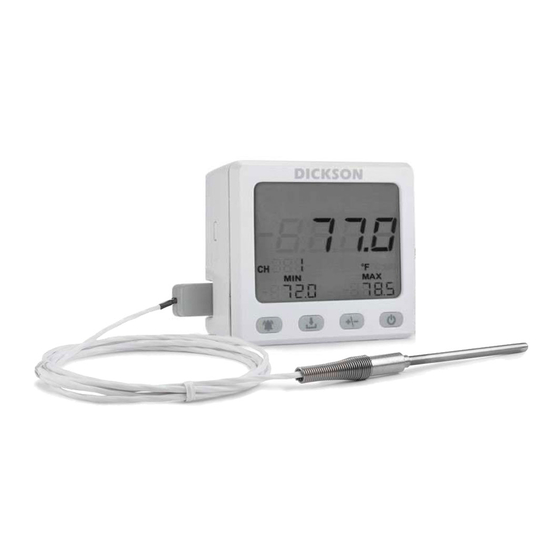

DSB Data Logger + Replaceable Sensor
(Sensor is sold separately and may be
different than pictured)

Accessories:
Software, USB Stick, USB Cable
(sold separately, required for configuration and download)

Replaceable Sensors
The DSB device works with Dickson's replaceable sensors (sold separately), which are designed to eliminate downtime
and simplify recalibration of the device. Find more information at: DicksonData.com/replaceable-sensors

Getting Started With The DSB
The following steps will get you logging data quickly and easily:
1. Open the rear battery compartment door and add 2 AA batteries
2. Slide the replaceable sensor all the way into the port in the back
3. Press and hold the power button to power the device on. The display will indicate that it is loading; the current
Firmware version number will then flash on the screen for a few seconds
4. Once powered on, you will see the most recent reading appear on the screen. You will need to configure the
device via Dicksonware (see "Configuring Device Settings Using Dicksonware")
AA Batteries
Mounting Bracket & Hardware
AC Adapter
(optional accessory)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSB and is the answer not in the manual?

Questions and answers

Related Manuals for Dickson DSB

Summary of Contents for Dickson DSB

  • Page 1 (sold separately, required for configuration and download) (optional accessory)   Replaceable Sensors  The DSB device works with Dickson’s replaceable sensors (sold separately), which are designed to eliminate downtime and simplify recalibration of the device. Find more information at: DicksonData.com/replaceable-sensors   Getting Started With The DSB ...
  • Page 2 4. Once the download is complete, launch the program by clicking the icon on your desktop 5. Connect the DSB to your computer using the USB cable. The software will recognize the connected device 6. Click the “Configure” button at the top of the screen. Give the logger a name Sample Rate ...
  • Page 3 Using your DSB with the DicksonOne Legacy uploader  The DSB can be used with the DicksonOne Legacy Uploader. This allows a user to post data collected by a non-internet connected device to a DicksonOne account so it can be viewed, shared, and analyzed. Learn more at: DicksonData.com/dicksonware/legacy-uploader...
