Summary of Contents for SYP AU-1HARC

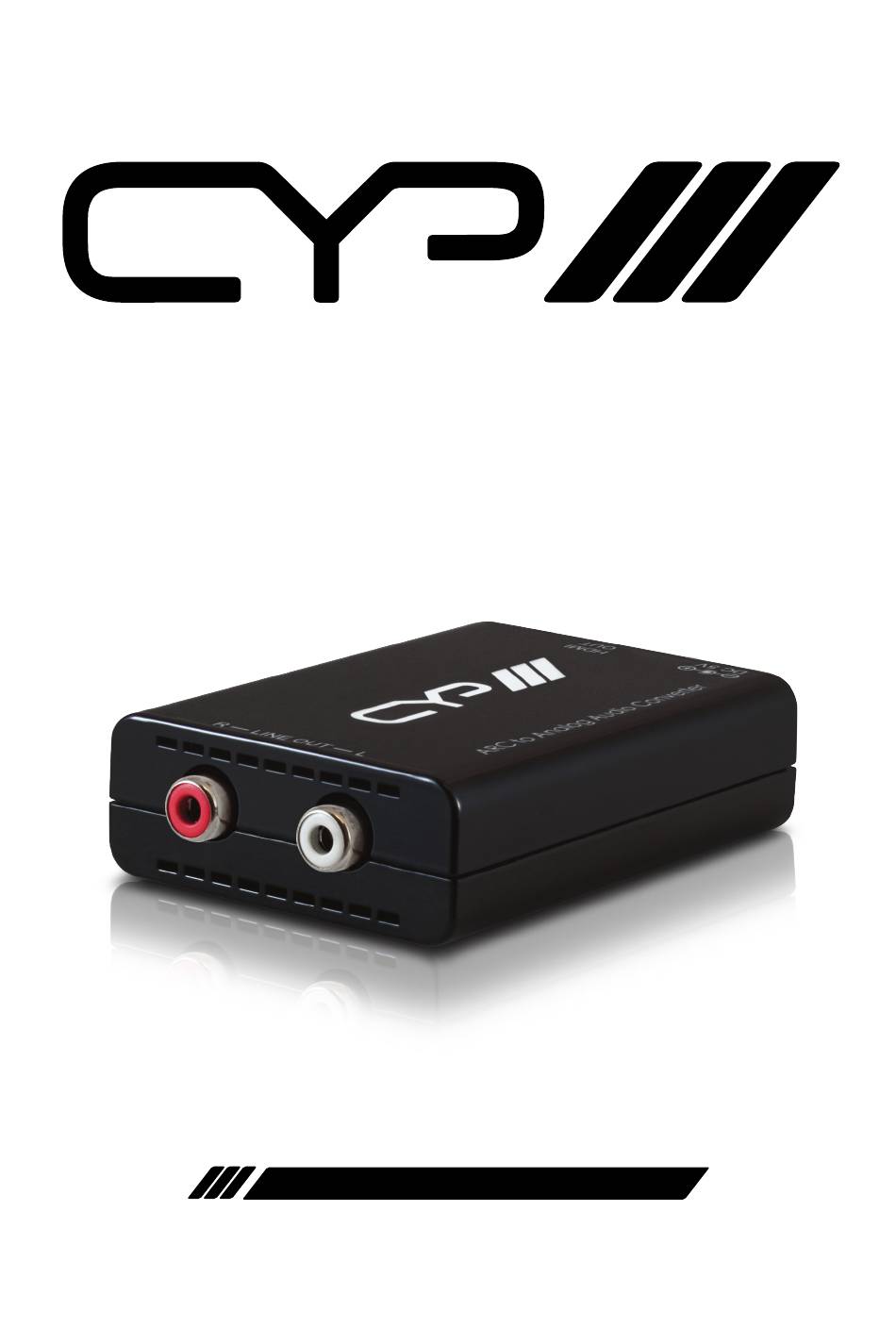

- Page 1 AU-1HARC HDMI to Stereo Audio (2 Phono) ARC Extractor OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........6 6. Operation Controls and Functions ..7 6.1 Front Panel ........... 7 6.2 Rear Panel ............. 7 7. Connection Diagram ......8 8. Specifications .........9 8.1 Technical Specifications ...... -
Page 6: Introduction
1. INTRODUCTION The AU-1HARC is designed to extract the audio signal from any ARC (Audio Return Channel) enabled HDTV and convert it to a line-level analogue stereo signal. This device is perfect for use with HDTV's with no dedicated audio output allowing the audio to be extracted from the ARC enabled HDMI connection and sent to a non-HDMI equipped amplifier, AVR, or active speakers. -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel DC 5V HDMI DC 5V: Connect the 5V DC power supply to the unit and plug the adaptor into an AC outlet. HDMI: Connect to a TV/Display's ARC enabled HDMI connector with an active audio signal. -
Page 8: Connection Diagram
7. CONNECTION DIAGRAM TV/Display (with Audio Return Channel function) HDMI Input Analogue Stereo Output Amplifier and Speakers... -
Page 9: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI ARC Port 1×HDMI (Female) Output Port 1×Analogue Stereo (2 RCA) HDMI Audio Up to 192 kHz Sampling Rates ESD Protection Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Power Supply 5 V/1 A DC (US/EU standard, CE/FCC/UL certified) Dimensions 55 mm (W)×75.5 mm (D)×22.5 mm(H)/Jacks Excluded... -
Page 10: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Audio Return Channel Digital to Analogue Converter Consumer Electronic Control HDMI High-Definition Multimedia Interface... - Page 12 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.01...
