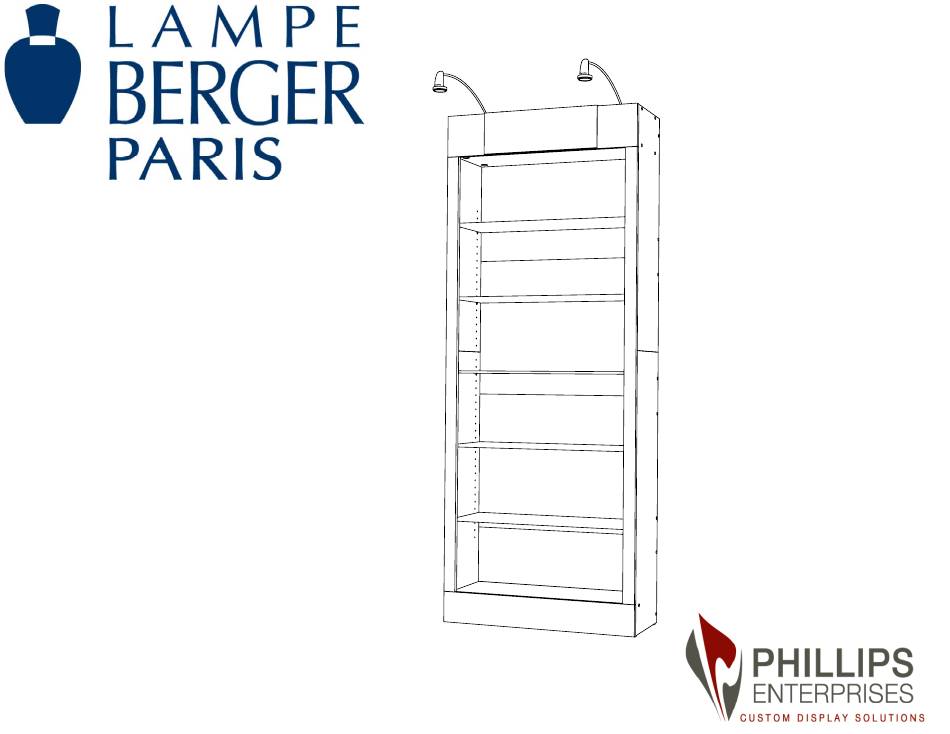

Wall Display w/ glass #9075
ASSEMBLY INSTRUCTIONS
FOR ASSEMBLY ASSISTANCE
PLEASE CALL 1-800-553-1105
M-F 8AM-5PM EST.

Advertisement

loading

Summary of Contents for Lampe Berger 9075

  • Page 1 Wall Display w/ glass #9075 ASSEMBLY INSTRUCTIONS FOR ASSEMBLY ASSISTANCE PLEASE CALL 1-800-553-1105 M-F 8AM-5PM EST.
  • Page 2: Hardware List

    HARDWARE LIST : (H1) CAM PIN (26) PCS. LIGHT KIT (H2) LONG WOOD DOWEL (2) PCS. (H3) CAM DISC (26) PCS. (H4) THREADED CAM PIN (14) PCS. (H5) MINI CAM DISC (14) PCS. (H6) #8 X 5/8 SCREW (6) PCS. (H7) SHORT WOOD DOWEL (3) PCS.
  • Page 3 STEP 1: (H2) Long Wood Dowel (1x) Lay right side panels #1 and #2 on the floor and install 13 (H1) Cam Pins in from the opposite side as shown. Next, insert one (H2) Long Wood Dowel where shown and slide the panels together. (H1) Cam Pin (13x) (H3) Cam Disc (3x) STEP 2:...
  • Page 4 STEP 3: Lower Inside Top panel #5 (with disc holes facing left) onto the pins shown. Secure it using two (H3) Cam Discs. Next, lower Upper Top panel #6 (with disc holes facing right, and edge holes facing forward) onto the installed pins and Secure it with two (H3) Cam Discs.
  • Page 5 STEP 5: (H2) Long Wood Dowel Install six (H1) Cam Pins into Left Lower Side panel #8 from and lower it onto the panels shown. Secure it with six (H3) Cam Discs. Next, insert one (H2) Long Wood Dowel where shown in the side panel. Now, Align Upper Left Side panel #9 with the dowel and slide the panels together.
  • Page 6 STEP 7: (H5) Mini Cam Disc (4x) Locate Kickrail panel #10. Using a phillips screwdriver, install four (H4) Threaded Cam Pins into the holes on the back side of the panel. (Note: be sure to thread them up to the shoulder noted.) Next, insert one (H7) Short Wood Dowel in the center hole in the panel.
  • Page 7 STEP 9: (H6) #8 x 5/8 (4x) Assemble the lights where shown using four large (H6) #8 x 5/8 screws in the forward position holes. Next, line up the transformer with two pre-drilled holes and attach it using two small (H8) #6 x 5/8 screws.
  • Page 8 STEP 11: Place four (H11) Shelf Supports at each desired shelf level. To install shelf, rotate it in as shown and rest it on the shelf pins. Assembly is complete. (H11) Shelf Support (20x)
