Fujitsu UTZ-KXGB Installation Manual

INSULATION KIT FOR HIGH HUMIDITY
INSTALLATION MANUAL
UTZ-KXGA, UTZ-KXGB
• Before installation, be sure to read this installation manual and follow its instructions.
• Be sure to read and use together with the installation manual of main units included with indoor units.
• To guarantee the safety of operation, when attaching the Insulation or installing the Decoration panel or connecting the connector, be
sure to cut off the power supply.
• This Insulation kit doesn't support the installation for Branched duct and Fresh air inlet kit.
Kit components
The following parts are included in the kit.
Name and Shape Q'ty
Ins cabinet A Ins cabinet D
1
Slit
Ins cabinet B Ins cabinet E
1
Slit
Ins cabinet C Ins top plate A
1
Slit Slit
1
Attach the Ins cabinet C onto the outside of the indoor unit.
(PART No. 9379022019-04)
Name and Shape
Name and Shape Q'ty
Ins top plate B
1
(33-25/32 in.)
Slit
Ins top plate C
4
(15-9/32 in.)
388mm
Ins hook
1
Insulation panel B
Ins cabinet C
2

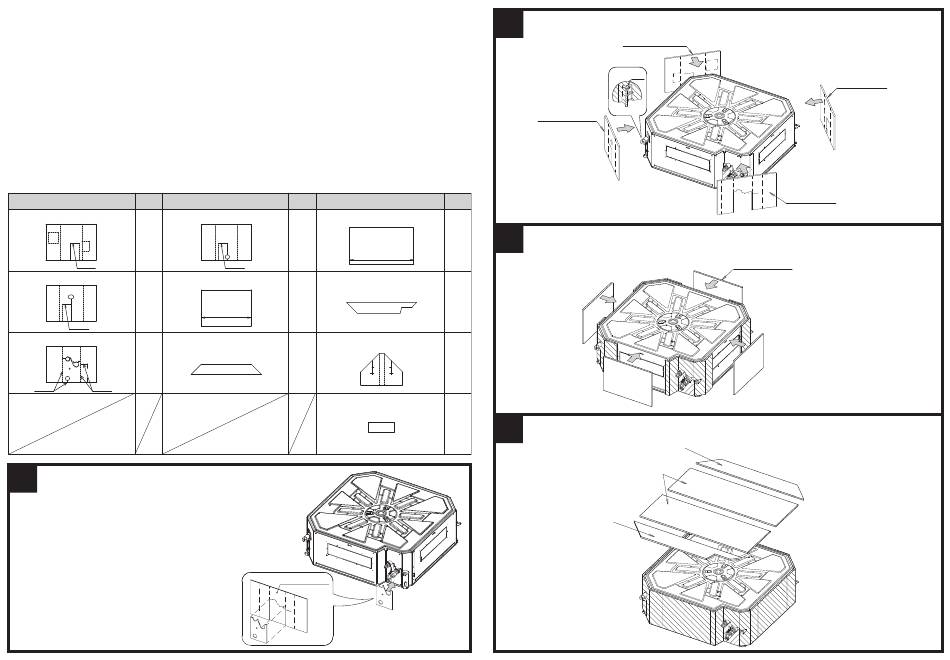

Align the slits of Ins cabinet A, B, C and D to the related hooks, and then attach onto the outside of the indoor unit.
Ins cabinet B
Q'ty
3
Attach the Ins cabinet E onto the outside of the indoor unit.
2
At this time, make sure that there is no gap among the surrounding heat insulator.
858mm
1
4
4
2
Attach the Ins top plate A, B, and C without any gap.
Ins cabinet A
Slit
4 Places
Ins cabinet E × 4
Ins top plate A
Ins top plate B×2
Ins top plate C
Ins cabinet D
Ins cabinet C
