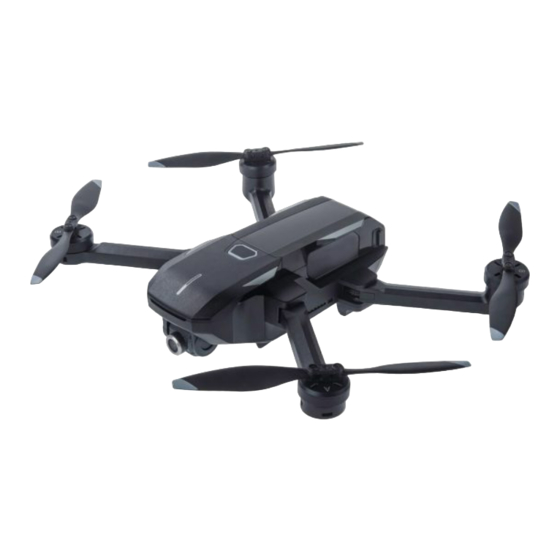

Summary of Contents for YUNEEC MantisQ

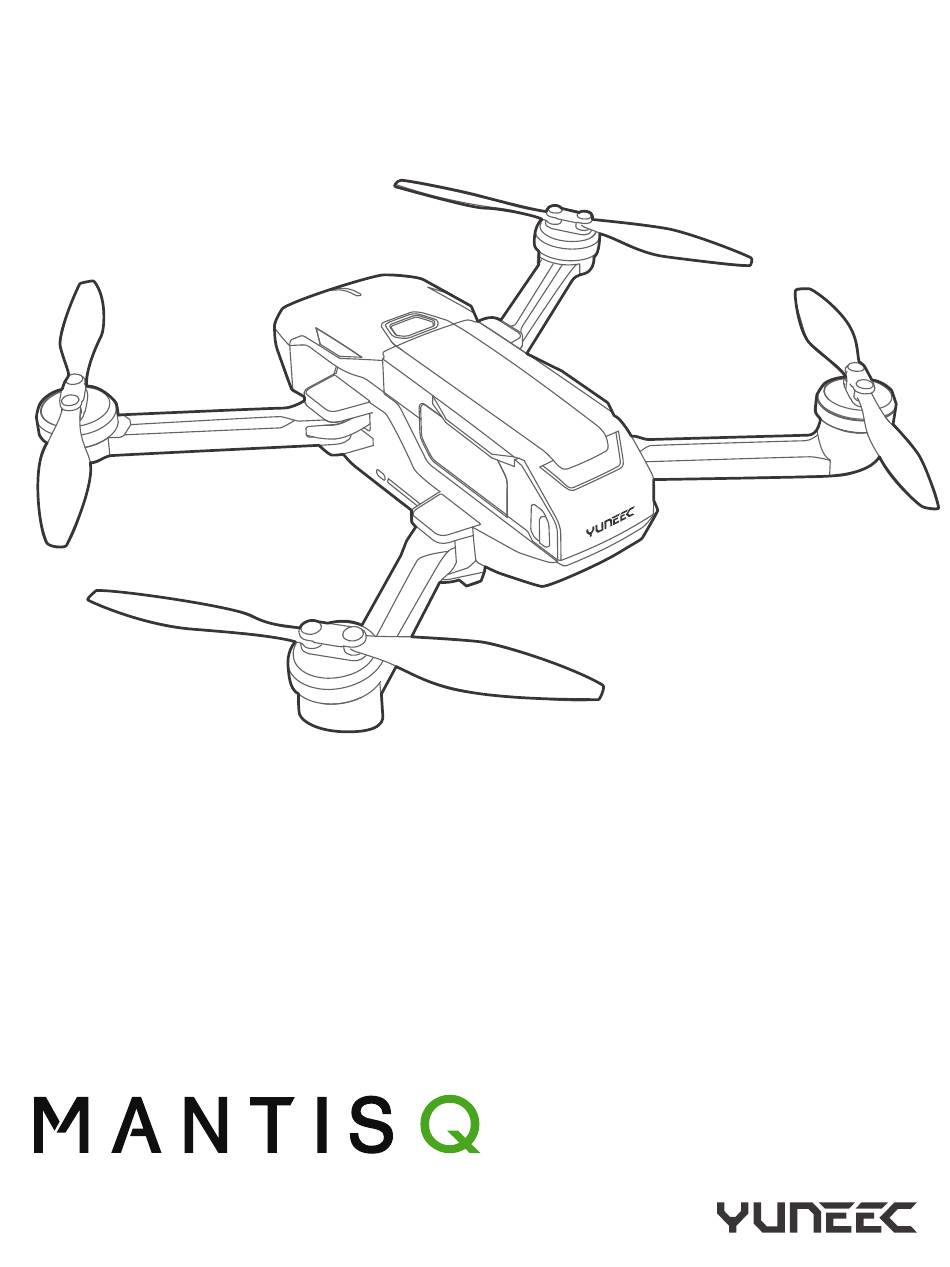

- Page 1 USER MANUAL V1.0...
-
Page 2: Table Of Contents
CONTENT Introduction ................Specifications ..................................-Aircraft ................-Remote Controller ..............-Mobile Device Control ....................-APP ..................-Camera ..................Overview ................... -Aircraft ................-Remote Controller ..........Charging the Remote Controller ..............Preparing the Aircraft ............Charging the Flight Battery ..............SD Card Installation ............ - Page 3 ................Flight Modes ..................-Angle Mode ..................-Sport Mode ..............Advanced Functions ................... -Journey ....................-POI ................-Visual Tracking ................Return to Home ..................-Smart RTH ................-Low Battery RTH ..................-Failsafe RTH ..................Landing ..................-Auto Land ................... -Manual Land ..............
-
Page 4: Introduction
INTRODUCTION Mantis Q – the foldable and convenient travel drone for small and big adventures alike. It listens to you thanks to voice control, and the visual tracking will let it follow you wherever you go. Whether you’re backpacking in Thailand, on a road trip through the South or with your family at the beach, Mantis Q’s energy-efficient design keeps in the air for up to 33 minutes. -
Page 5: Mobile Device Control
Angle Mode: 30° Manual Mode: 20° Max Tilt Angle Sport mode: 30° IPS Mode: 10° Phone Mode: 30° Angle/Manual Mode: 120°/S IPS Mode: 60°/S Max Angular Speed Phone Mode: 120°/S Sport mode: 200°/S Max Service Ceiling Above Sea Level 16404ft (5000m) Operating Temperature Range 0°C-40°C Satellite Positioning Systems... - Page 6 Controllable Range (Pitch) between -90°and +20° Image Sensor 1/3.06 inch CMOS 13M Pixels Effective Pixels Video Stabilization EIS 2-axis stabilized SD Card Capacity CLASS 10 U1/U3 16G Operation Modes Photo, Video Auto/Manual AE; Auto by default 100-3200 (100 by default) 8s-1/8000s (1/60 by default) (for photo mode) Electronic Shutter 1/30s-1/8000s (1/30 by default) (for video mode)
-
Page 7: Overview
OVERVIEW Aircraft Propellers USB Type-C Power Button Micro SD Card Slot Battery Camera Battery Lock Remote Controller Phone Holder Short press the left joystick: Customizable Joystick Camera Custom Settings Slider Short press the right joystick: Brake Photo Button Control Sticks Standard USB Port RTH Button USB Type-C... -
Page 8: Charging The Remote Controller
CHARGING THE REMOTE CONTROLLER Use USB Type-C to charge, approx. 2.5 hours. PREPARING THE AIRCRAFT STEP 1: Unfold the Rear Arms STEP 2: Unfold the Front Arms NOTICE: All arms and propellers must be unfolded before powering on. To fold the Mantis Q, reverse the unfolding instructions. NOTICE: CHARGING THE FLIGHT BATTERY STEP 1: Press the battery locking button and remove the battery. -
Page 9: Sd Card Installation
When the main LED flashes blue slowly and emits a rising tone, the aircraft completes its initialization and boots up successfully. Power on your smart phone, scan the QR code and download the Yuneec Pilot APP on your smart phone. -
Page 10: Binding
1. Scan the QR Code NOTICE: Please turn on the WiFi of your smart phone before scanning the QR code. STEP 1: Launch Yuneec pilot app, and tap the icon [ ] whenever you see this icon in the App. Method A... -
Page 11: Manual Connection
4-xxxxxxx Method B: Binding the Smart Phone to the Aircraft Launch Yuneec Pilot app, and follow on screen instructions to connect smart phone to the aircraft. NOTICE: When the smart phone is connected to the aircraft by following the App instructions, the smart phone... -
Page 12: Compass Calibration
Step 1: Press the “DISCONNECTED” button. Step 2: Select the “Mobile phone” option. Step 3: Follow instructions on the app, and tap the “Next” button. Step 4: Tap “Manual Connection” option, and the system will jump to the next page. Step 5: Then wait for the Wi-Fi of the aircraft appears on the screen (the Wi-Fi name starts with "Mantis"). - Page 13 Step 1: Press the “START” button, and rotate the drone as the animations shown in the App. DEVICE CONNECTED DEVICE CONNECTED COMPASS CALIBRATION COMPASS CALIBRATION Rotate the drone horizontally for a few seconds until you hear Do not calibrate compass inside parking structures, two beeps or near large metallic objects! START...
-
Page 14: Placement Before Takeoff
PLACEMENT BEFORE TAKEOFF 1. Outdoor Flying WARNING: If you operate the Mantis Q outside, please always place it in open areas (approximately 10000 square feet/930 square meters or more) that are free from people, vehicles, trees and other obstructions. Never fly near or above crowds, airports or buildings. -
Page 15: Direction Control
DIRECTION CONTROL Move the control sticks as below to control the direction of the Mantis Q. The default flight control is known as Mode 2. Forward Down Back Left Stick Right Stick Rotate Rotate Left Right Left Right OPTIMAL TRANSMISSION RANGE The signal between the aircraft and the remote controller is most reliable when the antennas are positioned in relation to the aircraft as below. -
Page 16: Taking Photos And Recording Videos
TAKING PHOTOS AND RECORDING VIDEOS The remote controller seamlessly integrates control of the camera, so you can easily pan left and right, take still photos and start/stop video recording using the corresponding buttons located on top. To Take A Still Photo Press the Photo Button [ ] on the right side of the remote controller, or tap the photo taking icon in the App to take a photo. -
Page 17: Instant Social Sharing
Step 4: You can say commands to activate the voice DEVICE CONNECTED control function. When your voice command is detected by the system, the microphone icon will turn from [ ] to [ ]. and the aircraft can perform your commands. NOTICE: If your voice command is not detected by the system in one minute, the voice control function... -
Page 18: Flight Modes
FLIGHT MODES Angle Mode When the Mode Switch is in the left position, the aircraft is in Angle Mode.Angle mode works best when the GPS signal is strong. The aircraft utilizes GPS to locate itself, stabilize, and navigate between obstacles. The advanced functions such as Visual Tracking, POI, other supported applications. -
Page 19: Visual Tracking
POI function allows the pilot to select a subject they IN FLIGHT Angle would like to orbit and have Mantis Q orbit that subject autonomously.Tap [ ] on the left column of the screen and choose the POI function. Fly the aircraft to a Radius desired point of interest, move the slider bar on the right side of the screen to set the distance and velocity under... -
Page 20: Smart Rth
Smart RTH If the GPS signal is sufficiently strong, Smart RTH can be used to bring the aircraft back to the Home Point. Smart RTH is initiated either by tapping [ ] icon in the App or by pressing and holding the RTH button on the remote controller. -
Page 21: Led Status Indication
LED Status Indication The color of the icon indicates the color of the LED. indicates the LED flashing rapidly. Front Arms LED indicates the LED flashing slowly. indicates the LED solid on. Rear Arms LED Battery Status Indicators WiFi Status Indicator STATUS Front Arms LED Rear Arms LED... -
Page 22: Firmware Update
Reset All Parameters DISCLAIMER 昆山优尼电能运动科技有限公司 （ Yuneec International (China) Co., Ltd. ） shall not be held liable for any damage, injury or for use of the product in violation with legal regulations, especially in the following circumstances: Damage and/or injury as well violation of legal regulations resulting from a failure to comply with the operating instructions or the instructions at www.yuneec.com, product information, user manual and other legally binding... -
Page 23: Collection And Processing Of Data
Yuneec. We may also collect information which user send to other users, and the recipi- ents and senders of such information. -
Page 24: General Safety Precautions And Warnings
you assume all risks associated with LiPo batteries. If you do not agree with these conditions please return the complete product in new, unused condition to the place of purchase immediately. You must always charge the LiPo battery in a safe, well-ventilated area away from flammable materials. Never charge the LiPo battery unattended at any time. -
Page 25: Camera Usage Warnings
(including, but not limited to, chargers, rechargeable batteries, etc.). CAMERA USAGE WARNINGS NOTICE For the latest product information, please check our official website: www.yuneec.com. WARNING Do not expose the lens of the camera to extreme light sources. -
Page 26: Rf Exposure Warning
5G: 5470-5725 MHz(27dBm) EU Compliance Statement Hereby, Yuneec International (China) Co., Ltd. declares that this device is in compliance with the essential requirements and other relevant provisions of the RED Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet address: http://yuneec/de-downloads... -
Page 27: Customer Service
Customer Service Manufacturer: 昆山优尼电能运动科技有限公司 （ Yuneec International (China) Co., Ltd. ） Address: No.388 East Zhengwei Road, Jinxi Town, Kunshan, Jiangsu 215324, China Distributor: Shanghai Yuneec Digi- Tech Co., Limited Address: 6F , CaoHeJing Kehui Tower, No.1188, Qinzhou North Road, XuHui District, China Tel.: +86 400 8207 506... - Page 28 2018.9...
