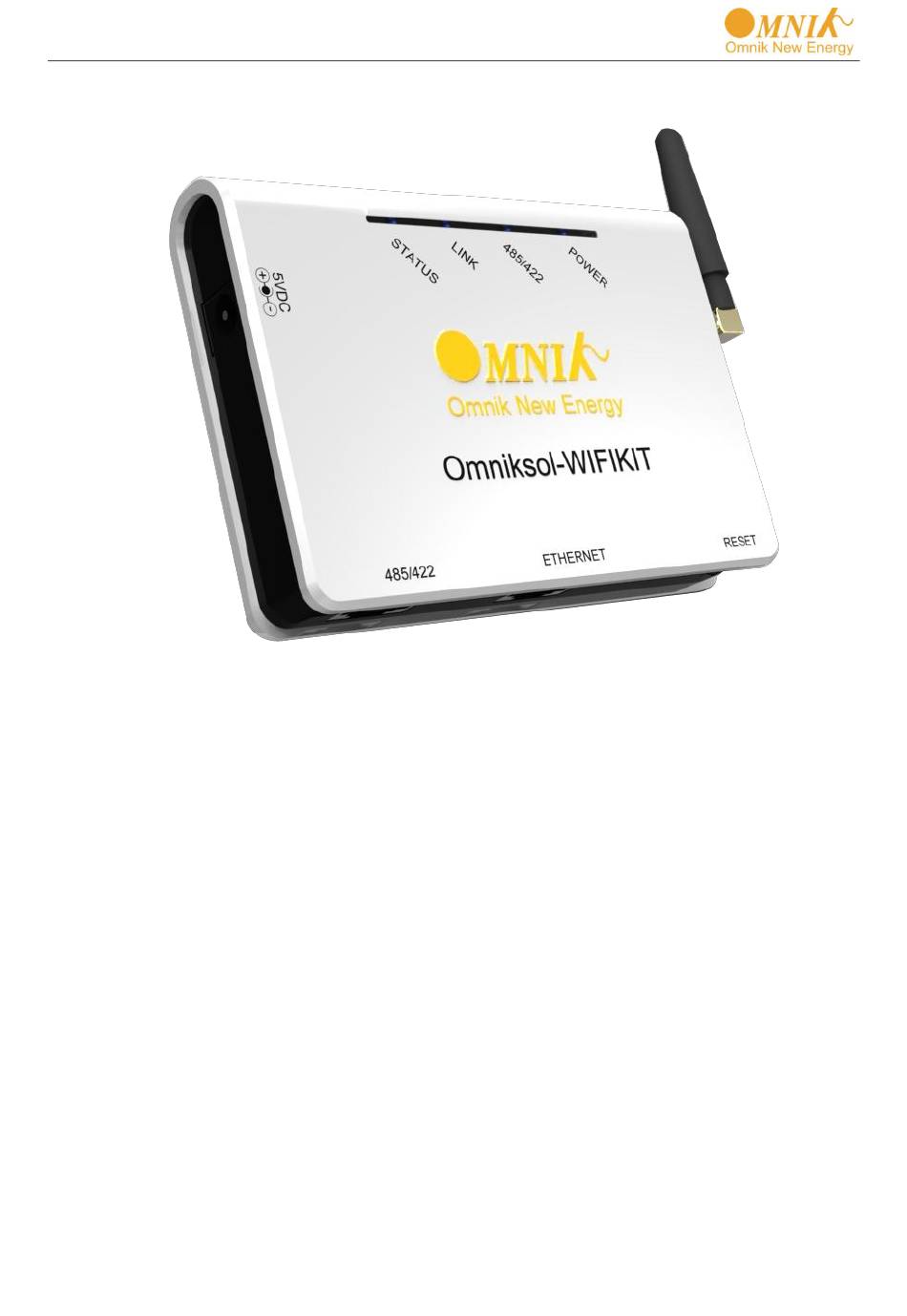

  • Page 1 User Manual V2.6 Omniksol –WIFIKIT User Manual Omnik New Energy Co., Ltd.
  • Page 2 Overview of WIFIKIT Function Omniksol-WIFIKIT is developed by Omnik as an external communication monitoring device, which integrates WiFi device for users and provides a wireless monitor function. By connecting with inverters through RS485 interface, the Kit can receive information from inverters and realize cascade of inverters.
  • Page 3: Table Of Contents

    Catalog Communication cable connection ......................2 Inverter with RJ45 connector ......................2 1.1.1 Cable connector preparation ....................2 1.1.2 Installation ..........................5 Inverter without RJ45 connector ....................6 1.2.1 Disassembly ..........................6 1.2.2 Installation ..........................7 Omniksol –WIFIKIT User Manual ......................9 Unpack ............................
  • Page 4: Communication Cable Connection

    1 Communication cable connection Inverter with RJ45 connector For Omnik inverters Omniksol-13k/17k/20k-TL, which has integrated RS485 card, the cable connection of inverter is as following method. 1.1.1 Cable connector preparation In order to satisfy IP65 level, the communication cable needs to be prepared particularly. A.
  • Page 5 B. Put SEAL inside of HOUSING as Picture 1.1.2. SEAL HOUSING Picture 1.1.2 C. Put communication cable through Sealing Nut, SCREW, SEAL, HOUSING and don’t tighten the Sealing Nut. Picture 1.1.3 D. Put the cable terminal into the plug in right order as Picture 1.1.4 Line sequence of T568B 1.
  • Page 6 Clamp plug by a cable clamp as Picture 1.1.5 Picture 1.1.5 F. Put the plug into HOUSING with GASKET as Picture 1.1.6. Picture 1.1.6 G. Tighten Sealing Nut with torque 3Nm, here one connector is prepared. As Picture 1.1.7. Picture 1.1.7 H.
  • Page 7: Installation

    1.1.2 Installation After the connector preparation, next is to connect the cable to inverter. Following steps shows the installation method. First open the cap of RS485, there is a RJ45 connector inside. Picture 1.1.8 Then put the plug into RJ45 connector, tighten the SREW to inverter with torque 3Nm. Picture 1.1.9 Complete the other connection by the same method.
  • Page 8: Inverter Without Rj45 Connector

    Inverter without RJ45 connector For Omnik inverters Omniksol-1k/1.5k/2k-TL, Omniksol-3k/4k/5k-TL, which has no integrated RS485 card, the wire connection of inverter is as following method. 1.2.1 Disassembly Picture 1.2.1 Unscrew the four screws on the interface panel with the screwdriver as shown in Picture 1.2.1 and keep the screws aside.
  • Page 9: Installation

    Picture 1.2.3 Unscrew the two-holed water-proofing connector from the interface panel as shown in Picture 1.2.2, 1.2.3. 1.2.2 Installation Pick out the net cable and the water-proofing connector from the package and follow the Picture: A. Put the net cable in from the gap B.
  • Page 10 Picture 1.2.5 D. Finish the installation, as Picture 1.2.6: Picture 1.2.6...
  • Page 11: Omniksol -Wifikit User Manual

    2 Omniksol –WIFIKIT User Manual Unpack After unpacking the box, please check the parts according to the below list. Contact the manufacturer immediately if you find any damage, missing or wrong model of the device or any parts. Serial Name Quantity Model PV data collector...
  • Page 12: Horizontal Data Collector Installation

    2.2.2 Horizontal data collector installation Lay the data collector on a flat surface. Note1: The protection level of PV data collector WIFIKIT is IP21. It cannot be installed outdoors or in the conditions of damp, dusty or with corrosive steam. Direct sunlight is also avoided, as well as shock and pressure defense.
  • Page 13: Steps Of Connection

    Line sequence of T568B 1. orange with white 2. orange 3. green with white 4. blue RJ45 plug 5. blue white white 6. green 7. brown with white 8. brown Picture 2.3.2 Pin NO. RS485 RS422 2.3.2 Steps of connection Both ends of the connecting wire are RJ45 network cable connector,all the line sequence are T568B.
  • Page 14: Wifi Settings

    6) Connect the power supply adapter to data collector, then insert into the socket Picture 2.3.3 Note: Must cut off the power supply before connection. Please make sure that all the connections are completed, and then power the inverters and PV data collectors. Otherwise may cause personal injury or equipment damage.
  • Page 15 Picture 2.4.2 3) Open wireless network connection and click View Wireless Networks Select wireless network of the data logging module, no passwords required as default. The network name consists of AP and the serial number of the product. Then click Connect.
  • Page 16 Picture 2.4.3 Picture 2.4.4 Connection successful...
  • Page 17 Notice: If AP_ (serial number of product) is not available in the wireless network list, there may be problems in the connection or setting of data logging module. Please check if the WiFi had installed ok, and inverter has been powered on.
  • Page 18 Picture 2.4.6 Click Wizard to start Picture 2.4.7 Choose Wireless Connection...
  • Page 19 Picture 2.4.8 Click Refresh to search available wireless networks, or add it manually input...
  • Page 20 Picture 2.4.9 Next Select the wireless network you need to connect, then click Notice: ① If the signal strength (RSSI) of the selected network is <10%, which means unstable connection, please adjust the antenna of the router, or use a repeater to enhance the signal. ②...
  • Page 21 Picture 2.4.10 Enter the password for the selected network, then click Next Picture 2.4.11 Select Enable to obtain an IP address automatically, then click Next Notice: ① Turn off the firewall of the router ② Make sure the DHCP function of the router is enable...
  • Page 22 Picture 2.4.12 If setting is complete, the above page will display. Click OK to restart. Picture 2.4.13 If setting is complete, the above page will display. After your WiFi-Kit set OK and get IP address from your router for example: 192.168.16.89. (You may see the IP address from “Status”...
  • Page 23 Picture 2.4.14...
  • Page 24: Wired Network

    You may also add your domain name of Wi-Fi-Kit to easy access according below picture, after you set OK, input http://wifi, you may also access the related page Picture 2.4.15 Now we have finished the network setting, then you may login www.omnikportal.com browse your data.
  • Page 25: Debug

    Picture 2.4.16 Debug LED indicating lamp Introductions Picture 2.5.1...
  • Page 26 Name of LED Status Description of status Light The power is normal POWER Dark The power is abnormal Light The connection between collector and inverter is normal 485\422 Flashing Data is transferring between collector and inverter Dark The connection between collector and inverter is abnormal STATUS LINK Connecting WiFi...
  • Page 27: Register On Monitoring Website

    Confirm the status of inverter and ensure it’s working condition is normal Light Flashing In the AP Mode Set network settings Confirm if the antenna is loose or fall off. If so, please screw it. Check if the WIFI wanted Collector is not is covered.
  • Page 28: Click Register Button To Go To Registering Interface For New Account

    2.6.1 Click Register button to go to registering interface for new account Click and enter the register interface Picture 2.6.1 2.6.2 Fill in user’s information as required choose“Owner” Click and enter the configure interface Picture 2.6.2 Remarks: please read the <Omnik service agreement >carefully, the enclosure is the cost list for all the countries, please choose your operators Owner means the final user “*”...
  • Page 29 “Owner” Account Click and choose the aim Click”OK”save the pic Fill in WiFi Kit’s S/N code, see pic 2.6.4 Click the map, choose the installation site Select, and choose it to be the share mode, other user can see Finish the register Picture 2.6.3...
  • Page 30: Login The Pv Monitoring System To Manage The Power Station

    Picture 2.6.4 Login the PV monitoring system to manage the power station After the successful register and account activation,open the login interface as below picture 2.7.1, input the correct email and code and enter the PV monitoring system, then you can monitor and manage the power station.
  • Page 31 “Owner” User Interface Power station list Picture 2.7.2 Choose your station and enter Edit or delete the case Picture 2.7.3 List of power stations Enter the configure “company account” Not yet open Back to 2.7.2 Enter the sharing case interface interface Add one case under your account,...
  • Page 32 Change case Case info search Real-time power and generated energy switchover Print current figure Power station info Energy saving Picture 2.7.5 Main interface of power station...
  • Page 33 Internal temperature Latest data collecting time Picture 2.7.6 Real Time Interface Choose the aim Parameter inverter options Picture 2.7.7 History Interface...
  • Page 34 Click , turn to picture 2.7.7 Picture 2.7.8 Alert Interfaces The interface same as picture 2.7.3 Picture 2.7.9 System Setting Interface...
  • Page 35: Iphone & Ipad Application

    Picture 2.7.10 System Setting Interface IPhone & iPad application After registration of the power station, you can input the key words: Omnik, solar, inverter, PV, energy ,plant, monitor at the app store, then you can download the Omnik solar (iPhone) and Omnik Solar HD(iPad) at app store.
  • Page 36 Picture 2.8.1 1. Log in interface 2. Connect WiFi kit ok 3. Setting page 4. Inverter information...
  • Page 37: Contact

    3 Contact Suzhou Headquarter Xinghu Road No.218 bioBAY Park A4-414 215123 Suzhou China Tel: +86 512 6295 6676 Fax: +86 512 6295 6682 Email: info@omnik-solar.com www.omnik-solar.com Omnik German Service Center Omnik GmbH Forsthausstr.8A 65479 Raunheim Tel:+49 (179) 9762 654 Service line Tel: +86 512 6295 6676 Fax: +86 512 6295 6682 Email:...
