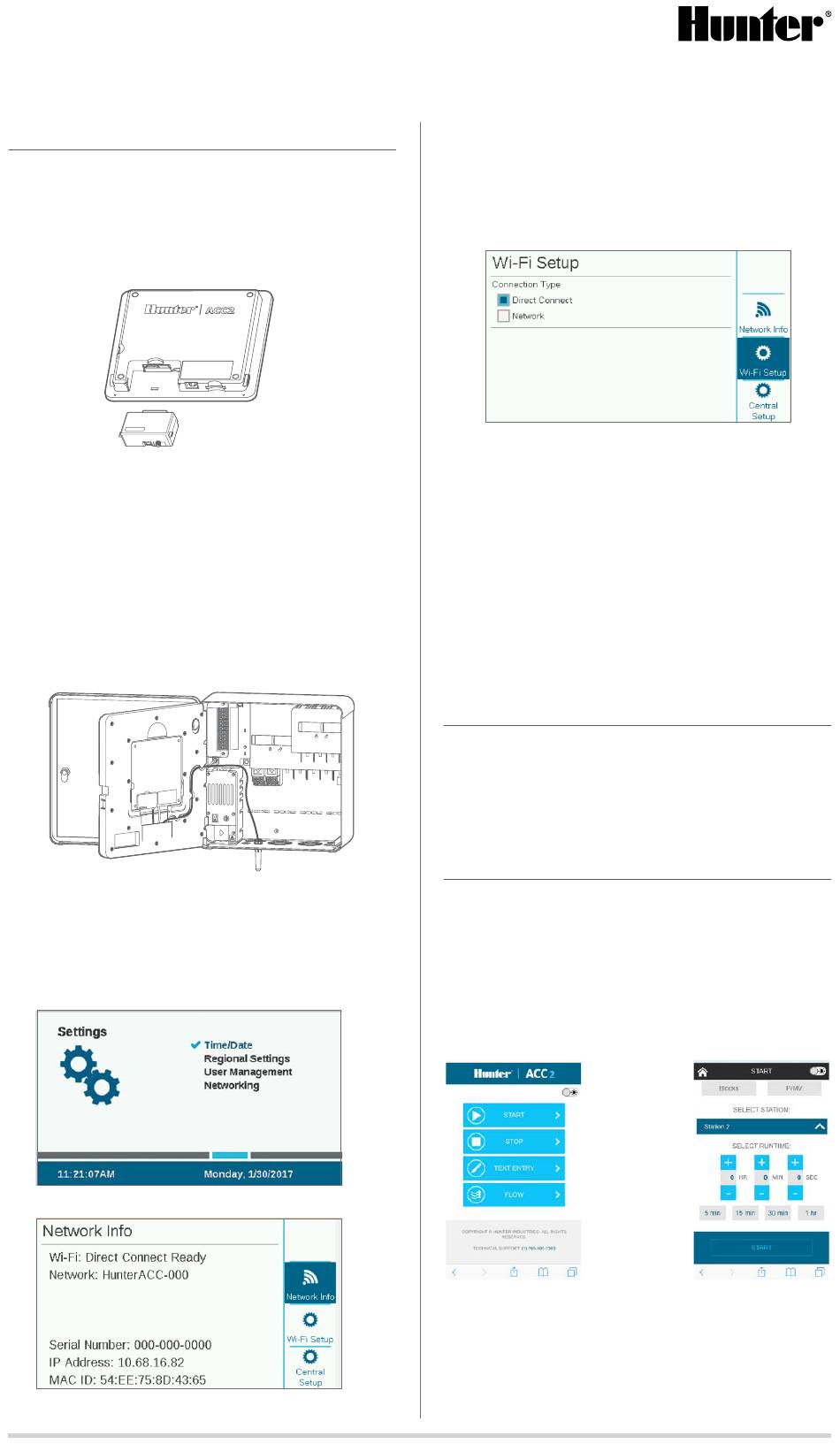

Hunter A2C-WIFI Installation Manual

A2C-WIFI
Internal WiFi Module for ACC2
INSTALLATION
Turn controller power off before installing the module.
Remove the controller facepack to expose the communication
slot on the bottom. It is not necessary to disconnect
the facepack cable. Remove the dust cover from the
communication slot. Insert the Wi-Fi module completely
into the slot, pins first, until the lock clicks into place.
Connect the antenna cable to the gold threaded connection
on the module. Install the antenna holder into one of the
smaller conduit openings in the bottom of the controller, so
that the antenna is fully exposed below the metal box. Firmly
hand tighten the nut on the inside of the controller to secure it.
Route the antenna cable from the module to the holder, so that
it has adequate slack to open the door, and will not be pinched
when closing the door. Insert the antenna into the holder.
Do not allow the metal connectors in any part of the antenna
cable to contact metal or earth ground when powered. This
will permanently damage the Wi-Fi module.
Restore power to the controller. If it is necessary to remove
the module after installation:
• Turn controller power off.
• Press the spring-loaded locking lever on the module.
• Pull straight down to remove it.
INSTALLATION GUIDE
Use the dial to go to Settings, Networking. Verify the
address of the controller by viewing Network Info screen.
Press soft key for Wi-Fi Setup. Check the box for Direct
Connect. (The Central Setup function is not currently
active.) Open mobile device settings for Wi-Fi and search
for HunterACC-xxxx (where –xxxx is the unique four
digit number shown at Network Info), and connect.
Open browser.
Enter 192.168.1.3 (also shown on the Networking screen).
In a moment, the login screen should appear.
If there are no entries in the controller's User Management
table, the user ID is "hunter" (lowercase). The PIN is "0000."
If the User Management table has entries (Settings, User
Management), the user ID and PIN must match a valid
user ID and PIN in the User Management table.
If User Management is enabled, the user ID and PIN
must match a valid user ID and PIN in the controller's
User Management menu.
The ACC2 page will appear in a few seconds after a valid login.
CONTROLS
The Home button will return to the top level menu when
you have selected Start, Stop, Text Entry, or Flow.
There is a contrast button in the top right corner of the display
that will switch between light and dark backgrounds for day or
night situations.
START
Select Start to operate any of the following immediately:
• Station
• Block
• Program
• PMV
Select the item, specify the run time, and press the
Start button.
