SiC413 Reference Board User's Manual
4 A, 26 V Integrated Synchronous Buck Regulator
THE CHIP
PRODUCT SUMMARY
Input Voltage Range
Output Voltage Range
Operating Frequency
Continuous Output Current
Peak Efficiency
Highside/Lowside R
DS_ON
Package
DESCRIPTION
The SiC413 is an integrated, dc-to-dc power conversion
solution with built-in PWM-optimized high- and low-side
n-channel MOSFETs and advanced PWM controller. The
SiC413 provides a quick and easy to use POL voltage
regulation solution for a wide range of applications. Vishay
Siliconix proprietary packaging technology is used to
optimize the power stage and minimize power losses
associated with parasitic impedances and switching delays.
The co-packaged Gen III TrenchFET power MOSFETs
deliver higher efficiency than lateral DMOS monolithic
solutions.

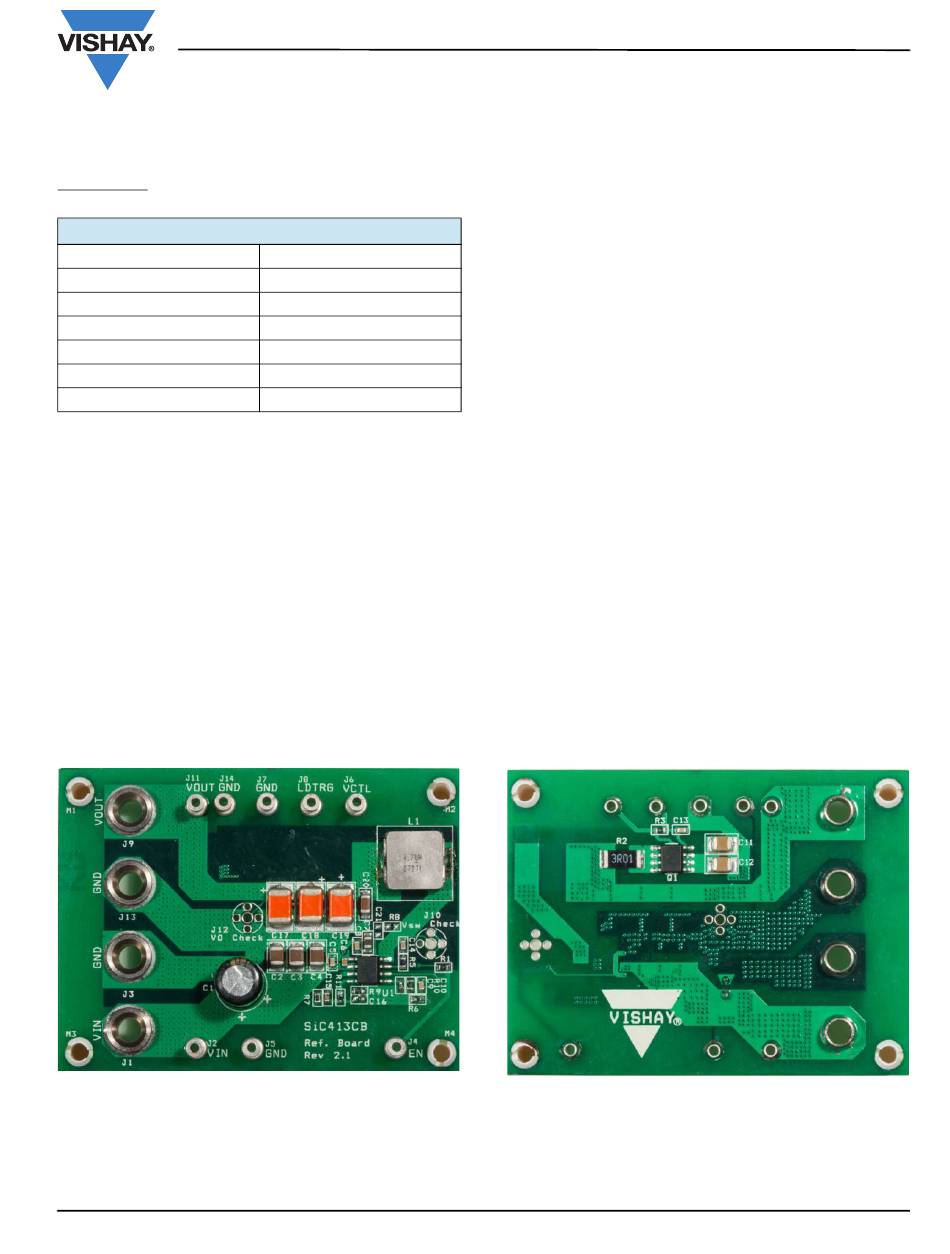

REFERENCE BOARD PHOTOS
Figure 1. Top of the PCB
Document Number: 65172
S09-1350-Rev. A, 20-Jul-09
4.75 V to 26 V
0.6 V to 13.2 V
500 kHz
4 A
93 %
35 mΩ/19 mΩ
SO-8
FEATURES
• 4.75 V to 26 V input voltage range
• Integrated PWM controller and Gen III trench MOSFETs
• Built-in bootstrap diode
• 500 kHz fixed switching frequency
• Internal soft start
• Break-before-make operation
• Integrated current sense
• Cycle by cycle overcurrent protection
• Output over voltage protection
• Thermal shutdown
• Quick and easy single chip converter
•
SO-8 package
APPLICATIONS
• LCD TV, set-top box and DVD player
• Desktop PC and server
• Add-in graphic board
• Memory, FPGA and µP device power supplies
• Point of load dc-to-dc conversion
• Telecom and networking equipment
Figure 2. Bottom of the PCB
SiC413DB
Vishay Siliconix
www.vishay.com
1
