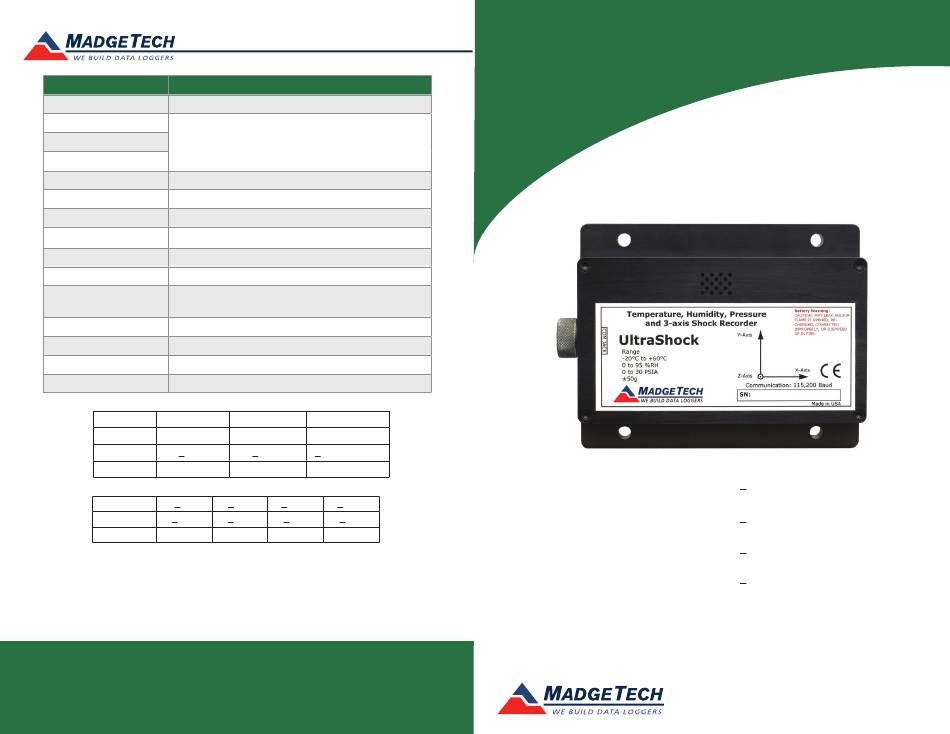

MadgeTech UltraShock-5 Product User Manual

Description
Channels Shock (3 axes), Temperature, Humidity, Pressure
Range
Resolution
Accuracy
Sample Rate
Reading Rate
Memory
Required Interface Package
Baud Rate
Typical Battery Life
Operating Environment
Material
Dimensions 3.5 in x 4.4 in x 1 in (89 mm x 112 mm x 26 mm)
Weight
Approvals
*Acceleration Range, Resolution and Accuracy
Channel Temperature
Range -20 °C to +60 °C
Accuracy +0.5 °C
Resolution 0.1 °C
*Shock Acceleration Range, Resolution and Accuracy
Shock Range +5 g
Accuracy +0.2 g
Resolution 0.01 g
Battery Warning
WARNING: FIRE, EXPLOSION, AND SEVERE BURN HAZARD. DO NOT SHORT CIRCUIT, CHARGE,
FORCE OVER DISCHARGE, DISASSEMBLE, CRUSH, PENETRATE OR INCINERATE. BATTERY MAY
LEAK OR EXPLODE IF HEATED ABOVE 60 °C (140 °F).
Specifications subject to change.
See MadgeTech's terms and conditions at www.madgetech.com
MadgeTech, Inc.
6 Warner Road
Phone 603.456.2011
www.madgetech.com
UltraShock
*See Tables Below
512 Hz
64 Hz up to 5 minutes
174,762/channel
IFC200
115,200
7 days
-20 °C to +60 °C (-4 °F to +140 °F),
0 %RH to 95 %RH (non-condensing)
Anodized aluminum
12 oz (341 g)
CE
Humidity Pressure
0 %RH to 95 %RH 0 to 30 PSIA
+3 %RH +1 %FSR @ 25 °C
0.1 %RH 0.002 PSIA
+50 g +100 g +250 g
+1.0 g +2.0 g +4.0 g
0.03 g 0.05 g 0.2 g
Warner, NH 03278
l
Fax 603.456.2012
l
info@madgetech.com
l
DOC-1067035-00 REV 12 2014.11.25
Product User Guide
UltraShock-5
Temperature, Humidity, Pressure, and Tri-axial +5g, Shock Data Logger
UltraShock-50
Temperature, Humidity, Pressure, and Tri-axial +50g, Shock Data Logger
UltraShock-100
Temperature, Humidity, Pressure, and Tri-axial +100g, Shock Data Logger
UltraShock-250
Temperature, Humidity, Pressure, and Tri-axial +250g, Shock Data Logger
UltraShock
Red 485
Dark Blue Pantone 289
Light Blue 58% of Pantone 289
