Summary of Contents for Pinetron PWT-P100

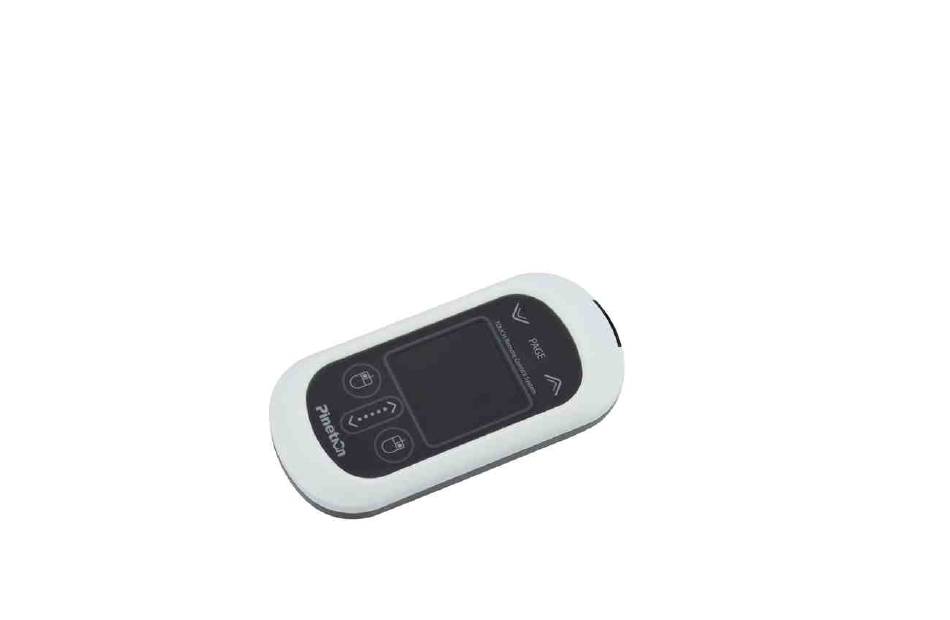

- Page 1 PWT-P100 Wireless Touch Pad Instruction V.1.0...
- Page 2 CE Warning !Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. EN Test Regulation Version ETSI EN 300 328 V1.7.1 ETSI EN 301 489-1 V1.8.1 ETSI EN 301 489-17 V2.1.1 EN 60950-1:2006+A11:2009 CAUTION: Any changes or modification in construction of this device which are not expressly approved by the party responsible for compliance could void the user's...
- Page 3 1. Contents and Requirements Touch Remote Mouse is wireless remote control system combined with wireless PC and digital device. It provide the various solutions such as the office & educational device and electronic equipment at anywhere within 10m of its receiver. ⑦...
- Page 4 2. Installation and Pairing of Wireless Touch Pad Connecting the USB Dongle and Touch Pad by wireless is Pairing. 2.1 Installation ⑴ Insert the 2 AAA batteries that came with +/- direction on the other side. ⑵ Plug the receiver into any available USB port on your computer or digital device. It will automatically detect the receiver.
- Page 5 3. How to use Wireless Touch Pad 3.1 Mouse function ⑴ Mouse Left/Right Key It works same as function of Left/Right Key of Mouse. If touch the Left Key (Double Touch), then this works as Click the Mouse Left (Double Click). If touch the Right Key, then this works as Click the Mouse Right ⑵...
- Page 6 SPECIFICATION Operation Temperature -10 ~ 50 degree Over 10m in the open space, the receive sen Service coverage Upto 10m sibility might be weaker and mouse control may be malfunctioned. Operating Voltage 3V DC AAA type Battery x 2 PCS Mouse Operation 18 mA Electrocity Consumption...
- Page 7 Wireless Specifications 2.403 ~ 2.475 GHz Operation Frequency Modulation GFSK (Gaussian Frequency Shift Keying) Channel 0dBm Output(dB) Oscillation mode crystal (16MHz)
