iLumTech BlueBridge User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User guide
BlueBridge

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BlueBridge and is the answer not in the manual?

Questions and answers

Summary of Contents for iLumTech BlueBridge

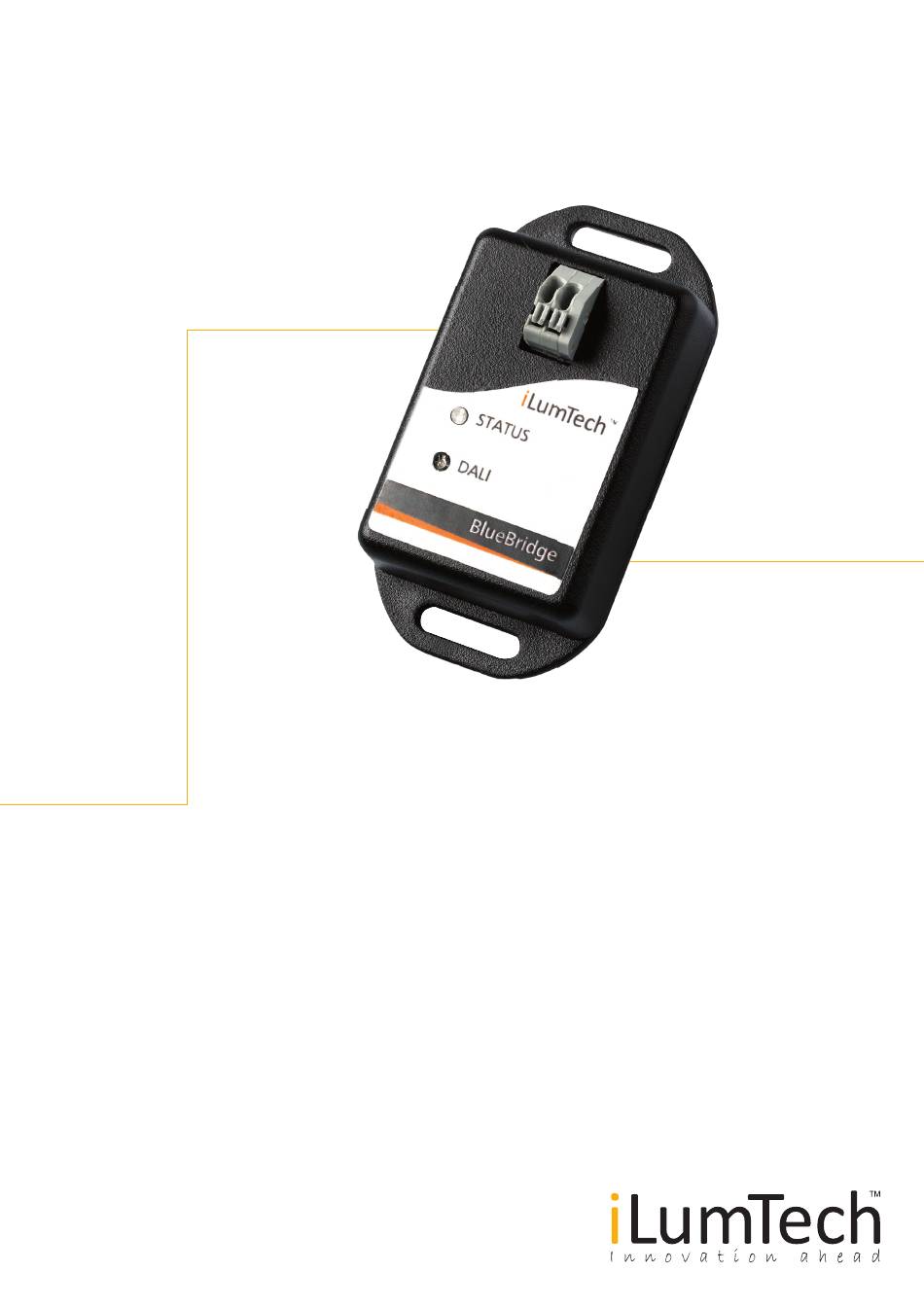

  • Page 1 User guide BlueBridge...

  • Page 2: Table Of Contents

    DALI Ambient Sensor Add. Ambient Sensor to app. To ensure correct functionality, BlueBridge requires Once the DALI bus is ready, you can connect BlueBridge Add. Ambient Sensor to Group connection to an external DALI power supply with to the DALI network. If the DALI bus correctly powered...

  • Page 3: Bluebridge Properties

    BlueBridge requires establishment of a connection for proper communication – therefore, only one device can access BlueBridge at the same time. When connection is established, other Bluetooth SmartReady devices will not be able to find BlueBridge until the connection is closed.

  • Page 4: Mobile Application

    The BlueBridge application for Android and iOS is available to download from Google Play Market and the Apple App Store free of charge. The current application version supports Android 4.4 or higher. Mobile application Connection status button Close button 3.1 Connection to BlueBridge...

  • Page 5: Favourites Menu

    In the Favourites menu, you can see all the BlueBridges already added as favourites. You can connect to a specific BlueBridge by clicking on it. If you want to edit the name the BlueBridge device drag and drop its name to the edit icon (left).

  • Page 6: Main Screen

    3.3 Main screen The main screen contains group icons for simple access to group control. In the top-right corner, there are a status icon and a connection icon. The connection icon shows the current connection status – connected or not connected.

  • Page 7: Creating Luminaires

    DALI network. During this step, the app will discover the FW version of the connected BlueBridge. If the FW is not up-to-date, you will see a notice saying that there is a new version available.

  • Page 8: Creating Groups

    If you have created devices on multiple BlueBridges, the next step requires that you select which BlueBridge the group will relate to – this step will be skipped if there is only one DeeBridge with created devices as this will be selected automatically. Next, you need to select the type of group –...
  • Page 9 If you prefer scene control, you can switch to scene mode (by sliding according to the arrows at the bottom of the screen). You can choose from predefined scenes or create custom ones. You can create your custom scenes by clicking on the ‘Edit Scenes’...

  • Page 10: Status Function

    3.6 Status function The status function is a feature included in the latest FW update. To enable this feature, upgrade your BlueBridge device to FW version 2.0. BlueBridge periodically checks the status of each DALI device. The results of the check are sent to the application once per minute.

  • Page 11: Timers

    When all commands have been added to the timer sequence, the timer is loaded and stored inside the BlueBridge device by pressing ‘Accept’. The Company reserves the right to change any product specifications without prior notification.
  • Page 12 Human Centric sequences have smooth transitions between time steps. There must be a minimum of 2 time steps with each sequence in order to create a transition (BlueBridge internally calculates the linear interpolation between time steps). The defines values of each time are only reached as the specific time.

  • Page 13: Settings

    In case that password are forgot or lost you can reset them in the default state, but you have to have physical access to your BlueBridge. Click on the Reset password button in the connection screen when you are not able to connect, or Reset password button in the settings if can connect but you cannot unlock the BlueBridge.

  • Page 14: Control Devices Dali Input Unit

    Control Devices DALI Input Unit 4.1 Adding Input Unit to Application You can add any control device in the same way as normal luminaires. But for Input unit there is no way of identification by light indicator. Therefore we created a simple function for selecting correct Input unit.

  • Page 15: Control Devices Dali Ambient Sensor

    Control Devices DALI Ambient Sensor 5.1 Adding Ambient Sensor to application You can add Ambient Sensor the same way as any other luminaire. There is no special setup for it in device wizard. 5.2 Adding Ambient Sensor to Group DALI Ambient Sensor can be added to group in the same way as Input Unit - on third page called ‘Control devices’.

  • Page 16: Adding Lm Sensor To Application

    Control Devices DALI LM Sensor 01 6.1 Adding LM Sensor to application You can add LM Sensor the same way as any other luminaire or sensor. There is no special setup for it in device wizard. 6.2 Adding LM Sensor to Group In the same way as any other control device, LM Sensor 01 can be added to group on the third page ‘Control devices’.
  • Page 17 OMS, a.s. Dojč 419 Dojč 906 02 Slovakia Email: info@ilumtech.eu www.ilumtech.eu...
