Summary of Contents for eKey CV WIEG

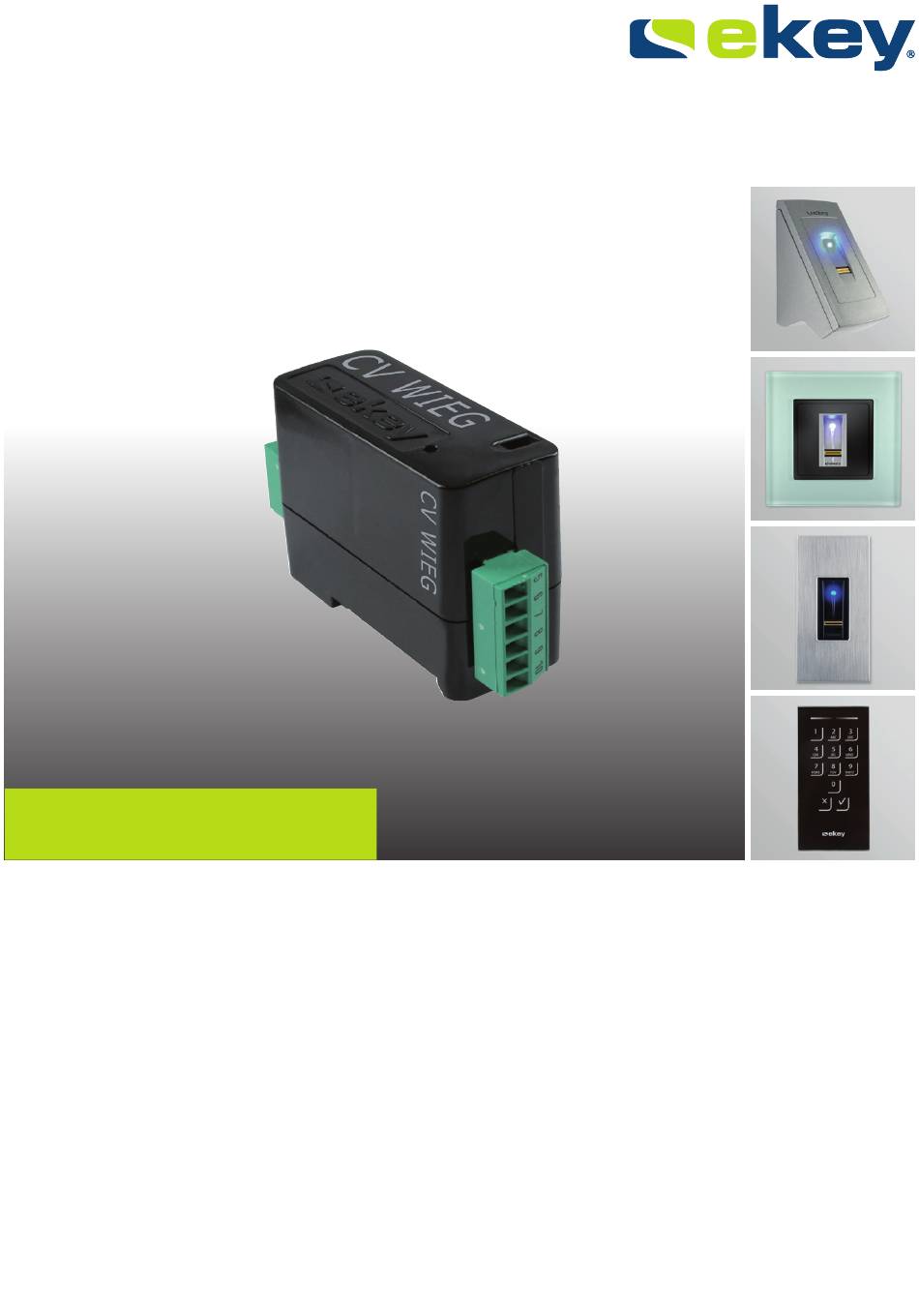

- Page 1 OPERATING INSTRUCTIONS...
-
Page 2: Table Of Contents
Scope of delivery................4 Proper use and area of application ..........4 Wiegand converter ............... 5 Configuration tool ................. 6 Technical specifications ..............7 System setup variants ..............7 ekey home variant................ 7 ekey multi variant 1 ..............8 ekey multi variant 2 ..............8 Converter configuration ..............9... -
Page 3: General
GmbH provides a 24-month warranty for material or processing defects. This warranty is only valid in the country where the product was purchased. The product may only be used with original ekey spare parts and accessories. Notices, symbols and abbreviations NOTICE Denotes additional information and useful tips. -
Page 4: Safety Information
Symbols: Step-by-step instructions Reference to sections of this manual Reference to the mounting instructions Reference to the wiring diagram □ Listing without specified order, 1st level ekey home FS UP Product names MENU ITEM Menu items Buttons Button Abbreviations: Converter... -
Page 5: Product Description
Wiegand system, and never the other way round. The system is used to establish a data connection between the ekey home ekey multi system and a third-party Wiegand system. 4│en... -
Page 6: Wiegand Converter
Function of the converter Wiegand converter The converter reads out the sent information at the ekey RS485 bus. It converts this data into a predefined Wiegand protocol. The converter sends the generated data to the third-party Wiegand system for further processing. -
Page 7: Configuration Tool
This tool can be found on the CD supplied with the ekey converter USB and is also available to download from the ekey homepage. Click on the following link to go to the download area: http://www.ekey.net/downloads/cat/Software. NOTICE ekey converter USB is required in order to establish a connection between the Wiegand converter and the PC. -
Page 8: Technical Specifications
°C -25 to+70 Baud rate at RS485 115200 Protection class Table 4: Technical specifications: ekey home CV WIEG RS485 System setup variants There are three setup variants for connecting an ekey home ekey multi system to a third-party Wiegand system. -
Page 9: Ekey Multi Variant 1
1 1 Finger scanner 1-4 2 Third-party Wiegand system 3 Wiegand connection cable 4 ekey RS485 bus 5 Wiegand converter 6 Control panel ekey multi variant 1 comprises up to four finger scanners, a control panel, a converter and a Wiegand interface to the third-party system. The converter transmits the sent data from each finger scanner to the third- party Wiegand system. -
Page 10: Converter Configuration
PC with MS Windows operating system and USB-2.0 interface; □ ekey FWupdate software with configuration tool. If you have already implemented your system, disconnect it from the power supply. Dismantle the ekey home converter Wiegand RS485 enable it to be configured. en│9... - Page 11 Check the configuration of the wires carefully before connecting the power supply. Step Instruction Install the ekey FWupdate software on your PC. Connect the USB connection cable to the PC. Wait until the USB driver has been installed. Connect the power supply to the mains.
-
Page 12: Carrying Out The Configuration
The length of the user ID and the facility code Prepare the devices for configuration. See Preparing for configuration, page 9. Step Instruction Launch the ekey FWupdate software. ekey FWupdate program automatically opens with the update window. NOTICE This function enables you to download the most recent firmware software for your products. - Page 13 USB from the dropdown menu based on the serial number. Click on Search. The connected ekey home converter Wiegand RS485 listed. The Wiegand button is enabled. Click on Wiegand. The input screen for the Wiegand protocol is displayed. 12│en...
-
Page 14: Configuration Examples
Step Instruction Enter the required values in the input fields. NOTICE For a system setup with several converters ( ekey multi variant 2), input field must always be used for the finger scanner assignment. This means that the serial number of the finger scanner... - Page 15 Wiegand system. The 26-bit Wiegand format was not changed. Fig. 8: Configuration example: ekey multi variant 1 ekey multi variant 2 In this example, the serial numbers of the 4 finger scanners being assigned and the facility codes in the 4 converters being used have been entered in input line FS1.
-
Page 16: Installation And Implementation
The system is ready for use. NOTICE For information regarding the further processing of the sent ekey Wiegand data in the third-party Wiegand system, refer to the documents provided by the supplier of your Wiegand system. -
Page 17: Resetting Default Settings
All content, artwork and any ideas contained in these operating instructions are subject to applicable copyright laws. Any transmission, relinquishment or transfer of this content or parts thereof to any third party requires the prior written consent of ekey biometric systems GmbH. Original documentation. 16│en... - Page 18 Austria Germany ekey biometric systems GmbH ekey biometric systems Deutschland GmbH Lunzerstraße 89, A-4030 Linz Liebigstraße 18, D-61130 Nidderau Tel.: +43 732 890 500 2500 Tel.: +49 6187 906 960 offi ce@ekey.net deutschland@ekey.net Switzerland & Liechtenstein Eastern Adriatic region ekey biometric systems Est.
