Instruction Manual
HI 981400
pH Indicator
with Alarm Signal for
HACCP Control
HACCP
FOOD STABILITY
pH INDICATOR
5.8
pH
pH4
pH7
This Instrument is in
Manufacturers since 1978
Compliance with the CE Directives
W A R R A N T Y
W A R R A N T Y
W A R R A N T Y
W A R R A N T Y
W A R R A N T Y
HACCP Food Stability pH Indicator is warranted for one years
against defects in workmanship and materials when used for their in-
tended purpose and maintained according to instructions. This warranty
is limited to repair or replacement free of charge.
Damages due to accident, misuse, tampering or lack of prescribed
maintenance are not covered.
If service is required, contact the dealer from whom you purchased the
instrument. If under warranty, report the model number, date of pur-
chase, serial number and the nature of the failure. If the repair is not
covered by the warranty, you will be notified of the charges incurred. If
the instrument is to be returned to Hanna Instruments, first obtain a
Returned Goods Authorization Number from the Customer Service de-
partment and then send it with shipment costs prepaid. When shipping
any instrument, make sure it is properly packaged for complete protec-
tion.
To validate your warranty, fill out and return the enclosed warranty card
within 14 days from the date of purchase.
All rights are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner, Hanna Instru-
ments Inc.
Hanna Instruments reserves the right to modify the design, construction
and appearance of its products without advance notice.
Dear Customer,
Thank you for choosing a Hanna product. This manual will
provide you with the necessary information for a correct
operation. Please read it carefully before using the meter. If
you need additional technical information, do not hesitate
to e-mail us at techserv@hannacan.com.
These instruments are in compliance with the
directives
EN 50081-1 and EN 50082-1.
PRELIMINARY EXAMINATION
PRELIMINARY EXAMINATION
PRELIMINARY EXAMINATION
PRELIMINARY EXAMINATION
PRELIMINARY EXAMINATION
Remove the instrument from the packing material and
examine it carefully. If any damage has occurred during
shipment, immediately notify your Dealer or the nearest
Hanna Customer Service Center.
The meter is supplied with:
• Calibration screwdriver;
• pH 4.01 and 7.01 buffer solutions (20 mL each);
• 12 VDC power adapter.
Note: Conserve all packing material until the instrument
has been observed to function correctly. Any defective
item must be returned in its original packing.
GENERAL DESCRIPTION
GENERAL DESCRIPTION
GENERAL DESCRIPTION
GENERAL DESCRIPTION
GENERAL DESCRIPTION
is an indicator specially
HACCP Food Stability pH Indicator
designed to check pH in foodstuff.
The pH value ranks as one of the most important indicators
of food quality and safety. pH of raw ingredients such as
milk and meat is measured to ensure that quality standards
have been properly met. pH is also monitored at different
stages of food preparation and transformation to guarantee
safety, improve production and enhance quality.
HI 981400
HI 981400
HI 981400
HI 981400
HI 981400 measures and displays the pH value on a
liquid cristal display. In addition, a flashing LED will
indicate if the measured pH exceeds the selected limit.
The HANNA range of electrodes includes some models spe-
cially made for the food sector, such as FC 200B
FC 200B with an
FC 200B
FC 200B
FC 200B
open junction and FC 230B
FC 230B with a cutting blade recom-
FC 230B
FC 230B
FC 230B
mended for meat measurement.
With a built-in hook, you can simply hang the meter right
above the sample to be tested for repetitive measurements.
The meter can be calibrated at one or two points.
You no longer need to worry about battery changes either: the
unit runs without interruption on 12 VDC power supply.

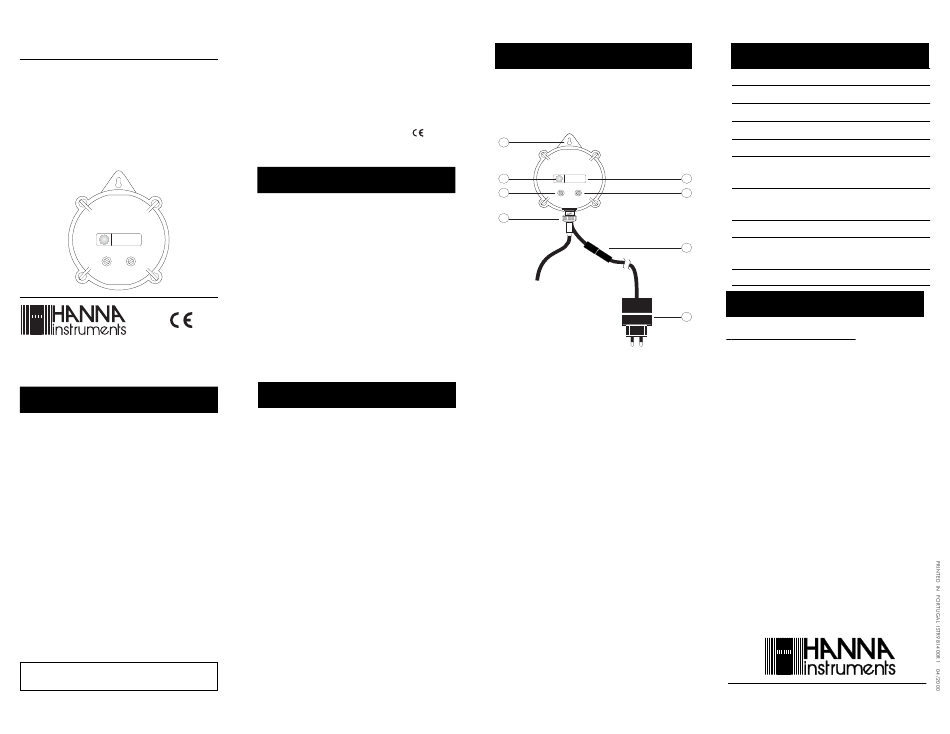

F U N C T I O N A L D E S C R I P T I O N
F U N C T I O N A L D E S C R I P T I O N
F U N C T I O N A L D E S C R I P T I O N
F U N C T I O N A L D E S C R I P T I O N
F U N C T I O N A L D E S C R I P T I O N
1
HACCP
FOOD STABILITY
p H I N D I C ATO R
2
5.8
pH
pH4
pH7
3
4
Any pH electrode ending in a
BNC connector can be attached
to the meter
1. Molded eye
2. Alarm LED
3. pH 4.0 calibration trimmer
4. BNC connector for pH electrode
5. Liquid Crystal Display
6. pH 7.0 calibration trimmer
7. Power supply connector
8. 12 VDC power supply (included)
SPECIFICATIONS
SPECIFICATIONS
SPECIFICATIONS
SPECIFICATIONS
SPECIFICATIONS
Range
0.0 to 14.0 pH
Resolution
0.1 pH
Accuracy (@ 25°C/77°F)
±0.2 pH
Typical EMC Deviation
±0.2 pH
Setpoint
4.0 to 7.5 pH
Alarm
LED blinks when
measurement is higher than setpoint
5
Calibration
Manual with two trimmers
6
for offset (pH 7.0) and slope (pH 4.0)
Power supply
External 12 VDC (included)
Dimensions
86 x 94 x 33 mm (3.4 x 3.7 x 1.3")
7
meter only
Weight
150 g (5.3 oz.) meter only
OPERATIONAL GUIDE
OPERATIONAL GUIDE
OPERATIONAL GUIDE
OPERATIONAL GUIDE
OPERATIONAL GUIDE
8
pH ELECTRODE MAINTENANCE
• Any combination pH electrode ending in a BNC connec-
tor can be attached to the controller. Choose from the
vast range of HANNA electrodes by consulting our
general catalog.
• Do not be alarmed if white crystals appear around the
electrode protective cap. This is normal with pH elec-
trodes and they dissolve when rinsed with water.
• When not in use, rinse the electrode with water to
minimize contamination and store it with a few drops of
storage (HI 70300) or pH 7 (HI 7007) solution in the
protective cap. Always replace the protective cap after
use.
DO NOT USE DISTILLED OR DEIONIZED WATER FOR
STORAGE PURPOSES.
• If the electrode has been left dry, soak the tip in a
storage (HI 70300) or pH 7 (HI 7007) solution for at
least one hour to reactivate it.
• To minimize clogging and provide longer life for the pH
electrode, it is recommended to clean it at least once o
month. Immerse the tip of the electrode in HI 7061 for
half an hour and then rinse it with tap water.
h t t p : / / w w w . h a n n a c a n . c o m
