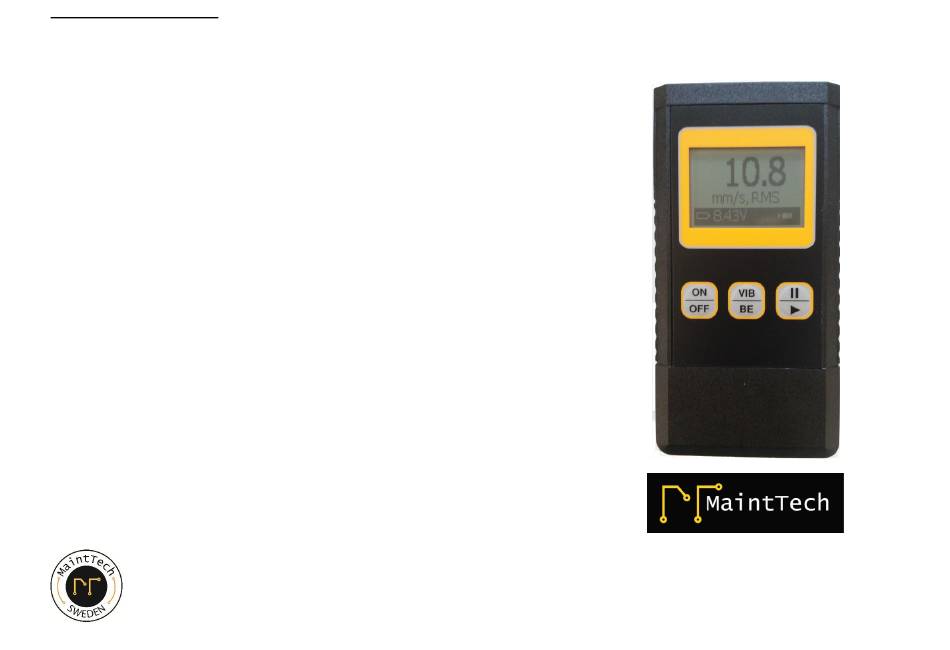

Technical Specifications
Input Sensitivity:
100mV/g calibrated at 156,15Hz
Measuring Range:
Velocity: 0-200 mm/s RMS
Frequency Range:
Total Level:
Options:
Bearing Energy:
Battery Type:
9V 6F22 or similar, Alkaline
Vibration Transducer:
M/AC140-2D/003-F,
with 1m Cable and BNC Connector
Sensitivity 100mV/g +/- 15%
Magnet Support:
15 x 20 mm, app. 15kg
Extension Tip:
Length 65 mm
The extension tip is attachable directly to the
magnet.
Operating Temperature: -20 to +60°
Warranty Disclaimer
MaintTech warrants the product to be free from defects in material and
workmanship under normal use and service within 2 years from the date of
delivery. If the instrument malfunctions, do not attempt to repair the
instrument yourself, as this will invalidate the warranty. Warranty claimed
products shall be returned prepaid to MaintTech for service. We reserve
the right to repair or to replace defect products.
The accelerometer has Life Time Warranty.
mainttech@live.se
10-3200Hz
2-3200 Hz, 10-1000 Hz
2200 Hz-20 000 Hz
CX20
Advertisement
Table of Contents
Summary of Contents for MaintTech CX20
-
Page 1: Technical Specifications
Operating Temperature: -20 to +60° Warranty Disclaimer MaintTech warrants the product to be free from defects in material and workmanship under normal use and service within 2 years from the date of delivery. If the instrument malfunctions, do not attempt to repair the instrument yourself, as this will invalidate the warranty. - Page 2 Group 1: Large machines with Rated power above 300kW. FUNCTIONS Electrical machines with shaft height H>315mm. Operating speed ranges from 120 to 15000rpm. Group 2: Medium-sized machines with rated power Press this key to start the instrument and press again to turn off the above 15kW up to and including 300kW.
