Innovative Electronics EMS 30 A H-Bridge Quick Start

Embedded module series (ems) h-bridge rev. 1

Advertisement

EMS
(Embedded Module Series)
30 A H-Bridge rev. 1
Embedded Module Series (EMS) 30 A H-
Bridge
is a VNH3SP30 based H-Bridge driver
designed to generate 2 ways drive with continuous current
up to 30 A at 5.5 Volts to 36 Volts voltage (up to 16 V
for IC VNH2SP30). This module is equipped with a current
sensor that can be used as a feedback to the controller.
This module can drive inductive loads such as relay,
solenoid, DC motor, motor stepper, and other kinds of
load.

Specifications

1. Consists of 1 full H-Bridge driver. A current sense
circuitry for IC VNH2SP30 is available.
2. Can pass 30 A continuous current.
3. Load voltage ranges from 5.5 V to 36 V (up to 16 V
for IC VNH2SP30).
4. Compatible with TTL and CMOS level input.
5. Power supply input for the driver (VCC) is separated
from power supply input for the loads (V Mot).
6. Tri-state output.
7. PWM frequency up to 20 KHz.
8. Fault Detection.
9. Short circuit protection.
10. Overtemperature protection.
11. Undervotage and Overvoltage Shutdown.
12. Reverse Battery Protection.

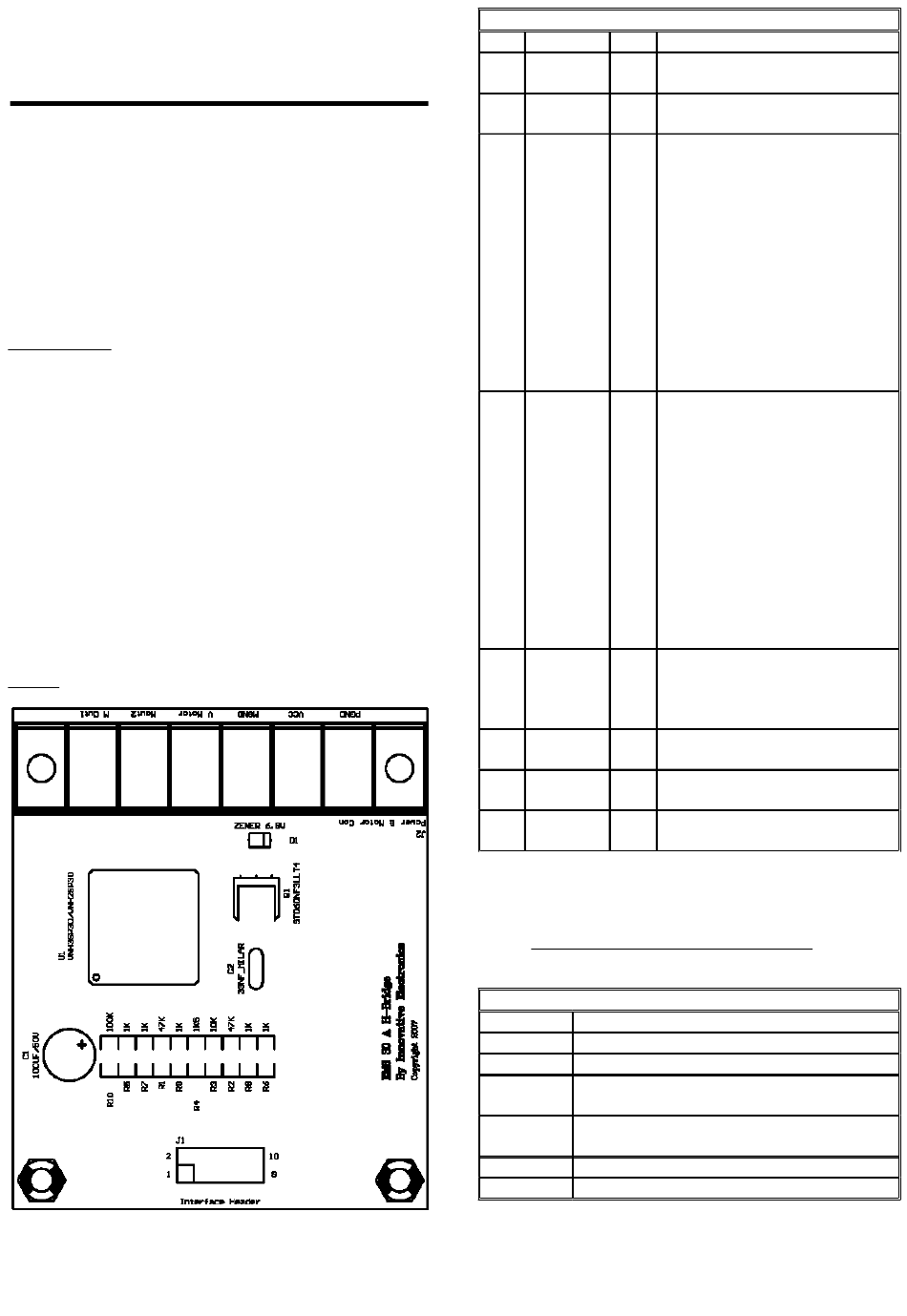

Layout

Pin Interface Header J1 Allocation

Pin
Name
I/O
1
MIN1
I
2
MIN2
I
3
MEN1
I/O
4
MEN2
I/O
5
MCS
O
6
MPWM
I
7,
VCC
-
9
8,
PGND
-
10
The current (In Ampere) passing through H-Bridge can be
calculated with the following equation:
Output
_
voltages
=
I
Power & Motor Con J2 Connector Allocation
Name
PGND
Ground reference for power supply input
VCC
Connected to power supply input (5 Volt)
Ground reference for power supply for
MGND
the load
V MOTOR
Connected to power supply for the load
(V MOT)
MOUT2
Output of second half H-Bridge
MOUT1
Output of first half H-Bridge
Function
Input pin to determine the
MOUT1 output
Input pin to determine the
MOUT2 output
Enable pin for MOUT1 output
Give High logic to activate
half H-Bridge 1, give Low
logic externally to deactivate
half H-Bridge 1
If there is a faulty condition
(thermal shutdown,
undervoltage, overvoltage,
etc.), then this pin will be
pulled low internally by H-
Bridge module to report the
faulty condition
Enable pin for MOUT2 output
Give High logic to activate
half H-Bridge 2, give Low
logic externally to deactivate
half H-Bridge 2
If there is a faulty condition
(thermal shutdown,
undervoltage, overvoltage,
etc.), then this pin will be
pulled low internally by H-
Bridge module to report the
faulty condition
Analog output voltage
proportional to load current
(output range 0-5 V)
Available for IC VNH2SP30
Input pin to control H-Bridge
by PWM
Connected to power supply for
input (5 Volt)
Reference point for power
supply input
_
on
_
MCS
_
pin
×
1500
Function
11370
