Ivation IVAFS22 User Manual

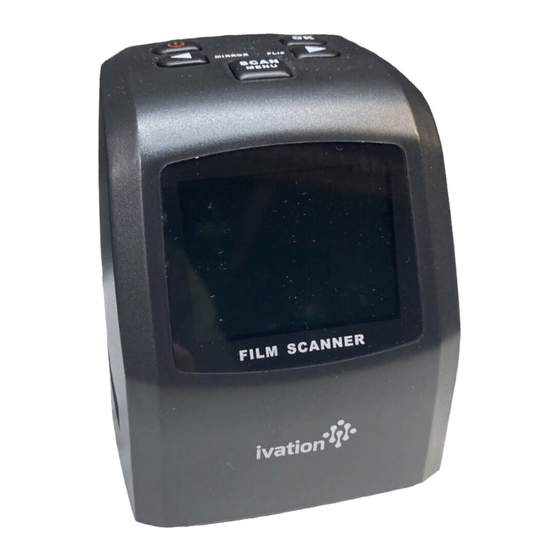

Digital Film Scanner/Converter

USER GUIDE

IVAFS22
Thank you for purchasing the Ivation® Digital Film Scanner/Converter. This User Guide is intended to
provide you with guidelines to ensure that operation of this product is safe and does not pose risk to the
user. Any use that does not conform to the guidelines described in this User Guide may void the limited
warranty.
Please read all directions before using the product and retain this guide for reference. This product is
intended for household use only.
This product is covered by a limited one-year warranty. Coverage is subject to limits and exclusions. See
warranty for details.

Box Contents

Digital film scanner/converter
Negative adapter
Slide adapter
Power adapter

Safety Precautions

• Do not attempt to disassemble the unit.
• Do not touch the inner part of the scanner after dropping or other damage.
• Stop using the scanner immediately if there is any smoke or smell during operation.
• Do not clean the scanner with alcohol, gasoline, diluent, or other organic solvent.
• Do not use the scanner in a dusty or damp environment.
• Use only standard size film with this scanner.
• Make sure the scanner is clean before operation.
• This unit will automatically shut off after 30 minutes without continuous operation.

Loading the Slide and Negative Adapters

1. Hold the negative or slide towards the light and face the front upwards.
2. Select the correct adapter depending on whether you are scanning a negative or slide. Both adapters
are labeled.
3. Flip the adapter onto the side that reads "THIS SIDE UP." Open the adapter and place the slide or
negative inside.
4. Close the adapter and press the edges so that it snaps into place.
5. Insert the adapter into the slot on the bottom of the scanner, noting the arrow indicating the top side.
USB to mini USB cable
TV cable
Cleaning brush
User guide
