User manual
Biolight
TM
BCD 650
Animal
303181_M17001_ver0_Biolight_Equine_Manual_Animal_ENG_A5.indd 1
2017-12-07 15:17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BCD 650 Animal and is the answer not in the manual?

Questions and answers

Summary of Contents for Biolight BCD 650 Animal

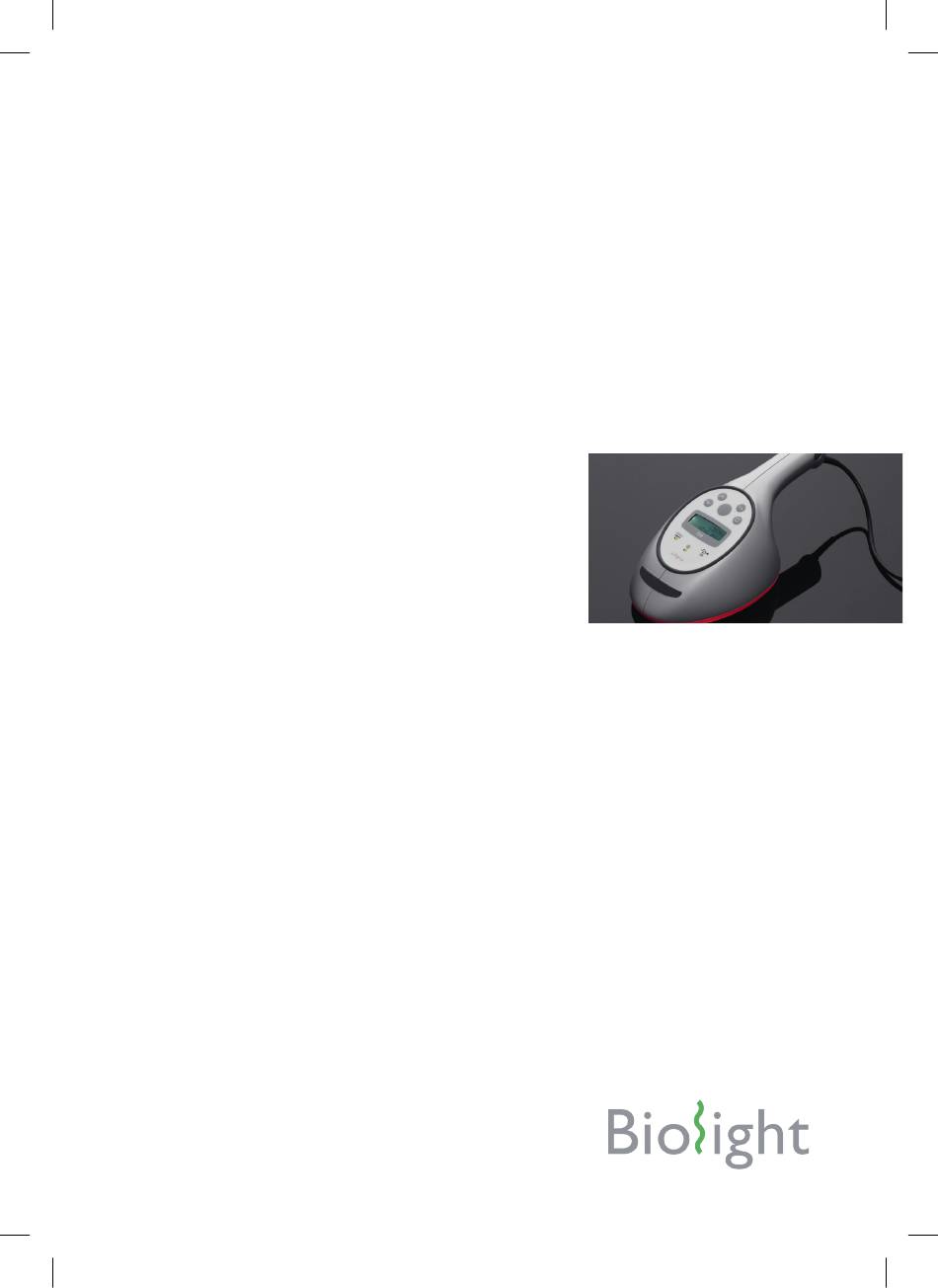

  • Page 1 User manual Biolight BCD 650 Animal 303181_M17001_ver0_Biolight_Equine_Manual_Animal_ENG_A5.indd 1 2017-12-07 15:17...
  • Page 2 303181_M17001_ver0_Biolight_Equine_Manual_Animal_ENG_A5.indd 2 2017-12-07 15:17...
  • Page 3 » the equipment is used in accordance with its intended use, and » maintenance and repairs are performed by individuals authorised by Biolight AB, and » the equipment is used in accordance with this document. Article number: BL2543 M17001 ver0...
  • Page 4: Table Of Contents

    Contents Introduction ...........6 1.1 Definitions ............6 1.2 Intended use ........... 6 1.3 Operating principles ........6 1.4 Intended users ..........6 1.5 General conditions of use ........6 1.6 The manual ............ 6 1.7 Manufacturer ..........9 1.8 Compliance with regulatory requirements ....9 1.9 Disposal ............
  • Page 5 Operating instructions ........22 5.1 Device Mode indications ......... 22 5.2 Start-up procedure.......... 23 5.3 Start treatment ..........23 5.3.1Treatment time ..........23 5.4 Pause or cancel on-going treatment ....23 5.5 Treatment finnished ......... 23 5.6 Power save mode .......... 23 Safety instructions ........24 6.1 Precautions ...........
  • Page 6: Introduction

    1.2 Intended use » The BCD is reusable and can be used for multiple use. Biolight Care Device (BCD) is a life science » The BCD is emitting both red and infrared product intended for wound healing, light. Infrared light is not visible to the reduction of inflammations, lowering pain human eye.
  • Page 7 Warnings, cautions and notes are used in the manual in the following way: Terminology Meaning The safety of the object or user may be involved. WARNING Disregarding this information could result in injury These instructions point out special service procedures or precautions CAUTION that you must follow to avoid damaging the device This provides information you might find espacially useful or infor-...
  • Page 8 The BCD 650 Packaging has been labelled with the following symbols: Symbol Meaning Catalogue number Serial Number Keep dry Store within given Temperature range Store within given Humidity range Store within given Atmospheric Pressure range Complies with Medical Device Directive 93/42/EEC 0413 Complies with RoHS 2 Directive 2011/65/EU The BCD 650 Battery Unit is labelled with the following symbols:...
  • Page 9: Manufacturer

    Biolight AB shall not be unregistered trademark or service mark liable to any person or entity for any medical owned by, or licensed to, Biolight AB or one of expenses or any direct, incidental or its subsidiaries. consequential damages caused by any use, ©...
  • Page 10: Device Description

    Standard kit 14. Power supply unit Optional order 15. Power cord Optional order 17. Battery unit Standard kit 20. Battery charger Standard kit 22. Biolight battery cable Standard kit Biolight carrying case (not in picture) Standard kit 303181_M17001_ver0_Biolight_Equine_Manual_Animal_ENG_A5.indd 10 2017-12-07 15:17...
  • Page 11 Orientation of BCD 650, picture 1 1. Hand unit 8. Mode indication LED, USB 2. Scroll up 9. Treatment running LED 3. Scroll down 10. Power LED 4. Enter 11. Stand locking release 5. Return 12. Power/USB cord 6. Home 13.
  • Page 12 Orientation of Battery unit, picture 31. Indicator for battery capacity, - 6 solid bars = Fully charged 28. Indicator for USB 5 V output - 1 bar = Almost empty 29. Indicator flashes then indicating that 32. Start button (press for 3 seconds NDED battery requires charging to activate/deactivate the battery)
  • Page 13 Battery power supply, picture 3 21. Contact DC Out, Battery charger 22. Biolight battery cable 17. Battery unit 23. Contact DC In, Biolight cable 18. Contact DC In, Battery unit 24. Contact DC Out, Biolight cable 19. Contact DC Out, Battery unit 27.
  • Page 14 Main power supply, picture 4 27. Contact DC In, Hand unit 14. Power supply unit 15. Power cord 16. Contact DC Out, Power supply unit Picture 4. Main power supply components and connectors. 303181_M17001_ver0_Biolight_Equine_Manual_Animal_ENG_A5.indd 14 2017-12-07 15:17...
  • Page 15: User Interface

    2.2 User interface Three LEDs indicate status of the Device as illustrated in table 1. One indicating USB The user interface consist of a display, connected (only for programming) one buttons and LEDs indicating Device indicating power connected and one status.
  • Page 16: Power Supply

    » Connect battery unit to BCD by CAUTION: The battery can be discharged connecting Biolight cable, contact DC In in the temperature range of 0˚C ~ 40˚C. (23) with Battery unit, contact DC Out (19). Ensure that contact (23) is completely inserted in contact (19). »...
  • Page 17: Disconnecting Power Supply

    3.5 Disconnecting power supply » Ensure that no treatment is running. » Disconnect the cable between the BCD Hand unit and current power supply by holding the plug (27), unscrew the contacts and pull straight out. CAUTION: Never pull the cord when disconnecting the plug.
  • Page 18: Menus

    4 Menus The user interface consists of 5 buttons with Scroll up (2) pre-specified functions and one display . The Scroll up button navigates Navigate through the menu systems by upwards in the text rows/ pressing applicable button on top of the alternatives displayed in the device.
  • Page 19: Navigating Menus

    4.2 Navigating menus 4.2.1 Main menu Power ↓ Startup Selfcheck ↓ Biolight ↓ 3 sec ↓ Biolight Home Enter Settings ← ← → → Treatments Menu ↑ ↑ Menu ↓ ↑ ↑ ↓ Return → → → → ↑ ↑ ← ← ← ←...
  • Page 20 4.2.2 Treatment menu Biolight → → → → → ← ← ← ← ← ← ← ← ← ← ← ↑ ↓ ↑ ENTER ↑ ↑ ↑ ↓ ↑ ↑ Treatments ↑ ↑ Local 1 ↑ ↑ Local 2 ↑ ↑ RETURN Drainage 1 ↑...
  • Page 21 4.2.3 Settings menu → → → → → → Biolight ← ← ← ← ← ← ← ← ← ↑ ↑ ↑ ↓ ↑ ↑ Home ↑ Enter ↓ ↑ ↑ Power Save → Enter → Power off ↑ Enter Contrast ←...
  • Page 22: Operating Instructions

    5 Operating instructions 5.1 Device Mode indications The Device mode is indicated by the LEDs on top of the device. USB mode (only for programming) The device is connected to PC. Power mode The device is connected to power supply. No treatment.
  • Page 23: Start-Up Procedure

    » Abort will end/cancel the treatment. » The BCD is ready to use when Biolight is Notice! If the elapsed treatment time left is displayed in the window. more than 30 seconds, the credit will be lost.
  • Page 24: Safety Instructions

    6 Safety instructions 6.1 Precautions help prevent electromagnetic interference by maintaining a minimum distance » Never expose the equipment to water or between portable and mobile RF commu- moisture. nications equipment (transmitters) and the Device. » Never expose the equipment to direct sunlight.
  • Page 25: Handling

    If equipment is not working after self check described in section 5.2. WARNING: No modifications of this equipment is allowed. WARNING: Service may only be performed by Biolight or by Biolight authorized personnel. WARNING: Do not perform service or maintenance while the equipment is in use.
  • Page 26: Other Misuse

    6.8 Other misuse 6.9 Battery , other warnings and notices » Do not short circuit (+) and (-) terminals intentionally with metallic objects. » Stop using the equipment if it gets abnormally hot or discoloured. » Do not penetrate the equipment with sharp objects, like needles or »...
  • Page 27: Troubleshooting

    WARNING_THERMISTOR_TEMP_LOW None. Warm up BCD Treatment is before starting continued new treatment WARNING_TO_MANY_RED_LEDS_BROKEN Desired effect Contact Biolight may not occur service centre WARNING_TO_MANY_IR_LEDS_BROKEN Desired effect Contact Biolight may not occur service centre Error codes ERROR_NO_SUCH_CODE Restart BCD...
  • Page 28 Fault Cause Effect Actions Code Error codes ERROR_TREATMENT_PARAMETER_NROFREPETITIONS Treatment Contact Biolight corrupted service centre ERROR_TREATMENT_PARAMETER_IMAGEOUTPUT Treatment Contact Biolight corrupted service centre ERROR_THERMISTOR_TEMP_HIGH Treatment is Wait to cool shut down. down BCD Can’t run treatment ERROR_LED_DRIVER_TEMP_HIGH Treatment is Wait to cool shut down.
  • Page 29: Technical Specifications

    Battery charger: 1.4 kg Dimensions: 125 mm wide, 95 mm high, WARNING: Change of primary battery 255 mm deep may only be performed by Biolight or by Biolight authorized personnel. Power consumption: max 1.5A (100V~), 0.7A (230V~) WARNING: Handle battery with care.
  • Page 30: Battery Unit

    8.3 Battery unit 8.5 Power supply unit Catalogue number: 15330 Catalogue number: 15310 Manufacturer: Powertraveller Ltd. Model: EM10601C Battery type: Hi-Density Lithium Polymer Manufacturer: Edac Power Electronics Co., Ltd. When connected to Battery charger: Power Input: Power Input: 9 V DC, 1.3 A 100±...
  • Page 31: Guidance And Manufacturer's Declaration

    9 Appendix A 9.1 Guidance and manufacturer’s declaration Guidance and manufacturer’s declaration – electromagnetic emissions The BCD 650 is intended for use in the electromagnetic environment specified below. The customer or the user of the BCD 650 should assure that it is used in such an environment. Emissions test Emissions test Emissions test...
  • Page 32 Guidance and manufacturer´s declaration – electromagnetic immunity The BCD 650 is intended for use in the electromagnetic environment specified below. The customer or the user of the BCD 650 should assure that it is used in such an environment. Immunity IEC 60601 Compliance Electromagnetic environment...
  • Page 33 Guidance and manufacturer’s declaration – electromagnetic immunity The BCD 650 is intended for use in the electromagnetic environment specified below. The customer or the user of the BCD 650 should assure that it is used in such an environment. Immunity IEC 60601 Compliance Electromagnetic environment test test level level –...
  • Page 34 Recommended separation distances between portable and mobile RF communications equipment and the BCD 650 The BCD 650 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the BCD 650 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the BCD 650 as recommended below, according to the maximum output power of the communications equipment.
  • Page 35 303181_M17001_ver0_Biolight_Equine_Manual_Animal_ENG_A5.indd 35 2017-12-07 15:17...
  • Page 36 303181_M17001_ver0_Biolight_Equine_Manual_Animal_ENG_A5.indd 36 2017-12-07 15:17...
