Marani CP4 Wall Panel DPA880T Installation Manual

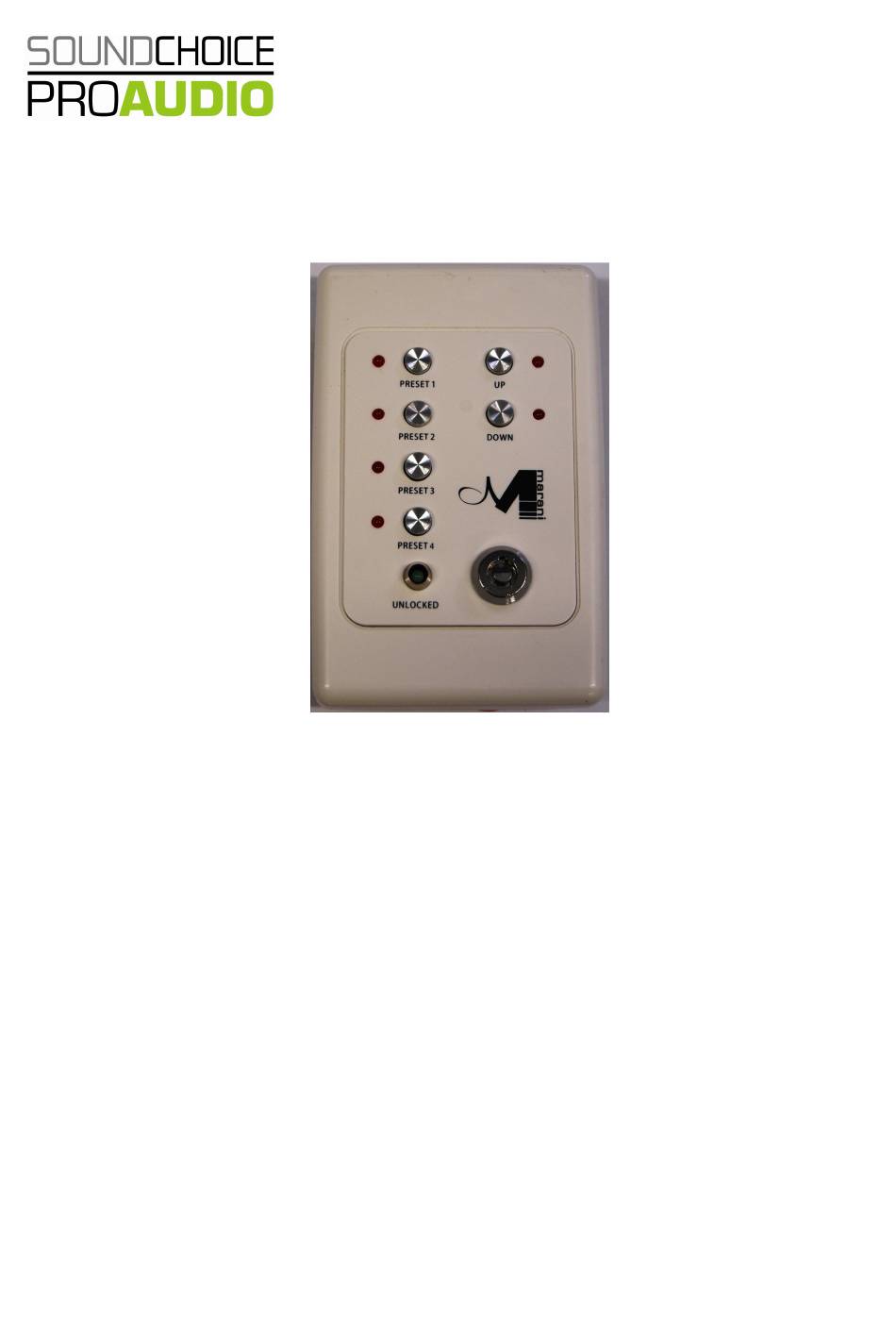

The CP4 wall panel is designed to be able to remotely control the Marani DPA880T via the RS485.
The panel is designed using a standard Clipsal 2000 plate however the mounting has to be adjusted
because of the circuit board located on the rear of the panel (see picture on page 2).
The CP4 recalls up to 4 assigned presets that have been programmed and stored in the DPA880T.
The selected preset LED light will flash until the preset is loaded within the DPA880T and then stay
illuminated
A master volume control increases and decreases the master volume. The master volume control
ramps up and down by either holding the button or by presses. The LED will illuminate while the
button is pressed. The volume ramps slowly at 1dB increments so quick changes are not possible by
mistake.
A Key Switch enables you to lock the panel once the preset and volume have been assigned.

Installation

The CP4 requires 5V to power the panel. Please make sure the power is connected positive to
positive and negative to negative. Power supply: 5V DC (power supply not included)
RJ45 Connection. Only pins 1 & 2 are used to connect the CP4 to the device. Pin 1 = (+) Positive and
Pin 2 = (-) Negative
