Product overview

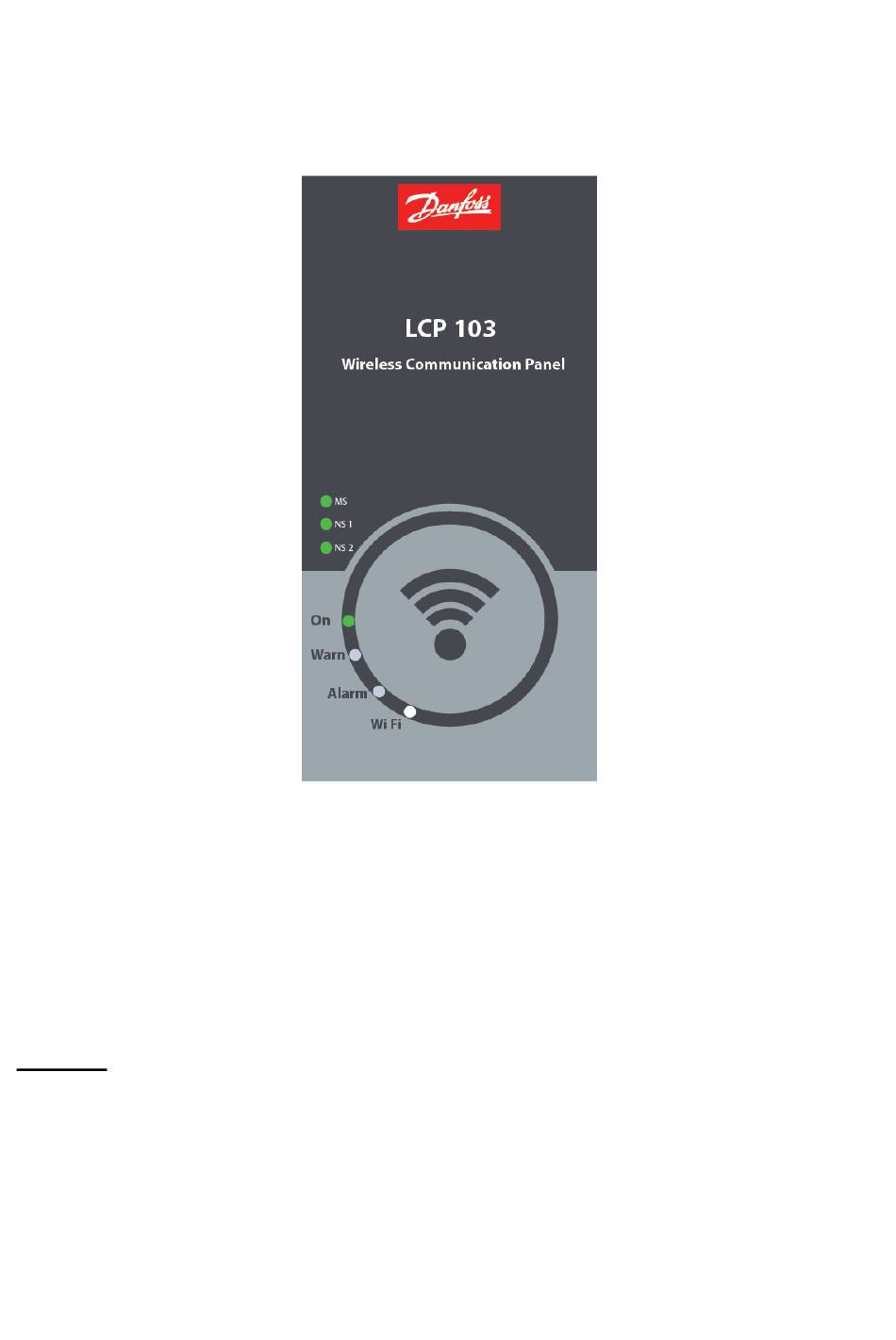

The package contains LCP-103 as shown below

This LCP-103 is be compatible with below drive series,

VLT® HVAC Drive FC 102

VLT® Refrigeration Drive FC 103

VLT® Aqua Drive FC 202

VLT® Automation Drive FC 300

Wireless Technology –

Advanced Security - Keep Wi-Fi safe from Internet threats at bay with WEP encryption and standard

firewalls to help keep your drive protected

LED Indicators — LED which help understand the drive behaviour

Built with leading 802.11b/g technology

Table of Contents

Do you have a question about the LCP 103 and is the answer not in the manual?

Page 1 Product overview The package contains LCP-103 as shown below This LCP-103 is be compatible with below drive series, VLT® HVAC Drive FC 102 VLT® Refrigeration Drive FC 103 VLT® Aqua Drive FC 202 VLT® Automation Drive FC 300 Features Wireless Technology – Built with leading 802.11b/g technology Advanced Security - Keep Wi-Fi safe from Internet threats at bay with WEP encryption and standard firewalls to help keep your drive protected...
Page 2 If you are connecting an apple device, then go to settings and then the device will scan and populate the wireless id Step 3: The wireless id is the ‘Danfoss’ name tagged with ‘serial id’ of the drive. For example: Danfoss_019223G455 is the wireless id by default.
Page 3 Step 3: The default password is ‘Danfoss1933’, after successful pairing the app will ask you to change the default network id and password. In this case the password is mandatory field, while the network id is an option field. Step 4: You can skip changing the default id’s. But this will allow you to connect and perform the drive operations only for 10 minutes, later the drive will close the connection.
Page 4 Safe Parameter – option for the user to select the behavior when the app crashes/battery down/connection lost, etc. whether the drive to stop or continue the ongoing process. In case if you need any further assistance, please contact Danfoss representative.
