EAPL
Model
A1D1-X(60M)
INSTRUCTION MANUAL
A1D1-X ON DELAY TIMER
www.eaplindia.com

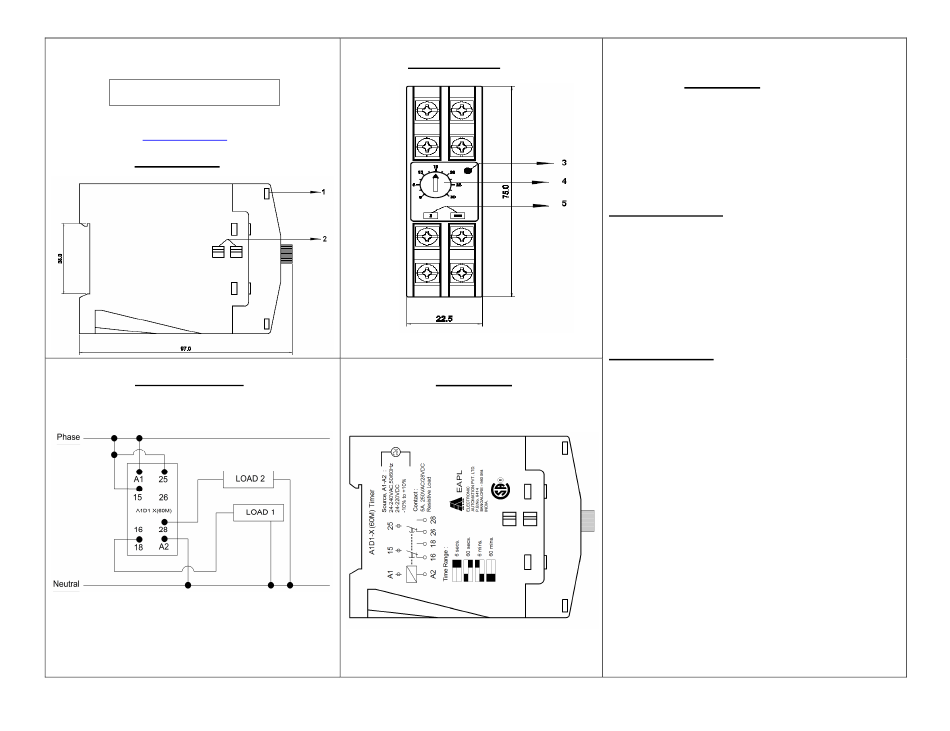

DIMENSIONS
NOTE: ALL DIMENSION ARE IN MM
CONNECTIONS
FRONT VIEW
SIDE VIEW
FUNCTION
A1D1-X (60M) is an ON Delay Timer.
On Power application preset timing starts and at
the end of the timing 2C/O relay contacts
changes over and remain in this state till the
power is interrupted.
Terminal Details
A1, A2
: Source Voltage
15, 16, 18
: C, NC, NO
25, 26, 28
: C, NC, NO
Contact Rating
5Amps@250V AC/28V DC Resistive Load
1. Terminal block
2. Slide switches for range selection
3. Relay status LED
4. Time Tuning Pot
5. Range viewing Window
DOC NO: OD RA XN 19000 0 REV NO. : 00 Dtd: 26/03/2014
Page 1 of 2
