Read installation instructions first before installing. Check parts to ensure that no damage has occurred during transit and that no
parts are missing. Also check the diameter of the pipe and the range marked on the clamp to ensure you have the proper size.
Style 517
517 Bell Joint Leak Clamps for 10" & 12" Class 200 pipe require special gasket
Step 1 •
Check the BJLC parts to insure that no dam-
age has occurred during transit. Clean all around the pipe and
on the face of the bell where the gasket will contact. These
surfaces must be free of all dirt, etc.

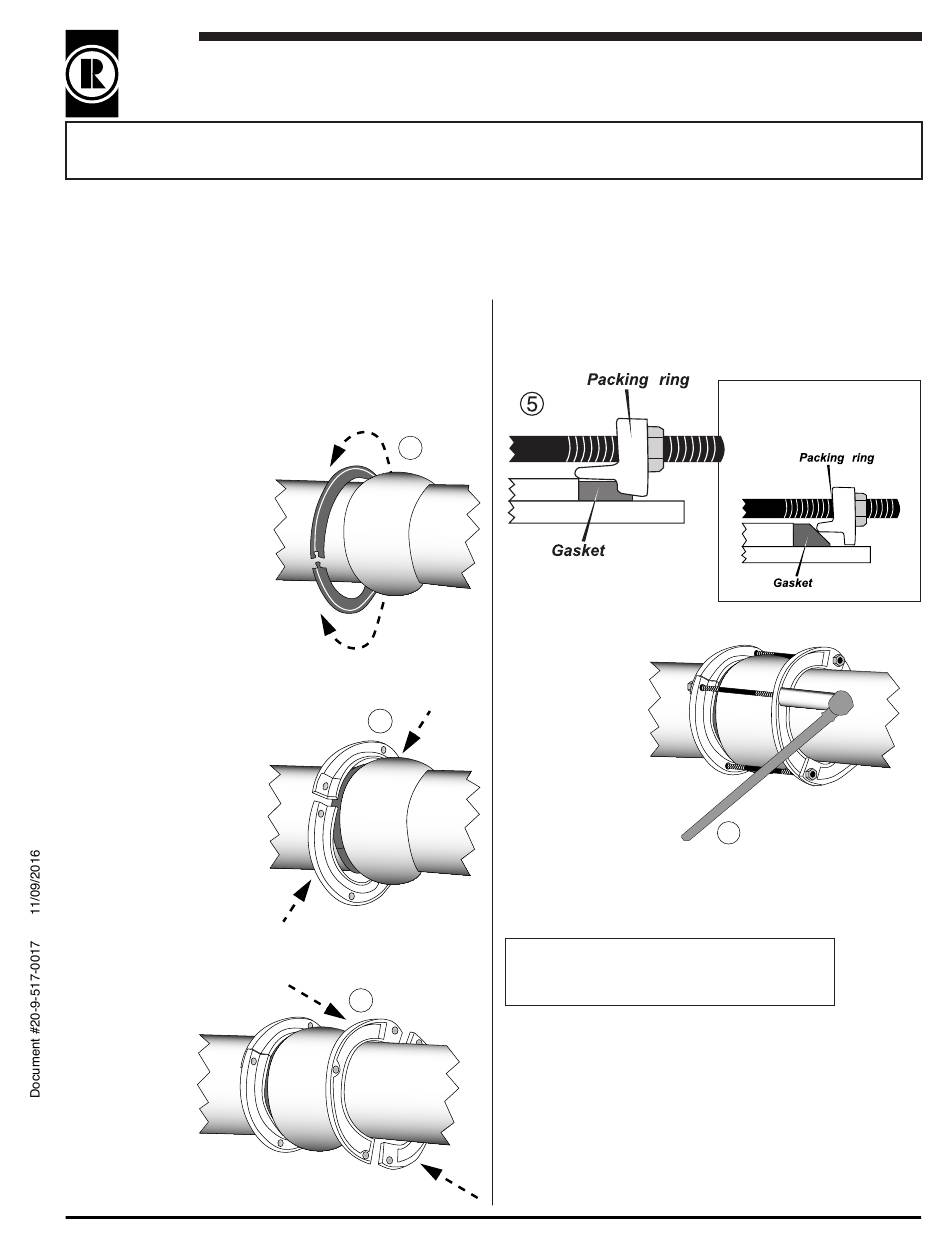

Step 2 •
Wrap the gasket
around the pipe with the thick edge
of the gasket toward the bell.
The gasket ends should
meet so that the puzzle
joints interlocks, holding the
ends of the gasket together.
Lubricate the gasket with
a suitable gasket lubricant.
The joint in the gasket should
be 90° from the joint in the pipe
ring.
Step 3 •
Assemble one ring
around the pipe, (it may be
necessary to insert one
bolt with nuts to hold ring
segments together) push
the assembled ring and
gasket against the face of
the pipe bell.
Step 4 •
Assemble the
other ring around the pipe
behind the bell.
Insert bolts and
hand tighten all
nuts.10" and 12"
come with flat
washers.
21919 20th Avenue SE • Suite 100 • Bothell, WA 98021 • Phone (425) 951-6200 • 1-800-426-9341 • Fax (425) 951-6201
INSTALLATION INSTRUCTIONS
Bell Joint Leak Clamp
Step 5 •
packing ring as shown in the sketch.
2
Step 6 •
Tighten bolts
evenly around the
3
pipe in 15 ft-lbs
increments.
Nom. Pipe Size
4"-8"
10"-12"
Note:
45 ft-lbs. torque = 12" wrench w/45 lbs. force
60 ft-lbs. torque = 12" wrench w/60 lbs. force
4
For best results, wait 10 minutes and re-torque.
Step 7 •
around the pipe as necessary to stop leaking.
Make certain the gasket is under the
Cross-section shown below
depicts special gasket required
for 10" & 12" Class 200 pipe.
6
Torque
35-45ft.-lbs.
50 - 60 ft-lbs
Check for leaking. Re-tighten the bolts evenly
