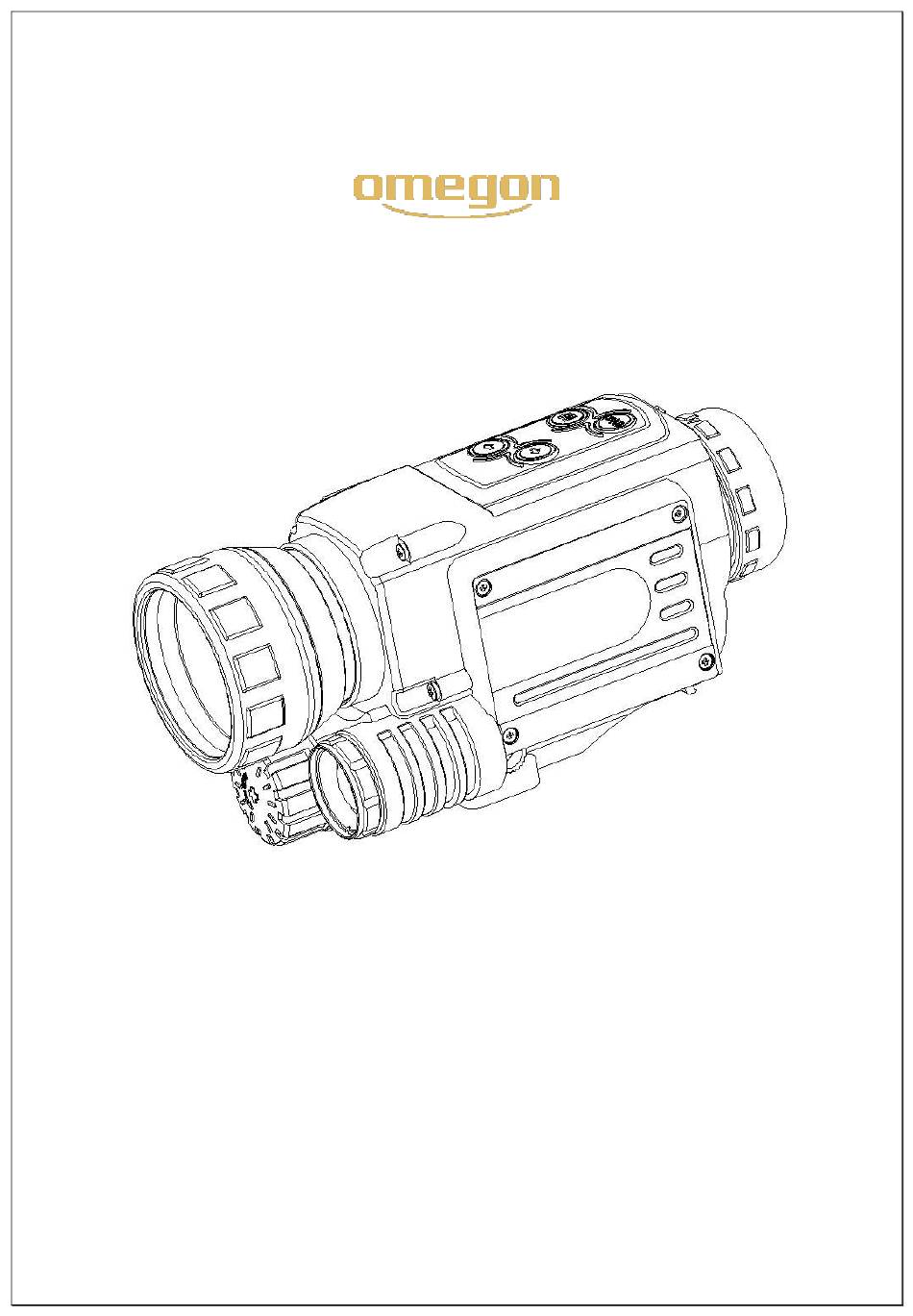

Instruction Manual
Omegon® Alpheon+-NV 4,5x40
English Version 7.2017 Rev A #53305
1
Any form of reproduction of the entire contents of this document or parts thereof beyond the private use is strictly prohibited.
Subject to alterations and errors. All texts, illustrations and symbols are the property of nimax GmbH.
Advertisement
Table of Contents
Related Manuals for Omegon Alpheon plus minus NV 4.5x40
Summary of Contents for Omegon Alpheon plus minus NV 4.5x40
- Page 1 Instruction Manual Omegon® Alpheon+-NV 4,5x40 English Version 7.2017 Rev A #53305 Any form of reproduction of the entire contents of this document or parts thereof beyond the private use is strictly prohibited. Subject to alterations and errors. All texts, illustrations and symbols are the property of nimax GmbH.
- Page 2 Omegon® Alpheon+-NV 4,5x40 Congratulations on purchasing your new Omegon® Alpheon+-NV 4.5x40. This night-vision device operates at low light levels. It gathers and boosts light emitted by objects. Thanks to the integrated IR beam, the observation range can be extended to up to 200 m. In special light conditions, such as moonlight, the observation range can even be extended to infinity.
- Page 3 3. Commissioning First, remove the battery compartment cover. Insert the battery/batteries with the minus pole facing down, as shown, ensuring that it fits properly in place (Fig. 3). Put the cover back on so the batteries won't fall out. The battery/batteries provided can be recharged via the USB port.
- Page 4 Infra-red lighting When in observation mode (photo mode), press the selection button, #8, for 2 seconds to go to the lighting menu. If there is insufficient light, you can switch on the infra-red lighting. Infra- red (IR) lighting improves the visible range and the brightness of the image.
- Page 5 View videos When in video mode, press the selection button (no. 8) to go to playback mode. In this way, you can play back and view any videos you have made. With the “up” and “down” buttons, you can scroll through the images and videos.
- Page 6 Electronic zoom You can zoom into the image electronically by pressing the “left” and “right” buttons. The desired magnification can be set to 8x for photos and up to 3x for videos. 1. Photo mode 2. Battery charge status 3. Memory card inserted 4.
