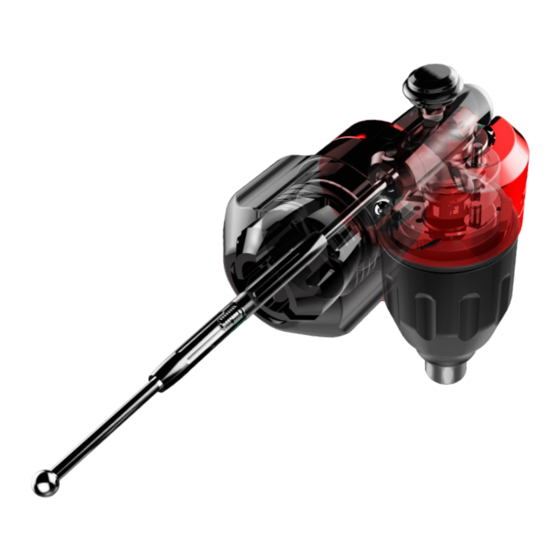

- Page 1 Cartridge Machine USER MANUAL 2018...
-
Page 2: Machine Overview
USER MANUAL MACHINE OVERVIEW PACKAGE CONTENTS • User Manual, Spektra Edge Body • Spare 4-40 3/16” Stroke Set Screw • Hex Drive MotorBolt • Spare Vise O-ring • Oil Lubricant • Attached Precision DrivePin • 0.05” Hex Screwdriver • Plunger DrivePin MACHINE FEATURES •... - Page 3 CHANGING THE STROKE The stroke of the Spektra Edge is adjustable to 2.8mm, 3.5mm, and 4.25mm lengths with the ability to fine tune in between. With the motor housing removed from the machine body, gently use your finger to turn the inner bearing of the machine from the bottom of the machine body so that the set screw (2) of the stroke bearing aligns with the cutout on the back of the machine (1).
- Page 4 USER MANUAL MACHINE OVERVIEW OPTIMAL VOLTAGE The Spektra Edge will run on any high quality rotary compatible power supply from 6v-12v depending on the brand of needle cartridge and grouping that are used. Optimal voltage for the machine is generally achieved between 7.5-10v.
- Page 5 DETACHABLE DRIVEPIN SYSTEM The Spektra Edge features a drive bar system with a detachable DrivePin that allows easy sterilization of the cartridge- contacting portion of the bar, as well as the ability to interchange the DrivePin to suit a variety of grip styles.
-
Page 6: Additional Information
The enclosed Maxon Motor will be covered under warranty for 1 year from the date of purchase. Should this product be defective, FK Irons will repair or replace the product for a current available model of equal value.
