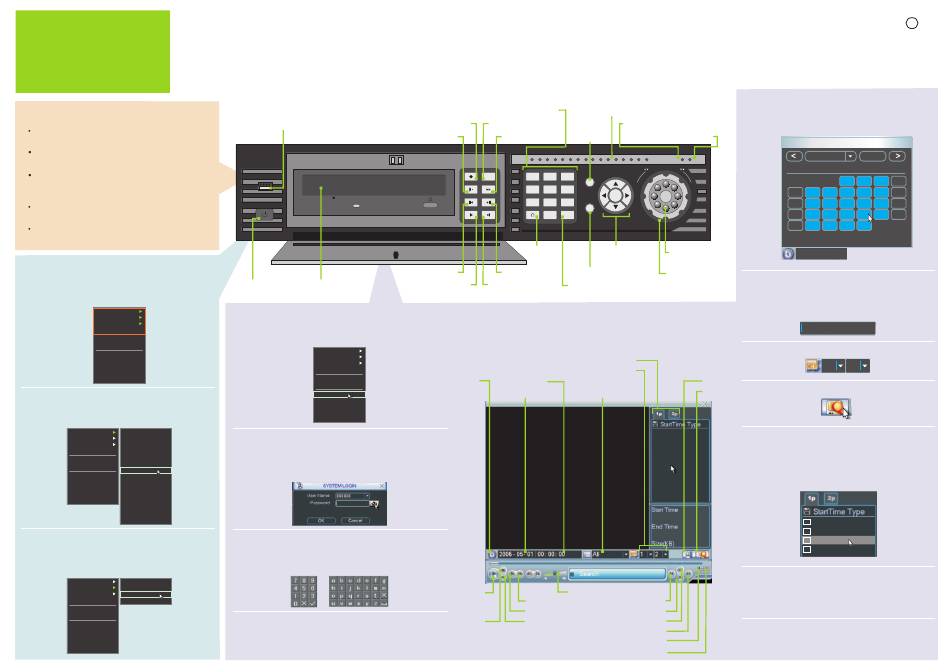

IFCS Professional Series Quick Reference

Quick
Professional Series Digital Video Recorder
Live Viewing & Playback Guide
Reference

Important Precautions

Ensure the DVR is located in a dust-free
environment that permits proper airflow.
Do not subject the DVR to vibration or
sudden jolts.
Always ensure the cooling fans are free of
dust or any obstruction that may prevent
their operation.
Do not insert scratched or warped CDs into
the CDRW drive as damage may result.
Safeguard against liquids and other electrical
hazards.

Viewing live cameras

1 Right-click on the screen and select one of the
following View selections.
View 1
View 4
View 9
View 16
.
Pan/Tilt/Zoom
Color Setting
.
Search
Record
Alarm Output
Alarm Input
Main Menu
2 The submenu that appears when selecting View
1 allows selection of a single camera.
Customised camera titles appear in this menu.
View 1 ENTRANCE
View 4 CAM 2
View 9 CAM 3
View 16 EXIT
.
CAM 5
Pan/Tilt/Zoom
CAM 6
Color Setting
CAM 7
.
Search
LOADING DOCK
Record
CAM 10
Alarm Output
CAM 11
Alarm Input
GATE 1
Main Menu
GATE 2
CAM 14
CAM 15
CAM 16
3 Selecting View 4, View 9 or View 16 will display
multiple cameras on the screen. View 4 and
View 9 submenus allow for different camera
groups to be selected.
View 1 CAM 1 - 4
View 4 CAM 5 - 8
View 9 CAM 9 - 12
View 16 CAM 13 - 16
.
Pan/Tilt/Zoom
Color Setting
.
Search
Record
Alarm Output
Alarm Input
Main Menu
USB Port
i FCS
POWER
Power Switch Internal CDRW Previous Record

Searching for footage

1 Right-click on the screen and select Search
View 1
View 4
View 9
View 16
.
Pan/Tilt/Zoom
Color Setting
.
Search
Record
Alarm Output
Alarm Input
Main Menu
2 Use the drop down menu to select your Local Access
User Name and enter your Password if required.
Store your User Name and Password in a safe place as the DVR
may require manufacturer servicing to reset a Local User
administrative account.
3 Clicking on the password box displays a virtual
keyboard which can be used to enter the password.
Selecting the icon alongside the password box will
allow toggling between numerical and alphabet input.
4 Once the password is entered select OK to proceed.
Repeated unsuccessful login attempts will sound a buzzer and
cause a security lockout. DVR power must be reset before
attempting to log on again.
Numeric Keypad (0-9) Recording Indicator Lights
Record Function Toggle
Slow Play Fast Forward Escape
1 2 3 4 5 6 7 8 9
Fn 1.. 2 3
ABC DEF
Esc
4 5 6
GHI JKL MNO
7 8 9
PQRS TUV
WXYZ
Mult
0 --/-
Shift Key Navigation Keys
Rewind Play/Pause Multi-Screen Selection
Next Record Number Toggle (10+)
5
The Playback interface will appear.
Camera Search Result Tabs
Camera Selection
Calendar Time Input
Date Input Recording Type
Play/Pause Volume Control
Fast Forward
Slow Play
Rewind
Stop
Auto-Play Next Record
6 Either click on the Calendar button to view which
days have recorded footage or input a date into
the Date Input. Days highlighted in blue have
Function Indicator Light recorded footage.
Remote Receiver Light
10 11 12 13 14 15 16 Fn ACT
Enter
Inner Jog Shuttle
Outer Jog Shuttle
7 Entering the time into the Time Input is optional
and can provide more accurate searches.
If you do not enter this information, the list of records will
start at midnight the morning of the date selected.
8 Select the camera number(s).
Backup
9 Click on the Search icon.
Search
10 A list of records will appear underneath the
Camera Search Result Tabs and double-clicking
on the record commences playback.
If the DVR supports dual-channel playback and a second
camera is selected with available footage at the time
period selected, the second camera will also playback.
11 To stop playback and select another camera or
time period, right-click or click on Stop. After
selecting a new camera or time period, click on
Previous Record
Search to refresh the list of records.
Next Camera
Previous Camera
12 To return to live view right-click or select Stop to
Next Record
cancel any playback and right-click a second time
to exit the Playback interface.
Fullscreen
R
i FCS
23 - 11 - 2006
November 2006
Sun Mon Tue Wed Thu Fri Sat
1 2 3 4
5 6 7 8 9 10 11
12 13 14 15 16 17 18
19 20 21 22 23 24 25
26 27 28 29 30
23 - 11 - 2006
15: 45: 00
1 2
00:03:48 M
03:48:12 M
09:00:12 M
09:01:17 M
v20061208
