ARNOLD OPPAMA PET-1000R Instruction Manual

Engine tachometer

Advertisement

A. Function
The PET-1000R is a pulse-activated tachometer. It detects and counts electric
pulses produced at the time of ignition of gasoline engines and processes the
detected signal into rpm readings according to the type of engines being
monitored. This unit is designed for use with 2-stroke single-cylinder and twin-
cylinder, and 4-stroke twin-cylinder and four-cylinder engines.
This unit cannot be used for direct ignition engines.

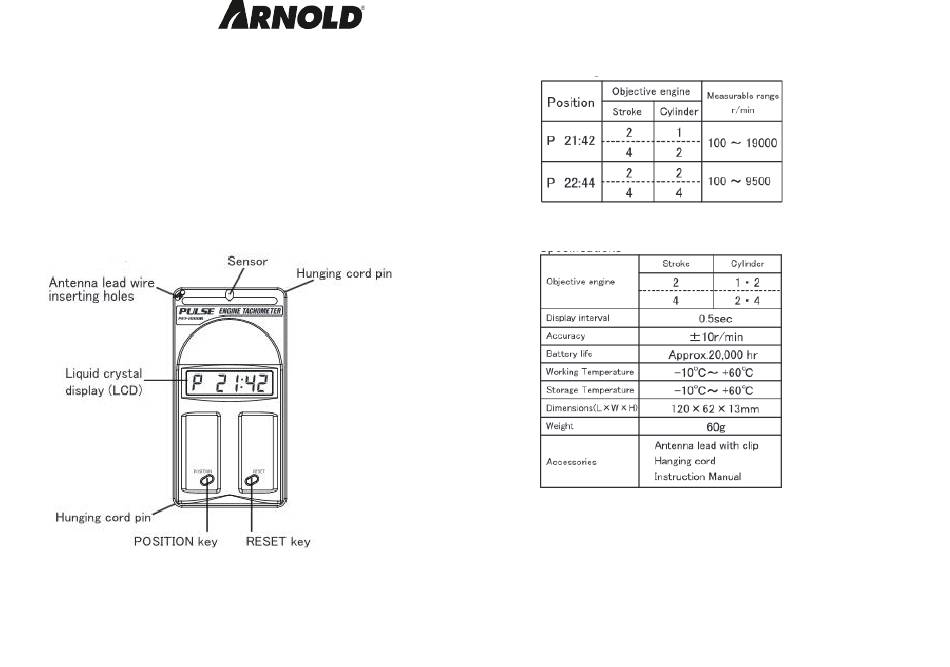

Illustration

B.
Instruction manual engine tachometer OPPAMA PET-1000R
C.

Measuring position chart

D. Specifications

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPPAMA PET-1000R and is the answer not in the manual?

Questions and answers

Summary of Contents for ARNOLD OPPAMA PET-1000R

  • Page 1 Instruction manual engine tachometer OPPAMA PET-1000R A. Function Measuring position chart The PET-1000R is a pulse-activated tachometer. It detects and counts electric pulses produced at the time of ignition of gasoline engines and processes the detected signal into rpm readings according to the type of engines being monitored.
  • Page 2 Instruction manual engine tachometer OPPAMA PET-1000R E. (1)non-conteact method (Fig.1) 4. Start the engine and its rpm readings will appear on the unit’s LCD at 0.5 sec 1. Turn ON the unit by depressing POSITION key. intervals. 2. Select the POSITION number applicable to the engine to be monitored, 5.
