Summary of Contents for ANTEK FU3AM-03

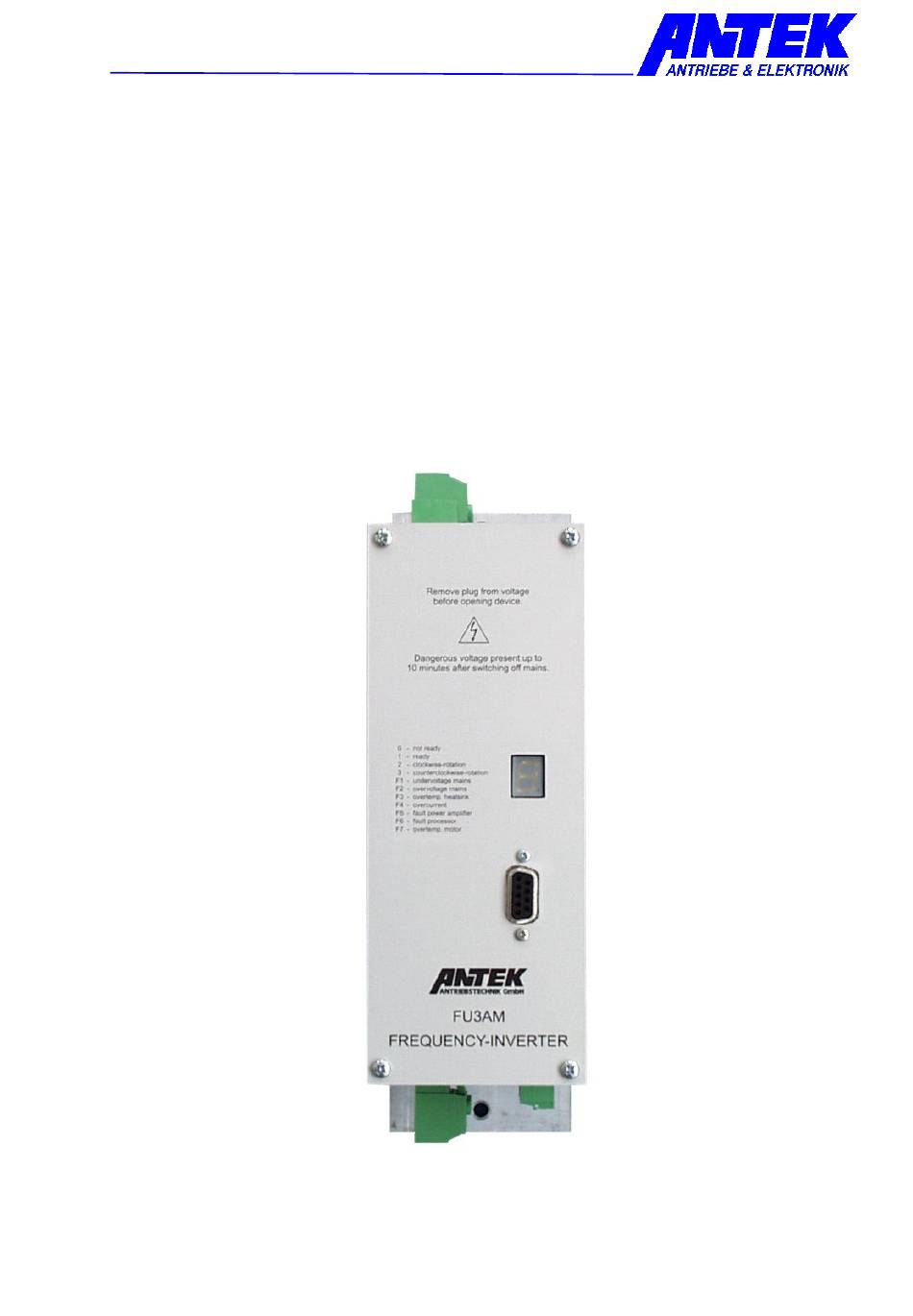

- Page 1 Operating Manual Frequency Converter FU3AM-03 Digital frequency inverter for stepless speed control of asynchronous-three-phase a.c. motors...
- Page 2 Operating Manual Frequency inverter FU3AM-03 Document R0086EGB.doc Version 05/13...
-
Page 3: Table Of Contents
4.6 C ONTROL CONNECTION 4.7 D IGITAL BIT SET VALUE PARALLEL INPUT 4.8 B RIDGE CONNECTOR FOR ONE FAULT SAFETY 5. COMMISSIONING 5.1 S WITCH ON SEQUENCE 5.2 D ISPLAY 6. SERVICE INFORMATION Operating Manual FU3AM-03 Page 3 of 30... - Page 4 9. REVISION INDEX 9.1 D OCUMENTATION 9.2 D EVISE 10. INDEX -Errors and omissions excepted, subject to alterations- ANTEK GmbH Im Köchersgrund 1 71717 Beilstein +49 7062 94060 +49 7062 940620 info@antek-online.de www.antek-online.de Page 4 of 30 Operating Manual FU3AM-03...
-
Page 5: Preface And General
♦ Short launch times when using prefabricated and pre-inspected cable sets. ♦ Service-friendly connection technology ♦ Display shows every device status at a glance ♦ Well-arranged device programming with ANTEK UniDesk ♦ PC interface: standard-compliant RS 232 jack ♦ Interference suppression class “A”... -
Page 6: Disclaimer
The process-specific instructions and circuit extracts contained in this manual are recom- mendations. Their applicability to the task in hand must first be verified. The firm ANTEK GmbH assumes no liability for the suitability of the processes described and the suggested circuits contained herein. -
Page 7: Safety
In the case of applica- tions in installations with technical safety requirements and with regard to installation, the relevant laws and regulations must be complied with (e.g. EN 57100, EN 60204). Operating Manual FU3AM-03 Page 7 of 30... -
Page 8: Operator Responsibilities
♦ The allowed ambient temperature and the relative air humidity must not to be exceed (if required provide separate cooling). ♦ The inverter causes power loss and heats up the environment. Ensure a sufficient dis- tance from heat-sensitive equipment. Page 8 of 30 Operating Manual FU3AM-03... -
Page 9: Electrical Installation
♦ ”Suitable for use on a circuit capable of delivering not more than 5kA rms symmetrical amperes” for a max. voltage of 480 V. Motor over temperature sensing according UL 508C is not provided by the drive or equivalent. Operating Manual FU3AM-03 Page 9 of 30... -
Page 10: Information On Emc
Generally all metallic conducting parts which can be connected to a protective conductor, such as cabinet frames, motor frames, foundation grounding, etc. are designated as a ground. Page 10 of 30 Operating Manual FU3AM-03... -
Page 11: Operation Of The Frequency Inverter
2.11 Important instructions on routing of wires Control lines and power cables must always be routed separately with a gap between them. Tacho inputs, set point and analogue control inputs must be laid using shielded cables. Operating Manual FU3AM-03 Page 11 of 30... -
Page 12: Technical Data
Technical specifications are based on 400 VAC mains input voltage, cycle frequency 4 kHz, 1000 m installation height, unless otherwise stated. Note: Here is no fuse in the unit for the mains supply. It is essential to provide motor protecting switch, since the unit is not protected otherwise. Page 12 of 30 Operating Manual FU3AM-03... -
Page 13: Limiting Values
% 1 0 0 0 2 0 0 0 3 0 0 0 4 0 0 0 5 0 0 0 /140 /158 /104 /102 Temperature in °C Operating Altidude in m /°F Operating Manual FU3AM-03 Page 13 of 30... -
Page 14: Dimensions
Chapter 3: TECHNICAL DATA 3.4 Dimensions Socket screw M5x20 with washer and spring ring captive FU3AM Page 14 of 30 Operating Manual FU3AM-03... -
Page 15: Description Of Connection
Chapter 4: DESCRIPTION OF CONNECTION 4. Description of connection 4.1 All connections at a glance Operating Manual FU3AM-03 Page 15 of 30... -
Page 16: Clamp Assembly
X1: Mains connection (see sec: 4.3) X2: Motor connection (see sec.: 4.4) X3: Mains contactor (see sec.: 4.5) X4: Control connection (see sec.: 4.6) X5: Set point parallel input (see sec.: 4.7) X6: Strapping plug (see sec.: 4.8) Page 16 of 30 Operating Manual FU3AM-03... -
Page 17: Motor Connection Plug X1 To Top Of Device
X3-2 Auxiliary contact Signal contact (N.O.) X3-3 0V Mains protection coil X3-4 +VDC Mains protection coil (excitation volt- age external) Cable cross section: 0.4 … 1.5 mm2 (AWG 21 … 16) single/fine strand Operating Manual FU3AM-03 Page 17 of 30... -
Page 18: Control Connection X4
X4-5 GND Analogue set value (reference GND) X4-6 Soll 0 … 10VDC input resistance = 100 kOhm X4-3 GND Input f. impulse device tacho (2-wire technology) X4-4 Tacho Special impulse device for ANTEK drives Page 18 of 30 Operating Manual FU3AM-03... - Page 19 X4-14 RF Low-High-Flank = fault reset X4-15 Reset Low = 0 ... +2VDC or open High = +15 ... 30 VDC Cable cross section: 0.4 … 1.5 mm2 (AWG 21 … 16) single/fine strand Operating Manual FU3AM-03 Page 19 of 30...
-
Page 20: Digital 10-Bit Set Value Parallel Input X5
High = +15 ... 30 VDC Cable cross section: 0.4 … 1.5 mm² (AWG 21 … 16) single/fine strand 4.8 Bridge connector for one-fault safety Bridge connector for wiring of the one-fault safety Page 20 of 30 Operating Manual FU3AM-03... -
Page 21: Commissioning
(This fault is triggered only during controller en- able) Drive switched off. Check power supply. (3.1) F2- Overvoltage : the intermediate circuit voltage has exceeded a criti- cal value. Drive switched off. Check power supply, check motor braking energy. (3.1) Operating Manual FU3AM-03 Page 21 of 30... - Page 22 If this fault occurs repeatedly, please inform the manufac- turer. F7- Overtemperature motor: motor has become too hot. Drive switched off. Check the load on the motor, ensure motor is cooled, and check parameters. Page 22 of 30 Operating Manual FU3AM-03...
-
Page 23: Service Information
Transit time current threshold autoreset 0=no automatic reset Temp. Mot. threshold motor temperature Mot.-Sens. Temperature sensor motor source set value Set value specification over analogue voltage/fixed set value or over digital inputs SW_0 … SW_9 Operating Manual FU3AM-03 Page 23 of 30... -
Page 24: Configuration Und Useful Information On Parameters
(e.g. during start-up). In the static mode, the signal output is permanently closed. 6.2.1.3 f-Takt The pulse frequency of output stage is to adjust by the parameter f-Takt. Lower cycle frequency better device efficiency Higher cycle frequency lower current ripple quieter running Page 24 of 30 Operating Manual FU3AM-03... -
Page 25: Characteristic Curve
Analogue set point voltage It must be noted that the physical range of the set point voltage remains restricted to 0...10V. Fixed set points are programmed by parameters ‘#1’, ‘#2’ and ‘#3’. See also section 4.6. Operating Manual FU3AM-03 Page 25 of 30... -
Page 26: Automatic Reset
If the motor current exceeds the peak current (I-max), the device is cut off. If the average motor current exceeds the continuous current limit (I-Cont) over a certain time, the device is cut off. The time constant is set with the parameter t-I-red. Page 26 of 30 Operating Manual FU3AM-03... -
Page 27: Finding And Eliminating Faults
If you return the unit for testing or repair, please provide the following information: ♦ type of fault ♦ accompanying circumstances ♦ suspected cause of the fault ♦ unusual preceding events Operating Manual FU3AM-03 Page 27 of 30... -
Page 28: Operating Software
Chapter 8: OPERATING SOFTWARE 8. Operating software 8.1 UniDesk In order to be able to parameterise and monitor the frequency inverter FU3AE-04, ANTEK UniDesk monitor software is required. The current version of UniDesk is available for downloading at www.antek-online.de More information on UniDesk is found in the file UniDesk_Beschreibung.pdf, which is includ- ed in the program package. -
Page 29: Revision Index
HW-Workaround because of Infineon-Fault (Errata Sheet C508- • 4E, ES-AA, AA, Release 1.8, Item OTP.1) Residual voltage be- fore switching on. SW: Correction standardisation U/f characteristic for high • frequencies 1.06 0303 Digital 10-bit set value • Operating Manual FU3AM-03 Page 29 of 30... -
Page 30: Index
Switch cabinet 11 Temperature sensor 9 Laws 7 Tightening torque 17 Loss current 11 Undervoltage 22 Mains voltage 22, 29 UniDesk 22, 30 Motor 8, 9, 24, 26, 27, 29 Motor cable 29 Vibration 9 Page 30 of 30 Operating Manual FU3AM-03...
