950 TILT TOP OVER BED TABLE
ASSEMBLY AND OPERATING INSTRUCTIONS

PARTS LIST

1 Release Handle (101044)
2 15 x 30 Table Top
3 Tilt Lock Lever (093025)
4 3/8 -16 x 2 ¼ bolt (BT05)
5 3/8-16 Lock Nut (N06)
6 Column Assembly (95001)
7 Base with Caster Plugs
ASSEMBLY INSTRUCTIONS

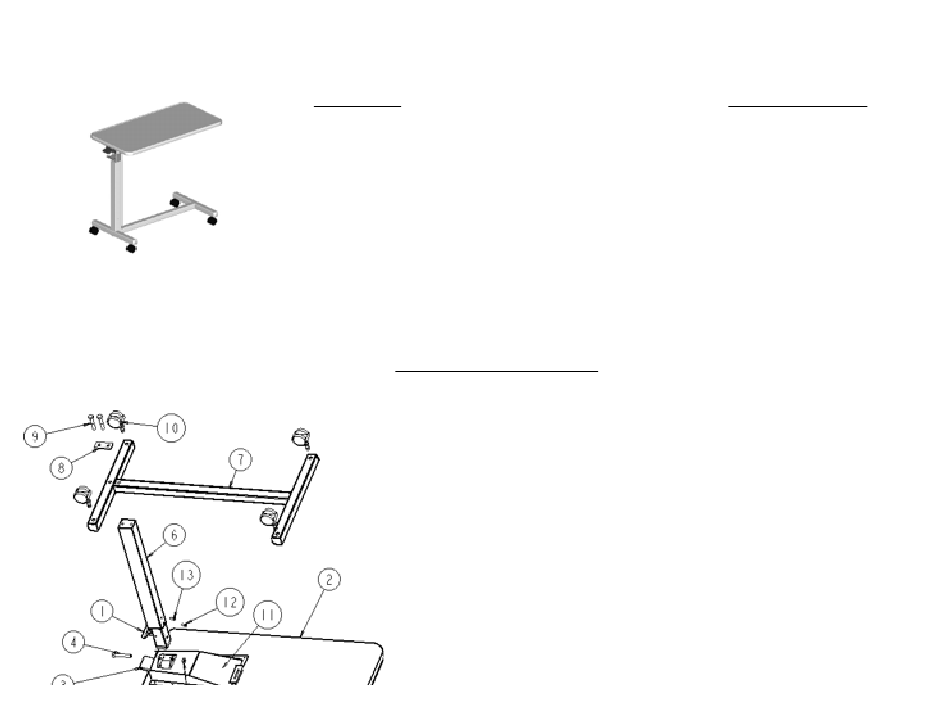

Lay tabletop Assembly (#2 &#11) on workbench or floor with top bracket assembly facing up,
1
as shown in Fig. 2.
Install column assembly into top bracket as shown with release handle facing away fro table
2
top edge (fig. 2). Insert 2 ¼" bolt (#4) through top bracket and column assemblies. Fasten
with locknut (#5)
Lay the base flat with holes facing up and insert a caster (#10) into each hole. (4 casters total)
3
Place the two bolts (#9) into the bolt plate (#8) and place through the base (#7). Hold base
4
steady while hand tightening bolts (#9) into column (#6).
Align the base and top assembly by laying the table on its side, resting on the edge of the top
5
and the black caster plugs. Tighten the bolts (#9) with a 9/16" wrench.
8 Bolt Plate (101023)
9 3/8 –16 x 2 bolts (BT01)
10 Casters (CA02)
11 Top Bracket (093008)
12 Black Shipping Screw
13 Zinc Screw (do not remove)
(SC12)

TOOLS REQUIRED

9/16" WRENCHES
PHILIPS SCREW DRIVER
