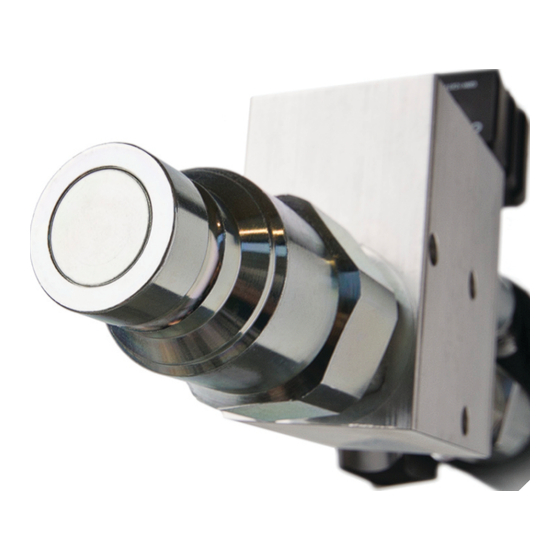

INSTALLATION GUIDE
Quick
Fit
™
INSTALLATION GUIDE
KIT # 300755
ALTORFER APS375G
Tool Requirements:
• Loctite® L592 or equivalent
• Drill w/ bits up to 1/2"dia.
• Wrenches up to 1 1/2"
• Standard & Metric socket sets
• Standard Allen key set to 3/4"
FOR TECHNICAL ASSISTANCE CALL 1-800-255-2250
FOR TECHNICAL ASSISTANCE CALL 1-800-255-2250
13019
RPM Industries, LLC • 1660 Jefferson Ave. • Washington, PA 15301
™
QuickFit is a trademark of RPM Industries, LLC
Phone: 1-800-255-2250 • www.rpmindustries.com • M-F 8:00AM - 5:00PM EST
Advertisement
Table of Contents
Summary of Contents for RPM Industries QuickFit 300755
- Page 1 FOR TECHNICAL ASSISTANCE CALL 1-800-255-2250 FOR TECHNICAL ASSISTANCE CALL 1-800-255-2250 13019 RPM Industries, LLC • 1660 Jefferson Ave. • Washington, PA 15301 ™ QuickFit is a trademark of RPM Industries, LLC Phone: 1-800-255-2250 • www.rpmindustries.com • M-F 8:00AM - 5:00PM EST...
- Page 2 2. Engine Pressure Port Installation Remove M26 plug from cooler and install 106257 adapter Install 106258 check valve assembly with orientation shown FOR TECHNICAL ASSISTANCE CALL 1-800-255-2250 Page 2 of 6 13019 ™ QuickFit is a trademark of RPM Industries, LLC...
- Page 3 P-Clips Install 2x P-Clips here, attaching to manual drain w/ supplied 3/8” hardware Install 106265 hose assembly as shown FOR TECHNICAL ASSISTANCE CALL 1-800-255-2250 Page 3 of 6 13019 ™ QuickFit is a trademark of RPM Industries, LLC...
- Page 4 Quick ™ INSTALLATION GUIDE Plumbing Diagram (Supplied Kit) 106262 PRESSURE SIDE SUCTION SIDE LAYOUT LAYOUT 106265 106264 106257 106200 106258 FOR TECHNICAL ASSISTANCE CALL 1-800-255-2250 Page 4 of 6 13019 ™ QuickFit is a trademark of RPM Industries, LLC...
- Page 5 103412 106263(2) PRESSURE SIDE 103411 103411 3/8”-16x1.5” (42”) (14.5”) LAYOUT 106257 106200 100607 106013 105275 101328 105307(2) SUCTION SIDE 1/4”-20x3” LAYOUT FOR TECHNICAL ASSISTANCE CALL 1-800-255-2250 Page 5 of 6 13019 ™ QuickFit is a trademark of RPM Industries, LLC...
- Page 6 Hose Assy - 2565 #10 - STR(10 JIC), ELB(10 JIC), 14.5" 106265 Hose Assy - 2565 #10 - M26x1.5 Banjo, STR(10 JIC), 42" FOR TECHNICAL ASSISTANCE CALL 1-800-255-2250 Page 6 of 6 13019 ™ QuickFit is a trademark of RPM Industries, LLC...
