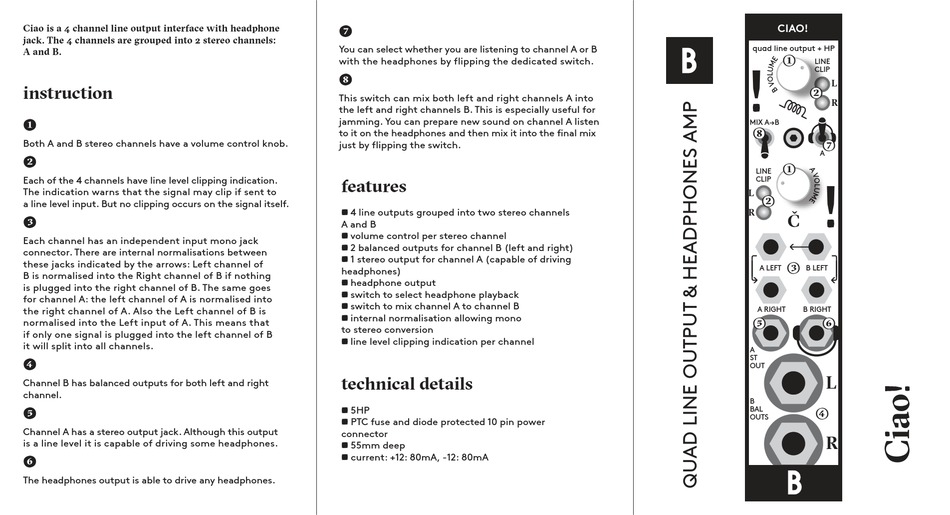

Bastl Instruments Ciao Instructions

Ciao is a 4 channel line output interface with headphone
jack. The 4 channels are grouped into 2 stereo channels:
A and B.
instruction
)
Both A and B stereo channels have a volume control knob.
)
Each of the 4 channels have line level clipping indication.
The indication warns that the signal may clip if sent to
a line level input. But no clipping occurs on the signal itself.
)
Each channel has an independent input mono jack
connector. There are internal normalisations between
these jacks indicated by the arrows: Left channel of
B is normalised into the Right channel of B if nothing
is plugged into the right channel of B. The same goes
for channel A: the left channel of A is normalised into
the right channel of A. Also the Left channel of B is
normalised into the Left input of A. This means that
if only one signal is plugged into the left channel of B
it will split into all channels.
)
Channel B has balanced outputs for both left and right
channel.
)
Channel A has a stereo output jack. Although this output
is a line level it is capable of driving some headphones.
)
The headphones output is able to drive any headphones.
)
You can select whether you are listening to channel A or B
with the headphones by flipping the dedicated switch.
)
This switch can mix both left and right channels A into
the left and right channels B. This is especially useful for
jamming. You can prepare new sound on channel A listen
to it on the headphones and then mix it into the final mix
just by flipping the switch.
features
� 4 line outputs grouped into two stereo channels
A and B
� volume control per stereo channel
� 2 balanced outputs for channel B (left and right)
� 1 stereo output for channel A (capable of driving
headphones)
� headphone output
� switch to select headphone playback
� switch to mix channel A to channel B
� internal normalisation allowing mono
to stereo conversion
� line level clipping indication per channel
technical details
� 5HP
� PTC fuse and diode protected 10 pin power
connector
� 55mm deep
� current: +12: 80mA, -12: 80mA
CIAO!
quad line output + HP
)
LINE
!
CLIP
L
)
R
MIX A→B
)
)
A
)
LINE
!
CLIP
L
)
R
Č
)
A LEFT B LEFT
A RIGHT B RIGHT
) )
A
ST
OUT
L
B
BAL )
OUTS
R
