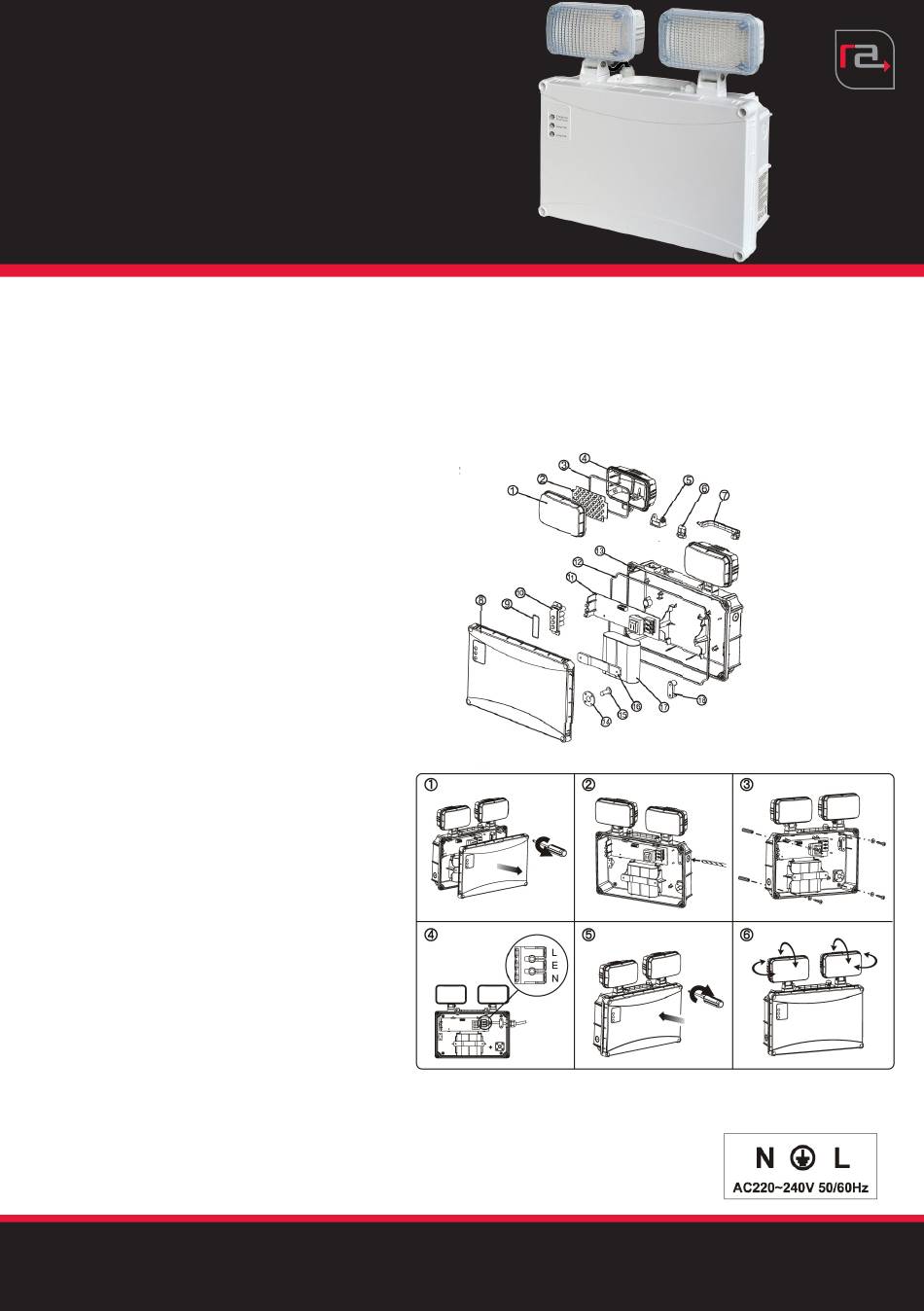

Red Arrow Trading LF292LED-IP Installation Instructions

LED IP65 Emergency
Twin Spot
Installation Instructions
p.1
For models: LF292LED-IP
This installation must be carried out by an electrician.
Please read these instructions carefully before installation.
Leave a copy for the user/maintenance engineer for future reference.

Specification

• 220-240V 50/60Hz
• 6.5W LED (2 x 54pcs)
• IP65
• 490 Lumens output
• 0.87 Power factor
• 6000K Colour Temperature
• 3 Hours emergency duration
• 1 Year guarantee

Contents

1. Lamphead Diffuser x 2
2. LED PCB x 2
3. Waterproof Rubber Loop x 2
4. Lamphead Housing x 2
5. Lamphead Holder x 2
6. Waterproof Joint x 4
7. Handle
8. Cover
9. Waterproof Rubber Loop
(Indicator)
10. Light Guide Tube
11. Main PCB
12. Waterproof Rubber Loop
(Bottom Case)
13. Bottom Case
14. Holder of Rubber Ring
15. Rubber Ring
16. Battery Holder
17. Battery
18. Holder of Power Line
Red Arrow Trading
Elsworth House, Herries Road South, Sheffield, S6 1QS
Contents Diagram
Installation
1. Fix the fitting to the wall. IMPORTANT NOTE: TO EXTEND
BATTERY LIFE PLEASE INSTALL FITTING LAMP SIDE UP .
2. Connect mains supply wiring as follows:
