SCG SKR600 Operation Manual

SKR600
Electronic RFID
Operation Manual
The picture is for reference only.

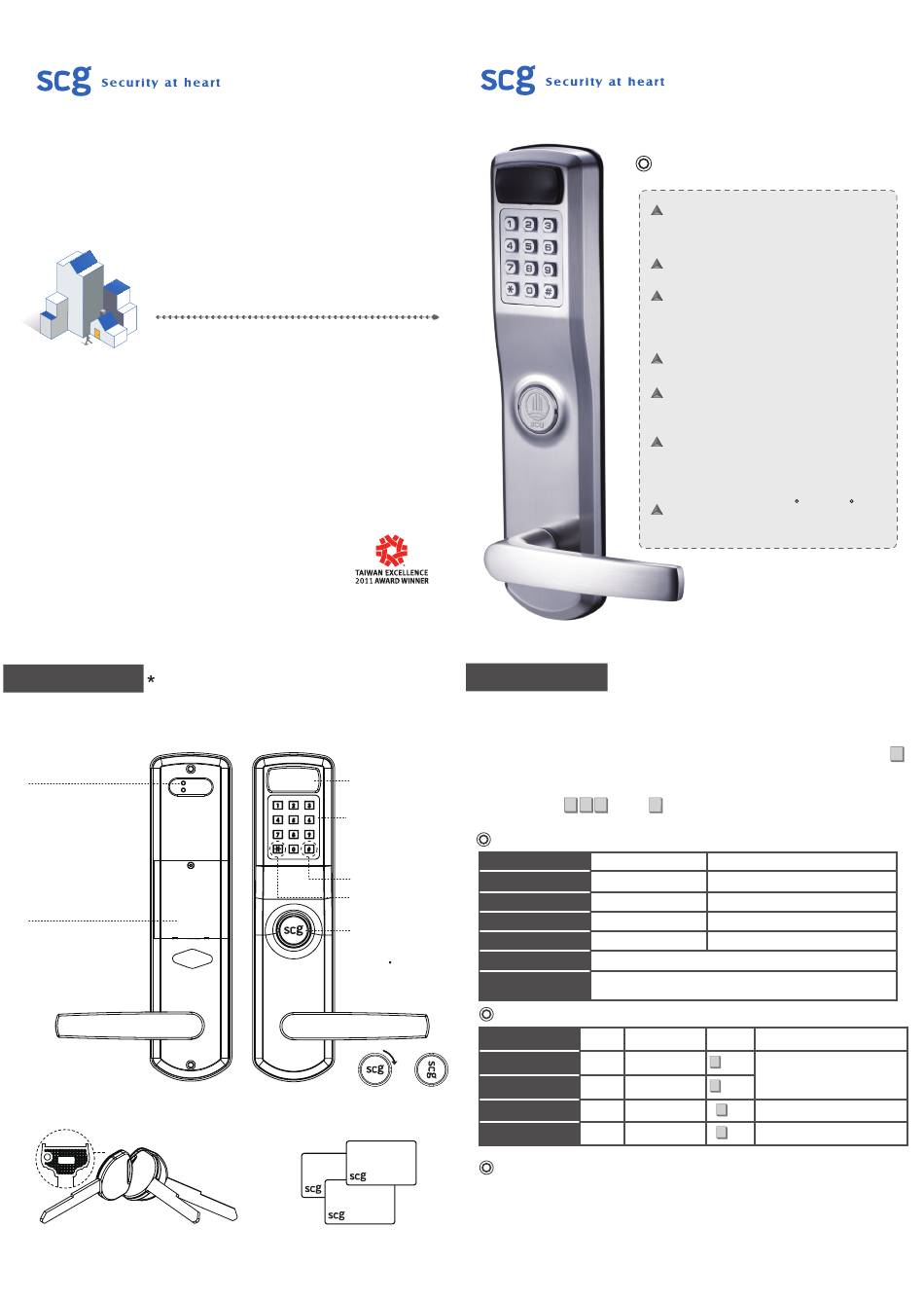

Product Overview
Please check the actual model for specific functions.
Interior plate
(Inside view)
Setting Button
Up Button：
Use it to add new keycards/
PIN codes
Down Button：
Use it to delete keycards/
PIN codes
Battery Cover
Use the special tool provided
to open
Emergency Override Key
3 keys provided per lock
Keypad Door Lock
&
Exterior plate
(Outside view)
Sensor
Keypad
PIN codes consist of 4~8
digits numbers can be
repeated
Confirm/Exit Button
Select Button
Keyhole Cover
Horizontally position the
key and turn the keyhole
cover 90 clockwise to
remove it then unlock with
the key
Before
--Accessories--
RFID Keycards
Unlocking Methods
1.Mechanical Key : Horizontally position the key and turn the keyhole cover 90 degrees
clockwise to remove it then unlock with the key.
2.Keycard : Press any button to enter the system, simply place the RFID card to the sensor.
3.PIN Code : Press any button to enter the system, enter assigned PIN code and press
to confirm.
4.Passage Mode : Place the RFID card to the sensor or enter assigned PIN code and press
＊ ＃ ＊
Door Lock Status
Status
Operation Successful
Operation Failed
Enter/ Exit Setup Mode
Low Battery
Door Opened Indication
1 beep after the right Keycard or PIN code that the lock is open.
After depressing the lever, the door is locked 1.5 seconds after
Door Closed Indication
the lever comes back to the horizontal position.
Types of No.
Type
Quantity
Administrator 4 sets
User 94 sets
After
Single-Entry User 1 set
Volume
1 set
Notice
．The factory default admin. PIN code is 123456. It is highly recommended to change the
code upon installation of the lock.
．Only one PIN code or one Keycard can be set per No. of location.
．Please turn to the last page to restore to the factory default settings.
．There is no need to reset after battery replacement with the memory function.
•It can't enter the setup mode during passage mode.
SKR600 Specification
Dimension -- Panels：
290(H) x 70(W) x 72 (D)-(mm)
Approximate Weight：4520 g
Door Thickness：
45mm ~ 55mm
56mm ~ 80mm
Standard US Mortise Lockbody
Use 4AA Alkaline batteries (1.5V)
(not included)
Others：
RFID Sensor
Digital Pad (Metal & Waterproof)
Temperature：-10 C ~ 70 C
. Press ＃ to lock.
Light Sounds
Blue
Red
3 beeps
Blue / Red 2 beeps
Red
5 continuous beeps
Function No.
＊ 00~03
Add/Modify/Delete
Unlocking Keycards or PIN codes.
＊
04~97
Unlock the door
Can be used only Keycards or PIN codes be used
＊ 98
once
only once.
＊ 99
Sound volume
＃
1 beep
Instruction
