Summary of Contents for Buyers SnowDogg series

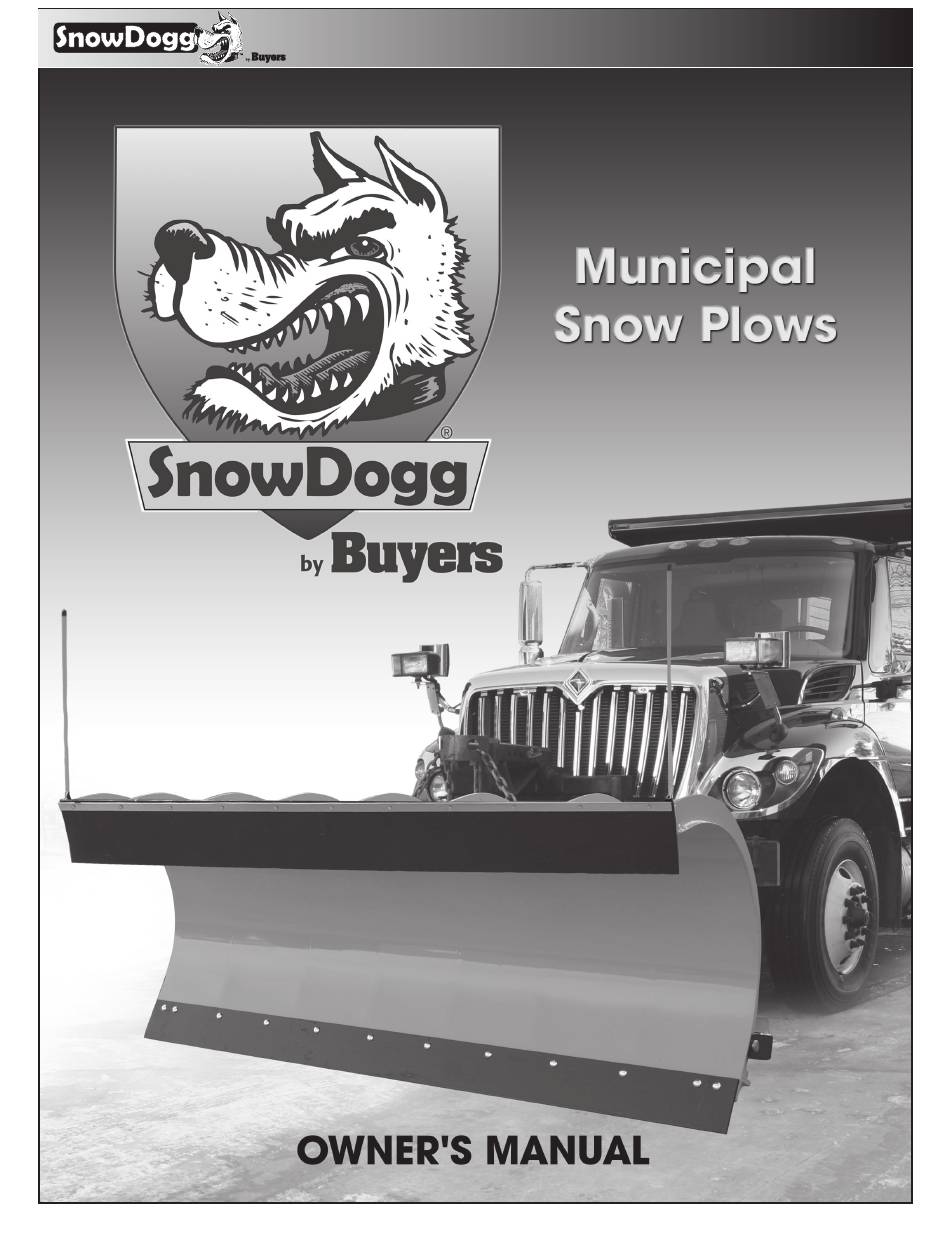

- Page 1 9049 Tyler Blvd. • Mentor, Ohio 44060 Phone (440) 974-8888 • Fax (440) 974-0165 Toll-Free Fax 800-841-8003 • snowdoggplows.com PATENTS PENDING 3020310 Rev C...
-
Page 2: Table Of Contents
3. Warnings/Safety Information ......... pg. 4 in materials and workmanship for a period of one (1) 4. Hitch Installation year after the date of original purchase. Buyers Products warrants accessories, service parts, and components Drop Pin ..............pg. 5 purchased separately to be free of defects in materials Pin Ear ................. -
Page 3: Registration Information/Website
WELCOME! Congratulations on your purchase of a SnowDogg plow! The SnowDogg plow by Buyers Products is a heavy-duty, professional grade plow built for your toughest plowing applications. By using this manual for maintenance and safety instructions, you can be sure to optimize the life of your plow. -
Page 4: Warnings/Safety Information
Warnings and Safety Information: WARNING Read this manual carefully before operating this snowplow. Make sure you fully understand how the plow operates before taking the controls. WARNING Always follow the vehicle manufacturer’s recommendations relating to snowplow installation. CAUTION Do not over load your vehicle: •... -
Page 5: Drop Pin
Drop Pin Hitch Installation Bill of Materials ITEM PART NO. QTY. DESCRIPTION – Hitch Assembly, Drop Pin 2-13 16340100 Mount Kit, Muni Fab, Bumper To Frame 16340102 Angle, Mount, Horizontal 16340104 Plate, Frame Mount, Side 16340106 Angle, Mount, Frame 16340108 Plate, Brace Mount, Lower 16340110 Bar, Brace... -
Page 6: Quick Hitch
Bill of Materials Quick Hitch Installation ITEM PART NO. QTY. DESCRIPTION — HITCH ASSEMBLY, QUICK HITCH 2-13 16340100 MOUNT KIT, MUNI FAB, BUMPER TO FRAME 16340102 ANGLE, MOUNT, HORIZONTAL 16340104 PLATE, FRAME MOUNT, SIDE 16340106 ANGLE, MOUNT, FRAME 16340108 PLATE, BRACE MOUNT, LOWER 16340110 BAR, BRACE 16340112... -
Page 7: Operating Instructions
Operating Instructions • Before plowing make sure plow is properly attached before • Inspect Hydraulic hoses for wear, damage or leakage. moving vehicle and make sure all attachment pins are Repair or replace as needed. securely in place. • Grease king pin and running gear. •... -
Page 8: 36" Full Trip Plow
36" Full Trip Plow Parts Diagram Bill of Materials ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION 16326110 PUSH FRAME, 36" MUNI PLOW 16101515 GREASE FITTING, 1/4 DRIVE SPECIAL 16316110 MOLDBOARD,10' X 36",CS,FT, MUNI 16352150 CYLINDER, 3" ROD X 10" STROKE 16317110 MOLDBOARD,11' X 36",CS,FT, MUNI 16-17... -
Page 9: 42" Full Trip Plow
42" Full Trip Plow Parts Diagram Drop Pin A-frame Swivel A-frame See Cutting Edge Page Cylinder Plumbing Bill of Materials ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION 16322110 PUSH FRAME, 10' X 42" FULL TRIP 12-13 16351005 KING PIN KIT, 2", W/ COTTER 16323110 PUSH FRAME, 11' X 42"... -
Page 10: 42" Trip Edge Plow
42" Trip Edge Trip Edge Parts Diagram Drop Pin A-frame Swivel A-frame Cylinder Plumbing Bill of Materials ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION 16322210 PUSH FRAME, 10' X 42" TRIP EDGE – PIN,TRIP,1-1/4" X 4",ZINC YELLOW 16323210 PUSH FRAME, 11' X 42"... -
Page 11: Drop Pin Hitch
PIN, CLEVIS, 1/2 X 1-9/16, ZN – PIN, COTTER, 5/16 X 2-1/2, ZINC – PIN, HAIR COTTER PLATE, SERIAL NUMBER, BUYERS MUNI HITCHES PLATE, SERIAL NUMBER, BUYERS MUNI HITCHES 16410015 DECAL, CAUTION, MUNI LIFT ARM 16410015 DECAL, CAUTION, MUNI LIFT ARM... -
Page 12: Pin Ear Swivel Adapter
HARDWARE KIT, SWIVEL ADAPTORS – PIN, COTTER, 1/4 X 2, ZN SCREW, HHC, 1.5"-6 X 4", GR8, ZY, W/HOLE PLATE, SERIAL NUMBER, BUYERS MUNI HITCHES NUT, SLOTTED HEX, 1.5"-6, ZY 16410015 DECAL, CAUTION, MUNI LIFT ARM PIN, COTTER, 1/4" X 3", ZINC... -
Page 13: Hydraulic Cylinders
Hydraulic Cylinder Diagrams Double Acting Cylinders - Style A PART NO. DESCRIPTION BORE SEAL KIT 16352100 CYLINDER, 3"X10", DA,1-1/2" CHROME ROD 3" 16352105 16352200 CYLINDER, 4"X10", DA, 2" CHROME ROD 4" 16352205 NOTE: FOR USE ONLY ON 42" TALL PLOWS Double Acting Cylinders - Style B PART NO. -
Page 14: Compression Spring Assembly
Trip Spring Assembly Bill of Materials ITEM PART NO. QTY. DESCRIPTION 16350100 TRIP SPRING ASSEMBLY, 42" MUNI PLOW 16350102 TRIP SPRING ASSEMBLY, 36" MUNI PLOW 16350105 SPRING BAR WELDMENT, UPPER, 42" PLOW 16350107 SPRING BAR WELDMENT, UPPER, 36" PLOW 16350110 SPRING, COMPRESSION, MUNI 16350115 SPRING BAR WELDMENT, LOWER... -
Page 15: Curb Guards
Curb Guards Markers Bill of Materials 6" Curb Guard ITEM PART NO. QTY. DESCRIPTION 16360100 MARKER KIT, MUNI PLOW, 36", ORANGE Bill of Materials 16360110 MARKER KIT, MUNI PLOW, 28", ORANGE ITEM PART NO. QTY. DESCRIPTION MARKER, 36", ORANGE 16360405 CURB GUARD, 6", SINGLE, W/ HARDWARE MARKER, 28", ORANGE –... -
Page 16: Moldboard Shoes
Moldboard Shoes Running Gear Parts 6" Moldboard Shoe Bill of Materials ITEM PART NO. QTY. DESCRIPTION 16360350 SHOE KIT, 6" MOLDBOARD, CAST W/ HDW – SHOE, 6" MOLDBOARD, CAST – BOLT, CARRIAGE, 5/8-11 X 4, GR5, ZN – NUT, NYLOCK, 5/8-11, ZN Bill of Materials ITEM PART NO.
