Summary of Contents for Redtech TRAILERteck T05

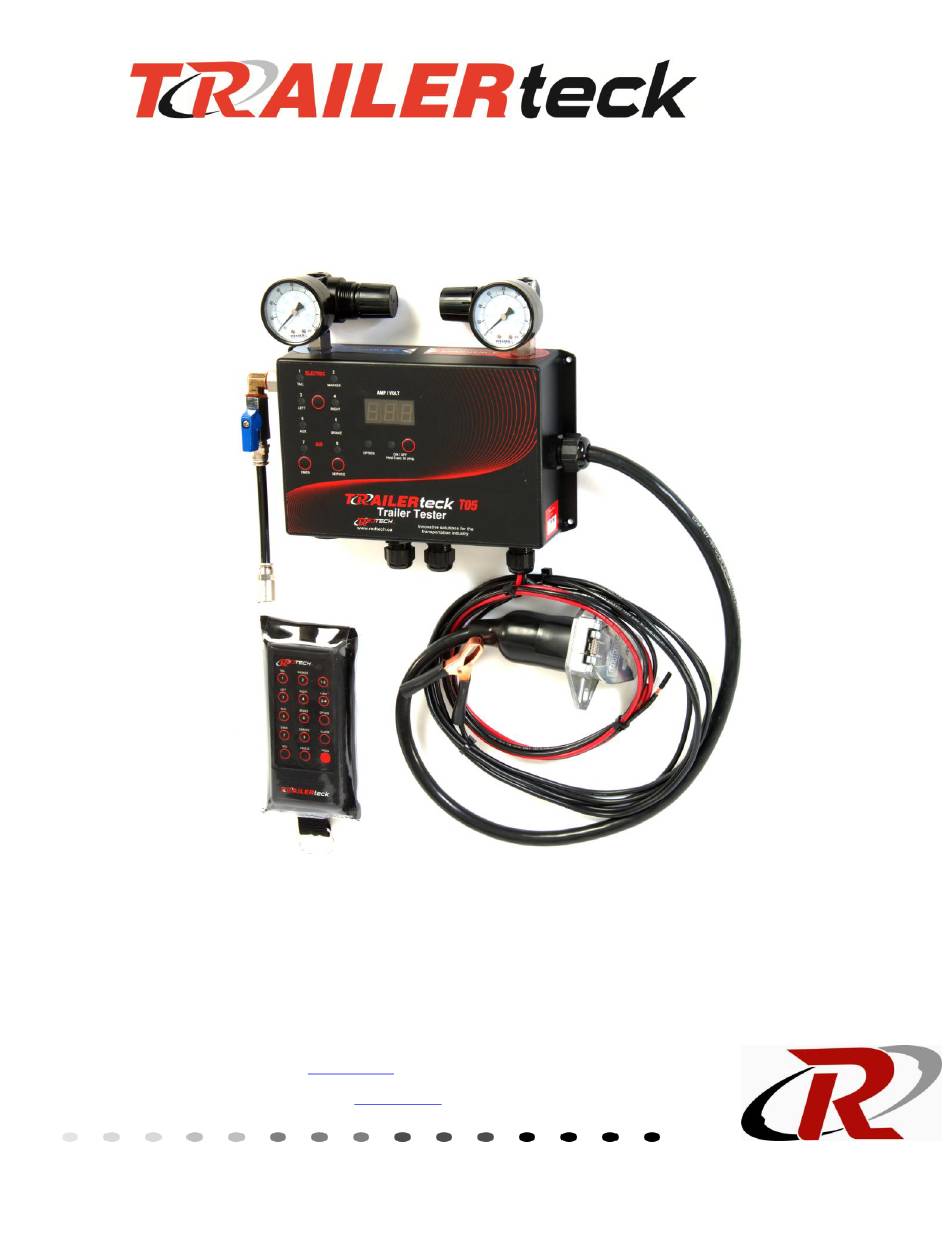

  • Page 1 Wireless Trailer Tester User manual REDTECH inc. DézielDrummond 2775 rue St-Pierre, Drummondville, www.redtech.ca 3880 rue St-Pierre, Drummondville Québec, Can, J2C 7Y1 Québec, Can, J2B 6V2 T : (819) 474-3832 E-mail : info@redtech.ca T : (819) 395-4232 F : (819) 472-6487...
  • Page 2 Warning Welding: It is very important to avoid using the TRAILERteck T05 unit when welding is being carried out on the trailer. Doing so may create a current loop that will damage the unit. The unit as an electronic protection included inside and any damage to this protection will void the warranty.
  • Page 3 TRAILERteck T05 - Product Family T05-E (electric only) With 15-function remote T05-E T05-EP (electric and air only) With 15-function remote T05-EP T05-P With 15-function remote (electric / air / power supply) Charger / converter 45 amp Plug into 120v and it’s work...

  • Page 4: Control Panel

    CV4501 45A Power converter / charger Control panel Lights Buttons LED display Tail lights To switch manually from The LED screen flashes for a few one electrical function to the seconds when the device is turned Marker lights other on. At that time, the screen displays the battery voltage.
  • Page 5 15-function remote Electrical Label Description cord TAIL Brown Activates TAIL lights MARKER Black Activates MARKER lights LEFT Yellow Activates LEFT lights RIGHT Green Activates RIGHT lights Blue Activates Auxiliary BRAKE Activates BRAKE lights or electrical brakes EMER Air valve Send air to the trailer tanks Applies and releases BRAKES.
  • Page 6 GettGetting started The device needs to be hooked up to a 12-Volt power source (either a battery or our CV4501 power supply) Follow these few simple steps to get started:  Hook up an air line with an emergency glad hand to the emergency outlet (red) of the device. ...

  • Page 7: Diagnostic Functions

    Diagnostic functions Air leaks  Hook up shop air to the TRAILERteck unit  Hook up the unit to the semi-trailer Emergency Service  Turn on the EMERGENCY function  Allow the pressure to stabilize  Turn on the SERVICE function ...
  • Page 8 Appendix 1: 14-step sequence The sequence simulates the walk around a trailer by a mechanic while executing a sequence with the SEQ button on the 15-function remote. The goal is to check all the lights on the trailer using only this button. Right Front Back...

  • Page 9: Limited Warranty

    For the warranty to be valid the product must be returned intact without any modification unauthorized by the manufacturer. www.redtech.ca (877) 773-3832...
