luceco Mosi series Installation & Operating Instructions

LED IP65 Mosi Bulkhead
PART CODE: LBM290W11S40, LBM290B11S40,
LBM200W6S40, LBM200B6S40

SPECIFICATIONS

• Suitable for use with Mains voltage of 220-240V AC
•
This product must be disconnected before insulation
resistance testing of the lighting circuit
• Check for electrical cables and pipes before installation
TECHNICAL INFORMATION
Code Rated Voltage
LBM20X6S40 200-240V
LBM29X11S40 200-240V
THIS LUMINARE CONTAINS NO USER REPLACEABLE COMPONENTS.
650
LUMINAIRE
LUMENS
SUGGESTED METHOD OF INSTALLATION
The bulkhead is designed for mounting in any of the
following options: –
• Surface Wall Mounting
• Surface Ceiling Mounting

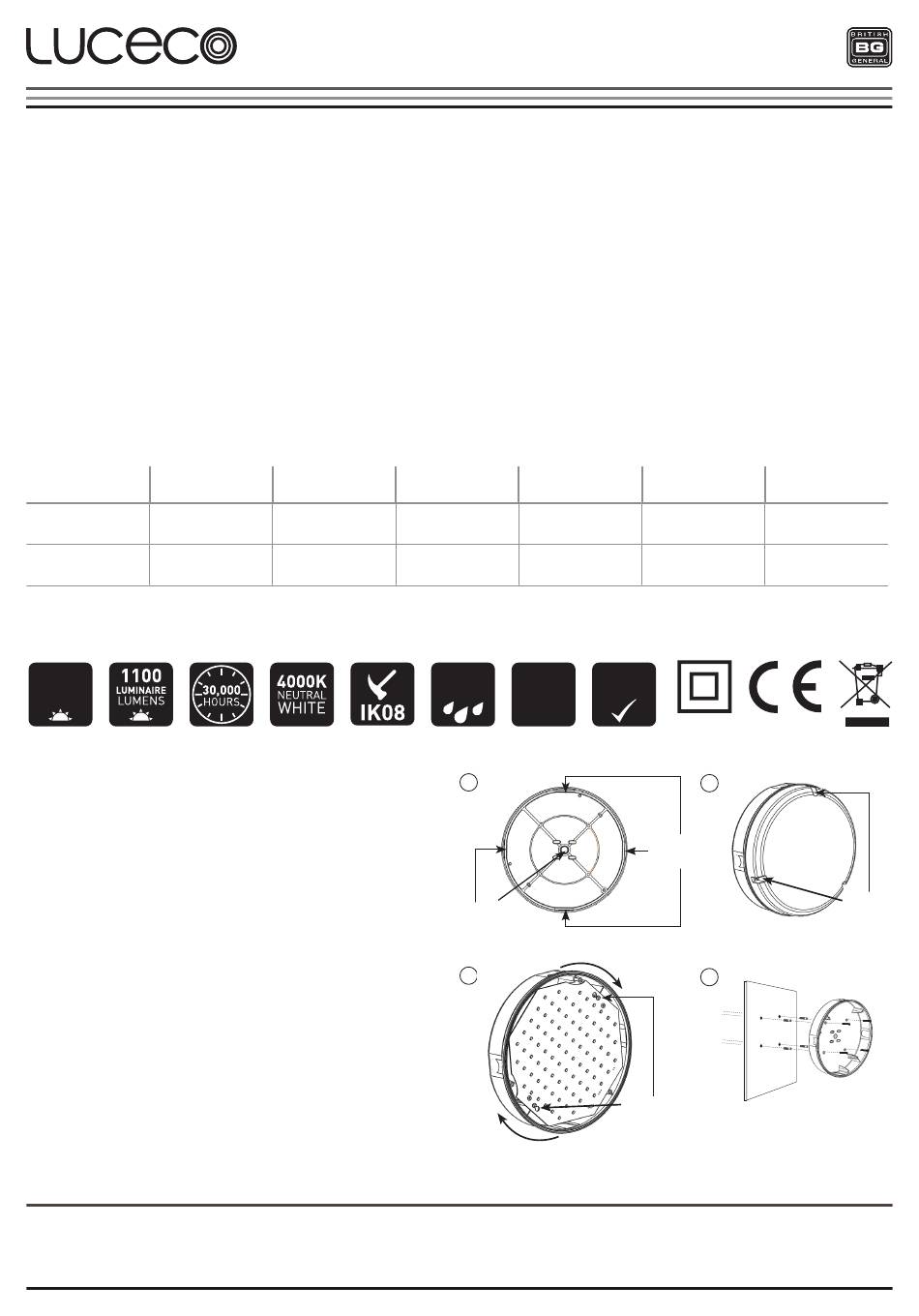

1. Surface mounted options may use rear cable entry for flush
mounting or there is facility for surface Conduit 'besa' box
mounting or side conduit entry. (Image 1)
2. With the method of mounting chosen, remove the front
Diffuser, by undoing the three front Screws. (Image 2)
3. To remove LED tray, loosen two retaining screws,
and twist tray clockwise and remove. (Image 3)
4. This Bulkhead can be mounted on ceilings and vertical walls.
Ensure the mounting surface is suitable for installation. Once
mounting points are decided, drill out mounting holes and any
cable entry points needed.
5. Cable Entry Points must be drilled out with a 20mm bit, cleaned of
any loose burrs and fitted with a suitable IP65 gland, if the IP65 rating
is to be maintained. Otherwise the IP rating would be reduced.
Tech Help Line
0845 194 7584
UK -
+44 (0)1952 238 100
Non UK -
Installation & Operating Instructions
Power Current
9W 45mA
14W 67mA
IP65
RATED
cable entry
Supplied by
BG Electrical Ltd
Stafford Park 1 TF3 3BD ENGLAND
Luceco is a registered trade mark of Nexus Industries Ltd.
NOTE – To comply with regulations, installation must be carried
out by qualified electrician and in accordance with the current IEE
Wiring Regulations (BS7671) and Building Regulations.
ENSURE ELECTRICAL SUPPLY IS DISCONNECTED/ISOLATED
BEFORE COMMENCING INSTALLATION
• To maintain the IP65 rating of the bulkhead, a suitable 20mm
cable gland should be used in conjunction with rubber
insulated cable to ensure the supply cable is sealed in the
gland. Failure to use a gland and/or rubber insulated cable
may result in water ingress
PF
>0.8
>0.8
3
year
CRI
>
GUARANTEE
80
1
points
3
screws here
Lumens with Lumens with
no diffuser diffuser
850 Llm 650 Llm
1400 Llm 1100 Llm
2
cable entry
points
4
loosen
Visit our website at
www.luceco.co
loosen
screws here
Page 1
