Summary of Contents for Shenzhen TZONE Digital Technology TZ-RD01

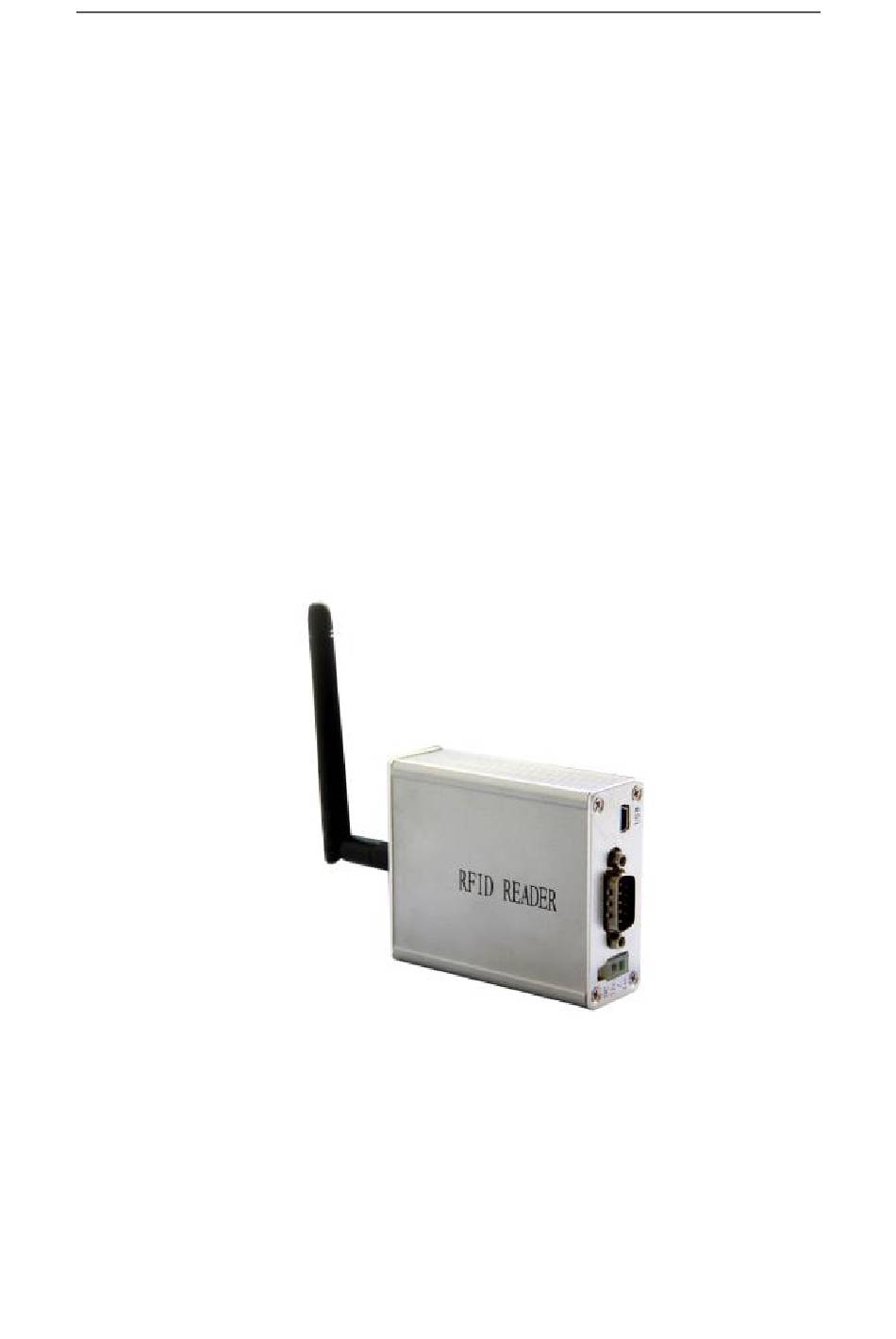

- Page 1 TZ-RD01 （TAG06） V1.7 ---User Manual...
-
Page 2: Product Overview
1 Product Overview TZ-RD01 is a card reader that designed to read all kinds of RFID tags in the long range of the radio frequency, using the universal ISM 433MHz ultra low power microwave frequency band remote identification communication equipment. - Page 3 Operating hum. 5% ~ 95% (non-condensing) IP level IP55 Dimension 78mm*66mm*26mm Extra interfaces: Interface Instructions Use specially designed USB cable connect to PC RS232 Output the data , For communications and other equipment POWER DC9—24V...
-
Page 4: Data Protocol
+ battery voltage (1byte) + temperature (2byte) + check code + end code (03) Begin character: 0x7F Data length: 1byte , After the data length and before the checksum; TZ-RD01 ID: TZ-RD01 ID depends on the command NO.04 TAG ID: received tag06 ID TAG status：1 byte bit7: Battery voltage status, 1-low Voltage, 0- Voltage normal；... - Page 5 As shown in figure 5-1, the first interface of PL2303 driver. Follow the default steps, it will be successful like figure 5-2. PL2303 driver build in 2009 is suggested, you can get it from the website. There is the vision of PL2303 driver checking way.
- Page 6 Figure 5-2 PL2303 Checking driver Figure 5-3 PL2303 choose version 2009/7/17...
- Page 7 5.2 Install sscom32 Please download from the Internet or contact sales download sscom32 serial port tools, and installed on the computer. 5.3 Configure sscom32 After completing the above steps will USB configure cable inserted into the computer USB port, and then open the sscom32, choose the corresponding COM port, baud rate is 115200, data bits is 8, stop bit is 1, parity None, flow control None and then click open the serial port.
- Page 8 Table 5.1 TZ-RD01 unify commands Instruction Format Note Set again the stress time *00,X# X: [0 ， 3600], unit 1S, 1 is default, 0 will disable this function Set ID *01,X# X:6bits, range [A-F] and [0-9] serial data *04,X# contain RD01’s ID...
- Page 9 Go to factory setting Restart the device Out configuration mode #DQ 6 Update TZ-RD01 firmware At the beginning of updating firmware, you must let the RD01 into update mode. 1. Cut off the power of RD01; 2. Push the DFU button;...
- Page 10 Figure 1-1 main board Figure 1-2 create a new connection...
- Page 11 Figure 1-3 choose the COM that has been used Figure 1-4 configure parameter...
- Page 12 Figure 1-5 waiting for updating Figure 1-6 choose the right firmware...
