Summary of Contents for Aztech RollRunner MH-400

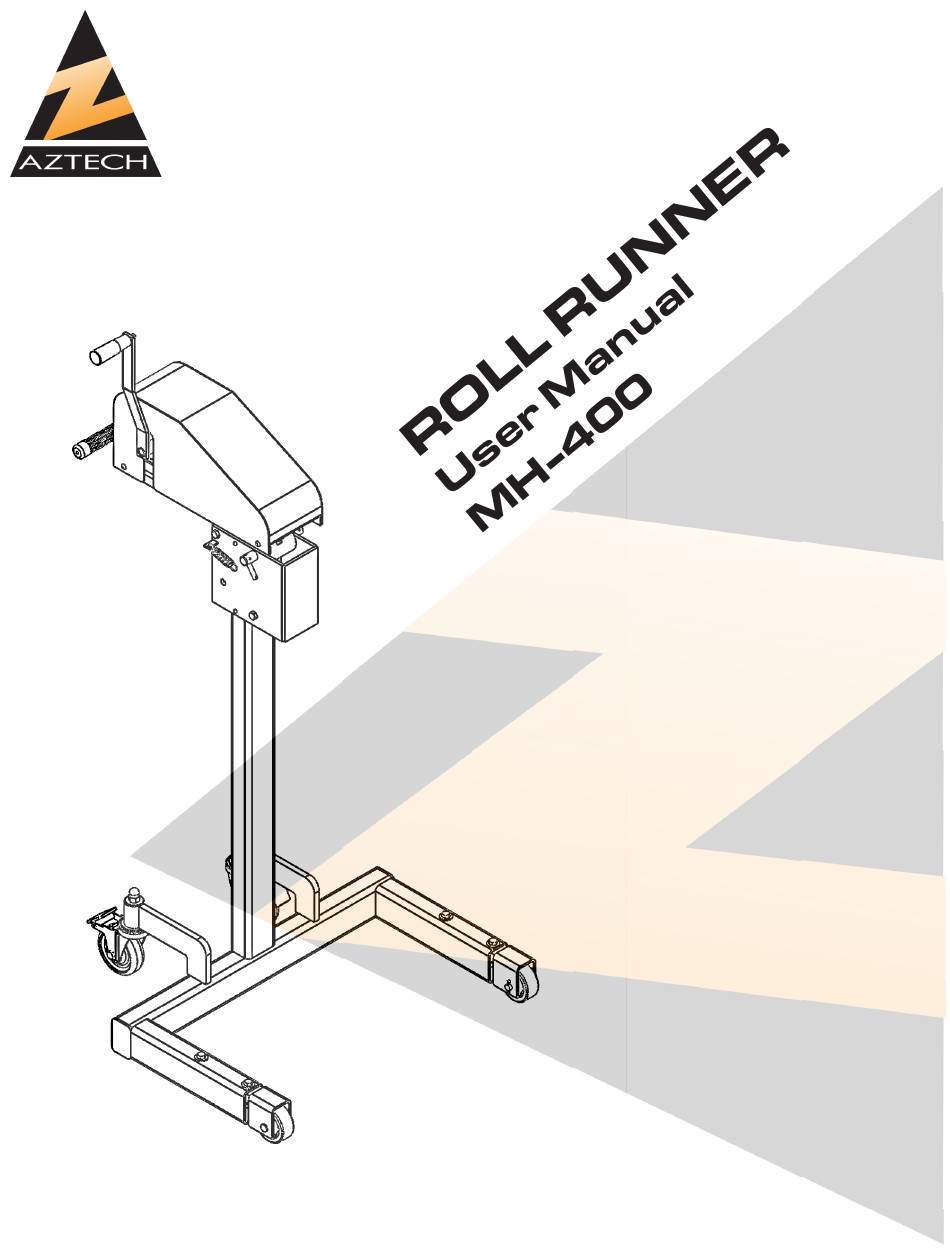

- Page 1 AZTECH CONVERTING SYSTEMS 212 W Lodge Drive TEMPE, AZ 85283 PHONE (480) 951-8351 FAX (480) 998-5409 www.aztechconverting.com...
-
Page 2: Table Of Contents
AZTECH CONVERTING SYSTEMS MH-400E USER MANUAL TABLE OF CONTENTS SECTION 1: GENERAL INFORMATION SECTION 2: MACHINE SETUP SECTION 3: MACHINE OPERATION SECTION 4: MAINTENANCE AND REPAIRS SECTION 5: TROLLEY BRAKE DETAIL SECTION 6: REPLACEMENT PARTS SECTION 7: WARRANTIES AND SERVICE... -
Page 3: Section 1: General Information
Section 1: General Information 1-1: Introduction The AZTECH RollRunner Model 400 Roll Handling Cart is designed and manufactured to help re- duce workplace injuries by performing various material handling functions utilizing AZTECH’s inno- vative quick-change attachment system. The RollRunner with its all-steel construction and simplis- tic design will prove to be an invaluable product for your work environment and is sure to provide your company many years of safe, dependable service. - Page 4 AZTECH CONVERTING SYSTEMS MH-400 USER MANUAL MH-400A MAX LOAD: 400 LBS (181 kg) MAX Lift Height: 38.25 (97cm) Dimensions: 28.25 X 34 X 50.75 All dimensions are inches unless otherwise specified Fig. 1-2: THE MH-400A Rev 1.0...
- Page 5 AZTECH CONVERTING SYSTEMS MH-400 USER MANUAL MH-400B MAX LOAD: 400 LBS (181 kg) MAX Lift Height: 48 (122cm) Dimensions: 28.25 X 34 X 50.75 All dimensions are inches unless otherwise specified Fig. 1-3: THE MH-400B...
- Page 6 AZTECH CONVERTING SYSTEMS MH-400 USER MANUAL MH-400C MAX LOAD: 400 LBS (181 kg) MAX Lift Height: 62.00 (157cm) Dimensions: 28.25 X 39 X 73.35 All dimensions are inches unless otherwise specified Fig. 1-4: THE MH-400C Rev 1.0...
-
Page 7: Section 2: Machine Setup
2 springs that activate grooves of the pulleys. sure they roll freely and are the safety brake have tension free of damage. If any visible and are attached at both ends. damage has occurred in ship- ment, contact AZTECH imme- diately. -
Page 8: Section 3: Machine Operation
AZTECH CONVERTING SYSTEMS MH-400 USER MANUAL Section 3: Machine Operation 3-1: Operating Lift To operate the lift, turn crank handle clockwise to raise and LOWER RAISE counter-clockwise to lower. ( see Figure 3-1) When raising the lift, make certain that the winch makes a clicking sound. - Page 9 AZTECH CONVERTING SYSTEMS MH-400 USER MANUAL 3-3 Changing Attachments The Rollrunner utilizes a EZ Change Attachment System which makes it capable of performing numerous tasks. To change attachments, simply lift attachment off the trolley and lower into place making certain that retainer tab slides into the Slot at the top of the trolley.
- Page 10 USER MANUAL SLIDE HANDLE FORWARD TO UNLOAD CORE EJECTOR CORE: Allows the operator to manually unload the roll without walking around the machine. BOOM ACESSORIES MAY BE ORDERED INDIVIDUALLY. Please contact your AZTECH sales representative for more information. Rev 1.0...
- Page 11 AZTECH CONVERTING SYSTEMS MH-400 USER MANUAL LOCK & LOAD EJECTOR: Allows the operator to automat- ically unload the roll by operat- ing a crank. RETRACT EXTEND...
-
Page 12: Section 4: Maintenance And Repairs
USER MANUAL Section 4: Maintenance and Repairs 4-1 Periodic Inspections To keep your RollRunner operating properly, AZTECH recommends performing the following peri- odic inspection: • Inspect cable for frayed strands or wear. If any are found, replace the cable immediately. -
Page 13: Section 5: Trolley Brake Detail
AZTECH CONVERTING SYSTEMS MH-400 USER MANUAL Section 5: Trolley Brake Detail... -
Page 14: Section 6: Replacement Parts
AZTECH CONVERTING SYSTEMS MH-400 USER MANUAL Section 6: Replacement Parts 6-1: Replacement Casters 6-2: Replacement Lift Cables MH-400A - 13907 FRONT: CAS002-781 REAR w/BRAKE: CAS084-894 MH-400B - 13908 MH-400C - 13909 Rev 1.0... -
Page 15: Section 7: Warranties And Service
IN OPERATING COSTS OR All equipment manufactured as provided herein. Any de- EXPENSES. and sold by AZTECH (Seller) is fective parts or material not warranted to be free of defec- excluded from the Warranty tive materials and workmanship...
