Inflowmatix InflowSense Quick Start Manual

Resilient, Adaptive and Steady-
State Water Supply Networks
QUICK START GUIDE
3. Commission - Step 2
4. After 5s System LED will go Blue.
5. GPS LED will go White while
obtaining fix then Blue when done.
6. Pressure LED will go White to tare
atmospheric, then Blue when done.
7. Communications LED will go White
while connecting, then Blue when
uploading.
8. System LED will flash Blue to show
data is being written to memory
9. Now connect pressure hose to
pressure port.
Device is ready to deploy.

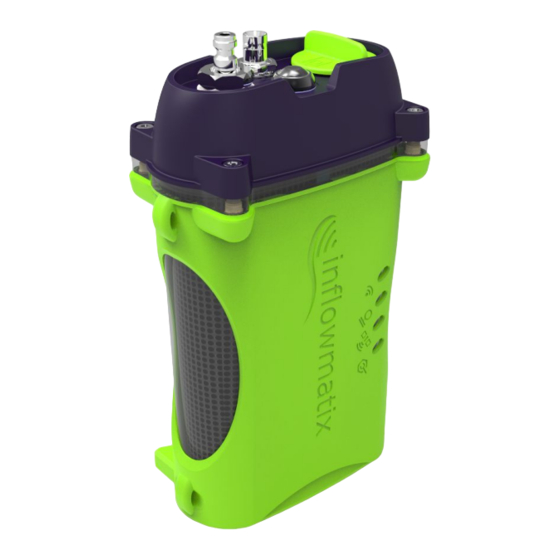

InflowSense™ Features
2
3
1
4
9
5
6
7
8
1 Pressure port
2 Aerial connector
3 Commission button
4 SIM and Power cover
5 Communication LED
6 Pressure LED
7 GPS LED
8 System LED
9 Case screws
10 Zip tie loop
11 GPS stand
10 11
4. Decommission Device
1. Lay device on GPS stand, GPS icon
pointing to the sky.
2. Press and hold commission button
for 5s then release.
3. All LEDs will go White to indicate
entering decommission then off
4. GPS LED will go White while
obtaining fix then Blue when done.
Once complete all LEDs will turn
White and then OFF
1. Power on
1. Loosen and remove SIM cover.
2. Using a pen gently slide switch ON.
3. Tighten SIM cover to mark on cap.
1
2
3
All four LEDs will go White for five
seconds and turn OFF.
5. Errors
If at any point the device is unable to
perform the key functions the
corresponding LED will show Red.
Please contact Inflowmatix on
07821 481386
for help with diagnosis
2. Commission - Step 1
1. Lay device on GPS stand as shown,
GPS icon pointing to the sky.
2. Before powering on, ensure
pressure hose is not connected.
3. Press and hold commission button
for 5s then release.
All LEDs will go Blue to indicate
entering commission mode.
6. Safety Warnings
Pressure Port
DO NOT exceed 35 bar pressure input.
Handling
The device is robust but handle with
care to avoid unnecessary damage.
The device contains Lithium Thionyl
Chloride batteries and should only be
serviced by authorised personnel.
