Summary of Contents for AD Elektronik MBSS

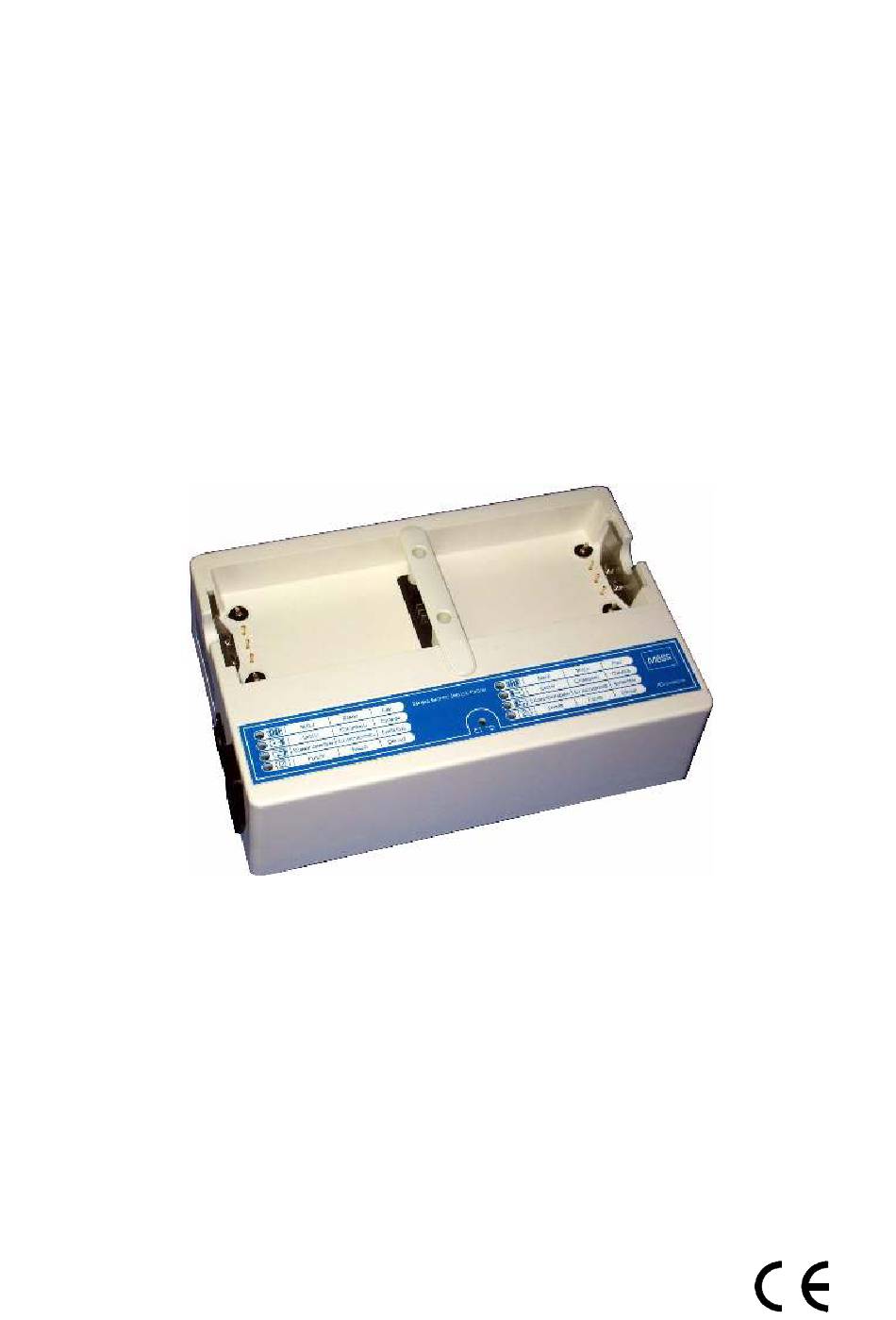

- Page 1 User Manual MBSS OBILE ATTERIE ERVICE TATION Before using the device, please read this user manual V1.4gb – Subject to technical changes without notification.
-
Page 2: Table Of Contents
12. Conditioning the batteries .............10 13. Errors ....................11 14. Troubleshooting ................12 15. Cleaning and disinfection..............13 16. Maintenance and Safety Test ............13 17. Packaging..................13 18. Disposal ..................13 19. Installation and use of wall mount for MBSS .......14 20. Specifications................15 21. EC Declaration of Conformity ............16... -
Page 3: Intended Use
User Manual "MBSS" Page 3 Intended use The "MBSS" charging station can be used to charge NiCd or SLA batteries of the ® ® ® Fastpak , Fastpak 2 and Lifepak series manufactured by Medtronic-Physio Control. Do not attempt to insert batteries of any other type or manufacturer. -
Page 4: Important Safety Instructions
User Manual "MBSS" Important safety instructions Before using the "MBSS" device for the first time, please read the following safety instructions carefully. The manufacturer, AD Elektronik GmbH, shall not be responsible and / or liable for any failure or damage originating from improper or negligent handling. -
Page 5: Charging Algorithm
Charging Algorithm • NiCd batteries The "MBSS" uses a special pulse charging algorithm which is monitored by a microcontroller. The battery is charged using high current and it is discharged periodically with an even higher current. The MBSS battery charger converts more energy into charging current than conventional constant current chargers and avoid the so-called memory effect to a large extent. -
Page 6: Power Supply
User Manual "MBSS" Power supply • Mains operation The "MBSS" can be operated with a mains power supply of 100 V~ to 240 V~ (AC), 50 Hz or 60 Hz. For connection use the included power cord only. Note Devices with extended voltage and frequency ranges, e.g. for operation in air- planes or helicopters are available on request. -
Page 7: Controls
User Manual "MBSS" Page 7 Controls To operate the "MBSS", there is no need to set any parameters. Therefore, there are no controls beside the mains switch (O/I). Warning ! The mains switch disconnects the device from the mains power supply only. -
Page 8: Symbols
EC guideline MDD 93/42/EWG. 10. Initial Operation Connect the "MBSS" battery charger to a safe mains power supply or the power supply of the vehicle by using the connecting cables supplied with the device. Please refer to section 6 of the user manual for technical specifications. -
Page 9: Charging The Batteries
EADY Note In case a battery with a higher rest charge is inserted while the "MBSS" is still working on another bay where a battery has been inserted with a lower rest charge, the battery with the higher remaining charge will be charged first. -
Page 10: Conditioning The Batteries
Initially, batteries will be completely charged and immediately discharged. Then, the batteries will be charged again. Whenever necessary, a "Smart Battery" will ask for this mode after insertion into the "MBSS". "MBSS" firmware releases V1.6 or later can be switched to "C "... -
Page 11: Errors
Both LEDs "F " flashing => "Power Supply Voltage Low" AILED - Power supply voltage low, e.g. because of low voltage of vehicle battery. Solution: Take the battery out of the bay or disconnect the "MBSS" from the power supply. -
Page 12: Troubleshooting
Page 12 User Manual "MBSS" 14. Troubleshooting • No function, operation, LED does not illuminate. Check connection to power supply. Set mains switch to position "I" Disconnect mains and change both fuses. Disconnect the panel above the mains switch first. Use fuses type "T1,0AL / 250V" only. -
Page 13: Cleaning And Disinfection
17. Packaging The "MBSS" is supplied in a reusable cardboard box. Please store the packaging for later use, i.e. in case of service, maintenance or repair. Please refer to the packaging instructions on the inside of the cardboard box. -
Page 14: Installation And Use Of Wall Mount For Mbss
Otherwise, the device may not operate properly. • Installation instructions - The 4 studs on the back of the "MBSS" fit into the 4 holes of the wall mount. Insert the studs into the slightly bigger openings and then push the device downwards while applying slight pressure. -
Page 15: Specifications
User Manual "MBSS" Page 15 20. Specifications 30 cm x 20 cm x 10 cm without mains plug and wall mount. Dimensions: 2.9 kg without battery and wall mount. Weight: Mains By IEC plug - Connection: 100 V~ ... 240 V~ (AC), 50 Hz ... 60 Hz - Voltage: Operation (Charge) max. -
Page 16: Ec Declaration Of Conformity
Page 16 User Manual "MBSS" 21. EC Declaration of Conformity...
