UK-electronic ©2012/15
Manual for the Kit Zentaurus Rev 1.21 with buffer
or True bypass
Page 1..............................................Cover
Page 2..3..........................................Allocations, basics
Page 4...5.........................................Bill of material
Page 6...7.........................................Soldering the pcb
Page 8.............................................Building
Page 9..............................................Wiring TB
Page 10............................................Wiring with buffer
Page 11...20....................................drill template, foil template, circuit diagram
Please download the manual at the store. Thank's!
2009/13 © UK-electronic
Advertisement
Related Manuals for UK-electronic Kit Zentaurus Rev 1.21
Summary of Contents for UK-electronic Kit Zentaurus Rev 1.21
- Page 1 UK-electronic ©2012/15 Manual for the Kit Zentaurus Rev 1.21 with buffer or True bypass Page 1..........Cover Page 2..3..........Allocations, basics Page 4...5.........Bill of material Page 6...7.........Soldering the pcb Page 8…..........Building Page 9..........Wiring TB Page 10..........Wiring with buffer Page 11...20........drill template, foil template, circuit diagram Please download the manual at the store.
- Page 2 Important connections of some components ICL7660SCPA TL 072 3PDT 2009/13 © UK-electronic...
- Page 3 Color table for resistors MF207 FTE52 1% and a example...
- Page 4 Bill of material Quantity Description resistor Resistor 390R (orange/white/black/black/brown) Resistor 560R (green/blue/black/black/brown) Resistor 1K (brown/black/black/brown/brown) Resistor 1K5 (brown/green/black/brown/brown) Resistor 1K8 (brown/grey/black/brown/brown) Resistor 2K (red/black/black/brown/brown) Resistor 4K7 (yellow/violet/black/brown/brown) Resistor 5K1 (green/brown/black/brown/brown) Resistor 10K (brown/black/black/red/brown) Resistor 12K (brown/red/black/red/brown) Resistor 15K (brown/green/black/red/brown) Resistor 22K (red/red/black/red/brown) Resistor 27K (red/violet/black/red/brown) Resistor 47K (yellow/violet/black/red/brown) Resistor 68K (blue/grey/black/red/brown)
- Page 5 Stereo jack 6,35mm 3PDT Switch DC-jack isolated (5,5/2,1) washer 10.4mm (Audio jacks) Washer 7,4mm (Potentiometer) Battery connector Adhesive self spacer 12,7mm LED bezel crome f. 3mm outer reflector Some coloured wire PCB Zentaurus REV 1.21. Cable fastener 2009/13 © UK-electronic...
- Page 6 Layout for True Bypass Layout for buffered version 2009/13 © UK-electronic...
- Page 7 DC jack and the bezel for the LED equipped.) The wires for the power supply (red and blue), as well as the output signal of lug 2 of the level pots, are already pre-wired. Wiring for True Bypass 2009/13 © UK-electronic...
- Page 8 PCB according to the above. To do this turn the circuit board on the component side. To solder the Green wires in the wiring diagram, (buffered version), from the bottom of the circuit board where the both 68 k and 100 k resistance are connected, as well as the two GE diodes. 2009/13 © UK-electronic...
- Page 9 As enclosure choose Hammond 1590BB or GEH 090. Drilling diameters: Audio jacks: 9.3mm DC-jack. 12mm 3PDT switch: 12mm LED Bezel : 6mm Have fun, the team of UK-electronic! Voltage chart: Power supply 9V DC , measured again GND!! IC3 7660S IC1 TL072 IC2 TL072 9.00V 4.5V...

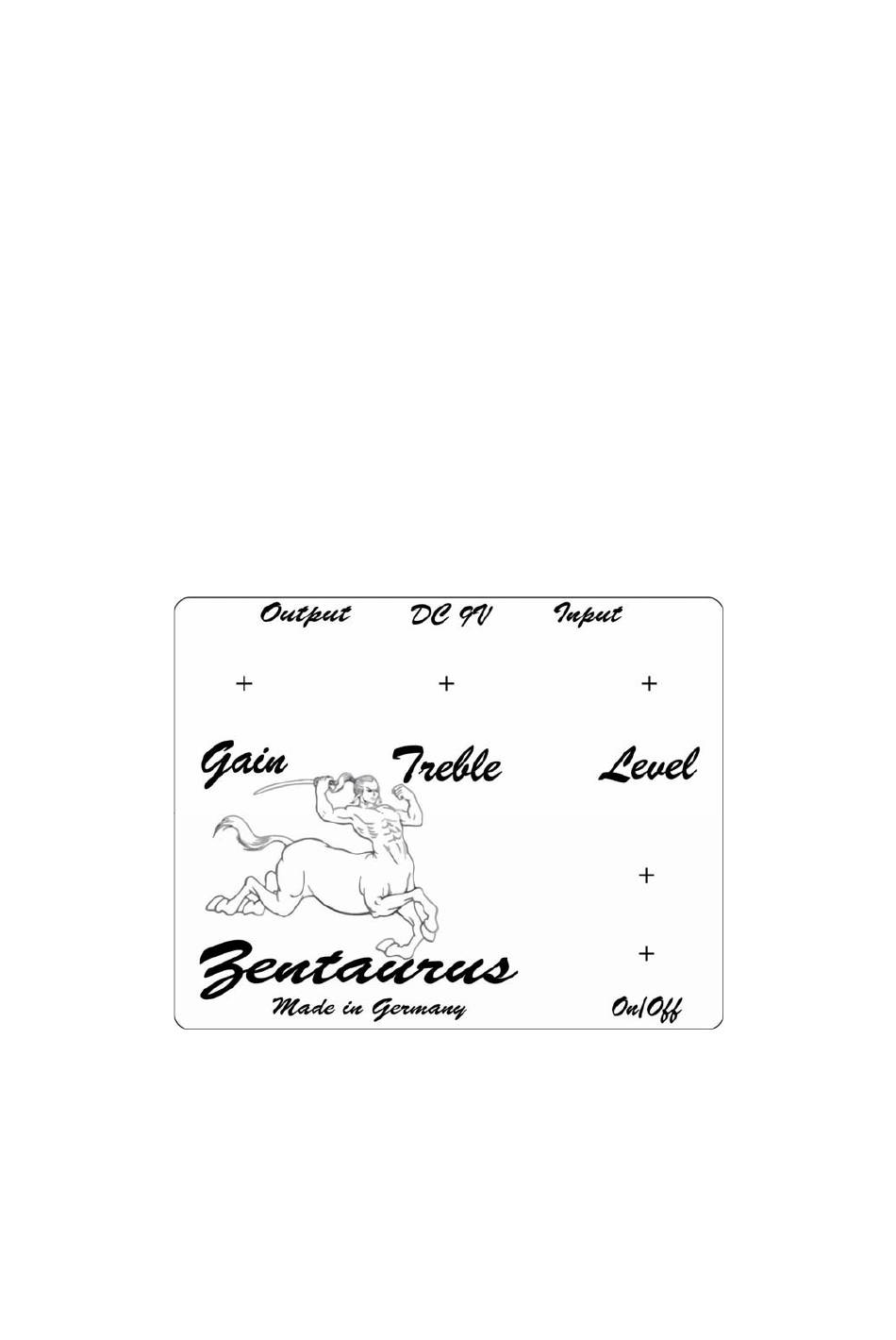

- Page 13 Output Input DC 9V Gain Level Treble Zentaurus On/Off Made in Germany...
