SEA Praha D-RFID-PR3 Quick Manual

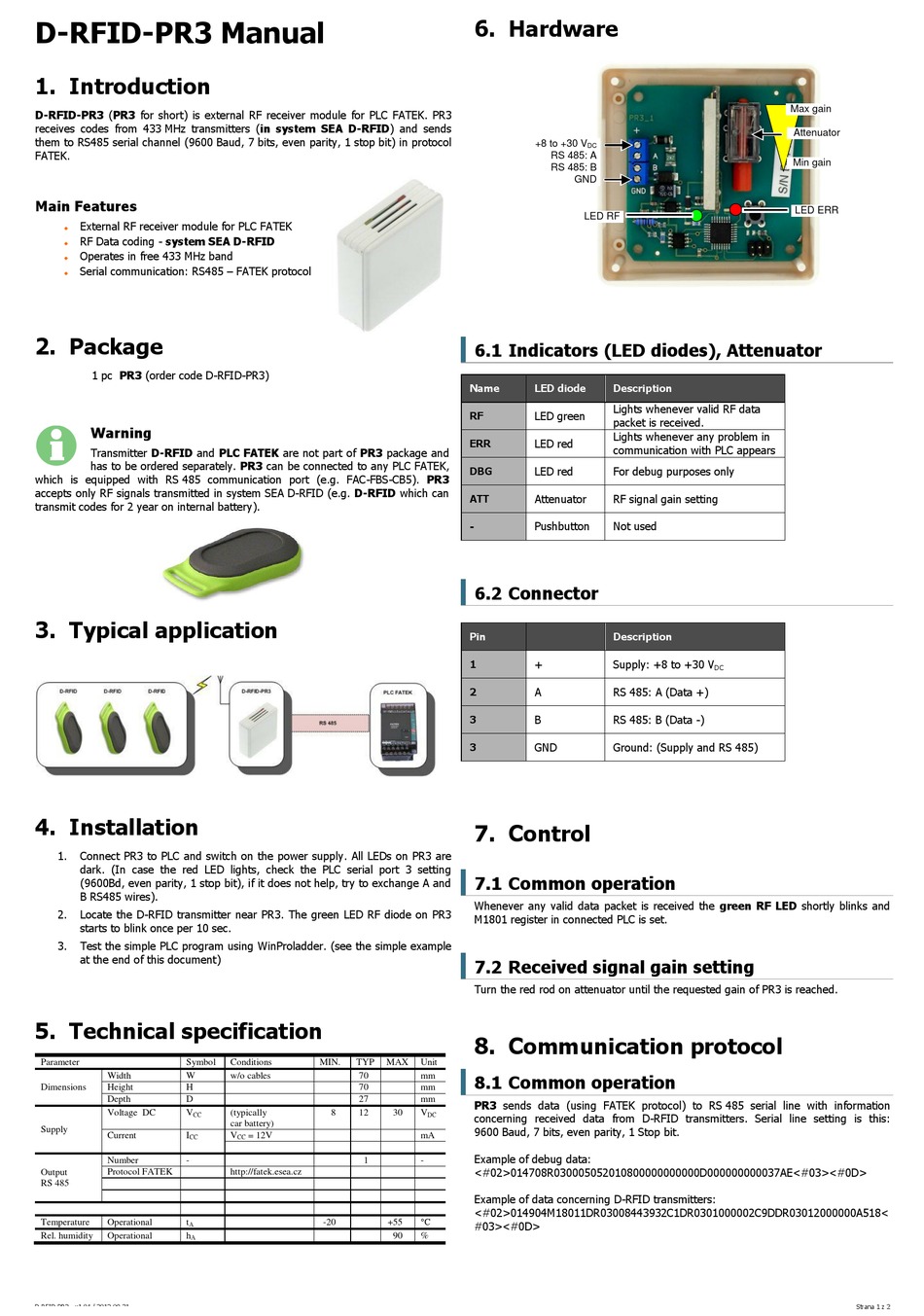

D-RFID-PR3 Manual
1. Introduction
D-RFID-PR3 (PR3 for short) is external RF receiver module for PLC FATEK. PR3
receives codes from 433 MHz transmitters (in system SEA D-RFID) and sends
them to RS485 serial channel (9600 Baud, 7 bits, even parity, 1 stop bit) in protocol
FATEK.

Main Features

External RF receiver module for PLC FATEK

RF Data coding - system SEA D-RFID

Operates in free 433 MHz band

Serial communication: RS485 – FATEK protocol

2. Package
1 pc PR3 (order code D-RFID-PR3)
Warning
Transmitter D-RFID and PLC FATEK are not part of PR3 package and
has to be ordered separately. PR3 can be connected to any PLC FATEK,
which is equipped with RS 485 communication port (e.g. FAC-FBS-CB5). PR3
accepts only RF signals transmitted in system SEA D-RFID (e.g. D-RFID which can
transmit codes for 2 year on internal battery).
3. Typical application
4. Installation
1. Connect PR3 to PLC and switch on the power supply. All LEDs on PR3 are
dark. (In case the red LED lights, check the PLC serial port 3 setting
(9600Bd, even parity, 1 stop bit), if it does not help, try to exchange A and
B RS485 wires).
2. Locate the D-RFID transmitter near PR3. The green LED RF diode on PR3
starts to blink once per 10 sec.
3. Test the simple PLC program using WinProladder. (see the simple example
at the end of this document)
5. Technical specification
Parameter Symbol
Width W
Dimensions Height H
Depth D
Voltage DC V
CC
Supply
Current I
CC
Number -
Protocol FATEK
Output
RS 485
Temperature Operational t
A
Rel. humidity Operational h
A
D-RFID-PR3 - v1.04 / 2012-09-21
Conditions MIN. TYP MAX
w/o cables 70
70
27
(typically 8 12 30
car battery)
V = 12V
CC
1
http://fatek.esea.cz
-20 +55
90
6. Hardware
+8 to +30 V
DC
RS 485: A
RS 485: B
GND
LED RF
6.1 Indicators (LED diodes), Attenuator
Name LED diode
LED green
RF
ERR LED red
LED red
DBG
Attenuator
ATT
- Pushbutton
6.2 Connector
Pin
+
1
A
2
3 B
GND
3
7. Control
7.1 Common operation
Whenever any valid data packet is received the green RF LED shortly blinks and
M1801 register in connected PLC is set.
7.2 Received signal gain setting
Turn the red rod on attenuator until the requested gain of PR3 is reached.
8. Communication protocol
Unit
8.1 Common operation
mm
mm
mm
PR3 sends data (using FATEK protocol) to RS 485 serial line with information
V
concerning received data from D-RFID transmitters. Serial line setting is this:
DC
9600 Baud, 7 bits, even parity, 1 Stop bit.
mA
Example of debug data:
-
<#02>014708R030005052010800000000000D000000000037AE<#03><#0D>
Example of data concerning D-RFID transmitters:
<#02>014904M18011DR03008443932C1DR0301000002C9DDR03012000000A518<
°C
#03><#0D>
%
Description
Lights whenever valid RF data
packet is received.
Lights whenever any problem in
communication with PLC appears
For debug purposes only
RF signal gain setting
Not used
Description
Supply: +8 to +30 V
DC
RS 485: A (Data +)
RS 485: B (Data -)
Ground: (Supply and RS 485)
Max gain
Attenuator
Min gain
LED ERR
Strana 1 z 2
