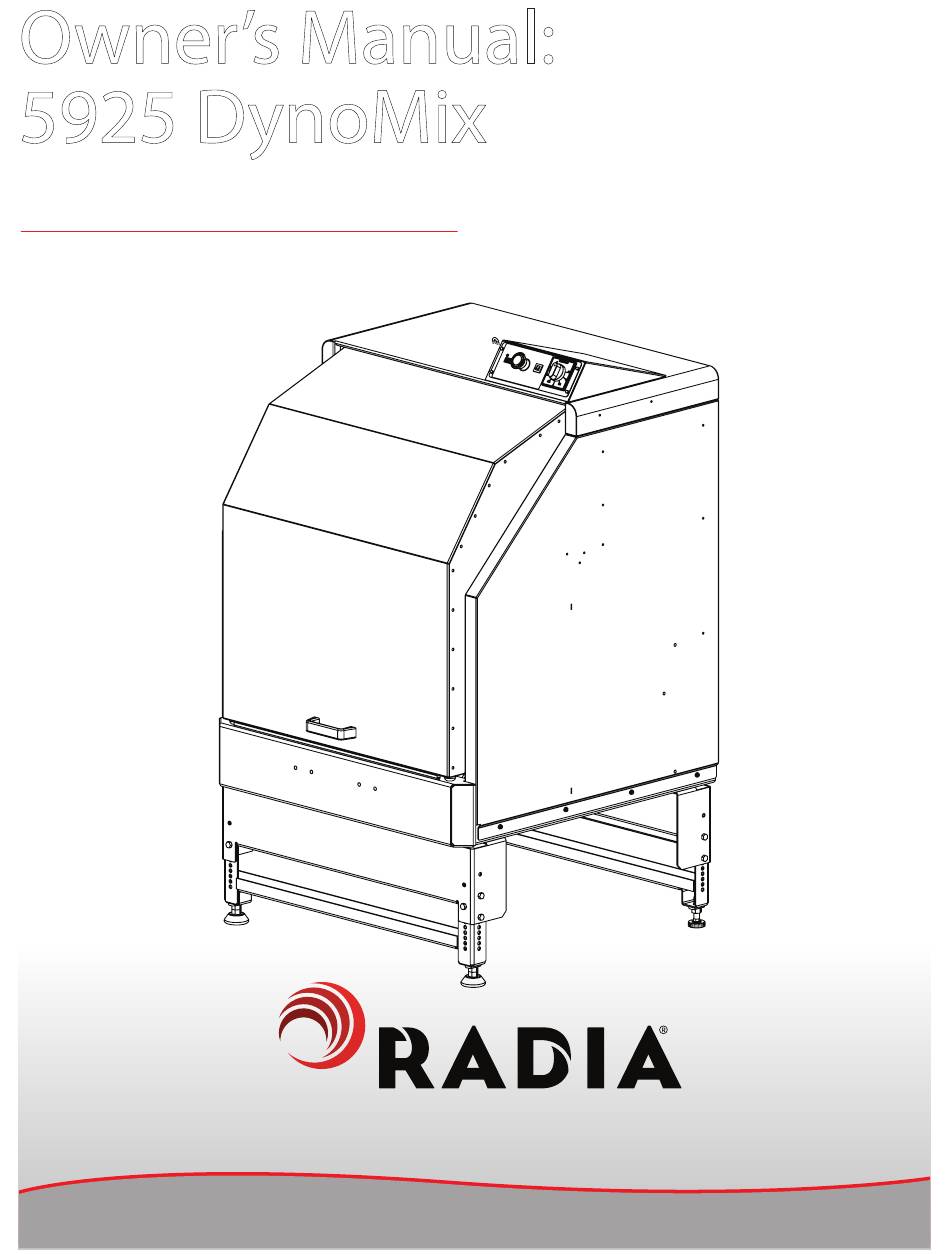

- Page 1 Owner’s Manual: 5925 DynoMix Multisize Gyro Mixer Models 0-5925-00 MRU; 0-5925U2 www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015...
-
Page 2: Table Of Contents
1785436 Rev U Owner’s Manual: 5925 ECO 18-0034 July 2018 Table of Contents Safety Information Wiring Diagram 1.1 Safety Precaution Labels 7.1 110 V 60 HZ 1.2 Saftey Precaution Summary Exploded Views Introduction 8.1 Frame and Drive 2.1 Application 8.2 Rotating Arm Lock Assembly 2.2 Specifications 8.3 Rotating Frame 8.4 Rotating Clamp Belt... -
Page 3: Safety Information
1785436 Rev U Owner’s Manual: 5925 18-0034 July 2018 1. Saftey Information Review this owner’s manual and read all warning labels on the machine prior to use. The three main safety notifications used in this manual and on the warning labels are WARNING, CAUTION and NOTICE. - Page 4 1785436 Rev U Owner’s Manual: 5925 ECO 18-0034 July 2018 Safety Information, Continued.. WARNING WARNING ADVERTENCIA ADVERTENCIA AVERTISSEMENT AVERTISSEMENT -This machine is not explosion proof rated. - Machine must be properly grounded before use; improper grounding could -Review product label, Material saftey Data Sheet, and HMIS rating of cause electric shock and injury.
-
Page 5: Saftey Precaution Summary
1785436 Rev U Owner’s Manual: 5925 18-0034 July 2018 Safety Information, Continued.. 1.2 Safety Precaution Summary WARNING! To avoid electric shock, don’t get the timer, control panel, or wiring wet. DO NOT attempt to replace any damaged electrical wire or components. Improper This machine is not explosion proof rated. -
Page 6: Introduction
Unit Size: W 32.25 in. (81.9 cm) D 34.25 in. (87 cm) Congratulations on your purchase of the H 53.5 to 57.5in. (136.5 cm) 0-5925 Dynomix. This machine is designed to accommodate standard 1-gallon or 5-gallon Unit Weight: 580 lb. (263.1 kg) plastic or metal containers weighing up to 100 Electric Service, 0-5925-00 MRU;... -
Page 7: Installation
1785436 Rev U Owner’s Manual: 5925 18-0034 July 2018 3. Installation 3.1 Prepare for Use 3.3 Verify the Machine Level IMPORTANT: Before attempting to operate 1. Clamp a 5-gallon pail in the machine as per the instructions in Section 4.2, Install the machine: a Pail and MIx. -
Page 8: Operation
1785436 Rev U Owner’s Manual: 5925 ECO 18-0034 July 2018 4. Operation 4.1 Control Panel • Cycle Counter (A): Displays the number of complete cycles performed. • E-Stop Push-Button (B): Only use to immediately cut the power to the machine. •... -
Page 9: Install A Pail And Mix
1785436 Rev U Owner’s Manual: 5925 18-0034 July 2018 4.2 Install a Pail and Mix WARNING! Notice: Avoid damage to the machine. Avoid serious personal injury. Do not mix flammable or combustible materials in this • A safety interlock interrupts machine mixer. -
Page 10: Pail Extractor Option
1785436 Rev U Owner’s Manual: 5925 ECO 18-0034 July 2018 4.4 Pail Extractor Options EXTRACTOR ARM www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015... -
Page 11: Care And Maintenance
1785436 Rev U Owner’s Manual: 5925 18-0034 July 2018 5. Care and Maintenance WARNING! Avoid serious personal injury. Always unplug the power cord before performing maintenance tasks. 5.1 Ceaning 5.2 Maintenance Avoid serious personal injury! DO NOT use IMPORTANT MAINTANCE ITEMS solvent-based cleaners or thinners, or other combustible cleaners. -
Page 12: Troubleshooting
Machine will not operate Machine circuit breaker tripped Reset by pressing circuit breaker back in Contact Red Devil Equipment Co. Faulty Control Panel Contact Radia's Customer Care Customer Care Contact Red Devil Equipment Co. Faulty Motor Contact Radia's Customer Care... -
Page 13: Wiring Diagram
1785436 Rev U Owner’s Manual: 5925 18-0034 July 2018 7. Wiring Diagrams 7.1 110 V 60 Hz PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015... -
Page 14: Exploded Views
1785436 Rev U Owner’s Manual: 5925 ECO 18-0034 July 2018 8. Exploded Views 8.1 Frame and Drive Description 9786804 BASE WELDMENT - 5925-5025 9786861 MOUNT, GEARBOX - 5925 9785464 GEARBOX, RIGHT ANGLE - 5925 9780886 SCREW HEX 3_8-16 X 1.00 9780402 Washer 3_8 split lock 9100731 WASHER, FLAT 3_8 X .82 OD 5785931 MOTOR, AC, 1 HP 60-50HZ, 56C FRAME... -
Page 15: Rotating Arm Lock Assembly
1785436 Rev U Owner’s Manual: 5925 18-0034 July 2018 ...Exploded Views, Continued 8.2 Rotating Arm Lock Assembly Description Description 9100023 WASHER, FLAT 5_16 USS 13 9785709 BALL STUD 9100731 WASHER, FLAT 3_8 X .82 OD 14 9785939 DAMPER, COMPRESSION, 100 LBS 9561700 Screw Hex 5_16 X 1 15 9785943 MOUNT, STOP LOCK, FLIP UP - 5925 9760514 Washer 1_4 SAE .281 ID... -
Page 16: Rotating Frame
1785436 Rev U Owner’s Manual: 5925 ECO 18-0034 July 2018 ...Exploded Views, Continued 8.3 Rotating Frame Description Description 9782520 ROLLER 9785348 ROTATING FRAME WELD’T - 5925 10 9785342 BRACKET, ROLLER - 5925 6785936 TOP PLATE AND BEARING ASSY - 5925 9785341 CHANNEL, BOTTOM PLATE - 5925 11 9785537 WASHER, NEO, .195 ID, .438 OD, .093T 12 9785782 NUT, KEPS 5_16-18... -
Page 17: Rotating Clamp Belt
1785436 Rev U Owner’s Manual: 5925 18-0034 July 2018 ...Exploded Views, Continued 8.4 Rotating Frame - Front 15 16 See Lead Screw Exploded View Description Description 6786165 RATCHET ASSEMBLY - 5925 13 9760514 Washer 1_4 SAE .281 ID 9785406 Tensioner, Pulley 14 9780343 Nut 1_4-20 Nylon Lock 9785531 COVER, LEAD SCREW PULLEY - 5925 15 9786098 NUT, FLANGED, SERRATED, HEX 3_8-16... -
Page 18: Rotating Frame Back
1785436 Rev U Owner’s Manual: 5925 ECO 18-0034 July 2018 ...Exploded Views, Continued 8.5 Rotating Frame - Back Description Description 6786544 MITER GEARBOX ASSY - 5925 11 9786086 SPRING, TENSION, DRIVE - 5925 9100023 WASHER, FLAT 5_16 USS 12 9786090 BOLT, EYE 5_16-18 X 3.5 LG 9780182 Nut, Nylock 5_16-18 13 9785545 PIN, ROTATING STOP - 5925 9786134 TENSIONER ARM, SPRING ACTUATED, S8M - 5925... -
Page 19: Ratchet Handle
1785436 Rev U Owner’s Manual: 5925 18-0034 July 2018 ...Exploded Views, Continued 8.6 Ratchet Handle PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY Exploded Views, Continued.. www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015... -
Page 20: Ratchet Handle
1785436 Rev U Owner’s Manual: 5925 ECO 18-0034 July 2018 ...Exploded Views, Continued 8.6 Ratchet Handle, Part List Description 9785386 PLATE, RATCHET MOUNT - 5925 9785467 BEARING, RADIAL BALL 25 MM X 47 MM X 12 MM 9785387 HOUSING, RATCHET BEARING - 5925 9780343 Nut 1_4-20 Nylon Lock 9785466 BEARING, 1 WAY NEEDLE-ROLLER, 1.00 SHAFT 9785389 COG, RATCHET LARGE BORE - 5925... -
Page 21: Lead Screw
1785436 Rev U Owner’s Manual: 5925 18-0034 July 2018 ...Exploded Views, Continued 8.7 Lead Screw Only used on 05925U2 Model with Extractor Arm. ID Description 9785347 LEAD SCREW - 5925 9785335 NUT, LEAD SCREW, FLANGED, RH THD - 5925 9785471 RETAINING RING, E-STYLE, 1.000 SHAFT 9787090 CLAMP COLLAR, 2-PIECE, 1.25 ID 9785336 NUT, LEAD SCREW, FLANGED, LH THD - 5925 9783483 Key, Square .125_.5625... -
Page 22: Shroud
1785436 Rev U Owner’s Manual: 5925 ECO 18-0034 July 2018 ...Exploded Views, Continued 8.8 Shroud Description Description 9100023 WASHER, FLAT 5_16 USS 14 9785373 COVER, LIMIT SWITCH - 5925 9760514 Washer 1_4 SAE .281 ID 15 9785773 SEAL, DOOR - 5925 9760521 Washer 5_16 Lock, Split 16 9785779 SCREW, SERRATED FLANGE HEX HD, .25-20 X .50 LG 9780221 SCREW HEX 1_2-13 X 1.00... -
Page 23: Riser Kit
1785436 Rev U Owner’s Manual: 5925 18-0034 July 2018 ...Exploded Views, Continued 8.9 Riser Kit ID Description 9780182 Nut, Nylock 5_16-18 9781711 NUT, 1_2-13 9782407 Screw Hex 5_16 X 3_4 9785721 FOOT, GLIDER - 1_2-13 9786767 RISER, UNIVERSAL RR - 5025 - 5925 9785722 FOOT, NON SKID, LEVELING - 1_2-13 9786766 LEG, CROSSBAR, UNIVERSAL RR - 5025 - 5925 6786807 Kit Riser... -
Page 24: Control Panel 110 Volt 60 Hz
1785436 Rev U Owner’s Manual: 5925 ECO 18-0034 July 2018 ...Exploded Views, Continued 8.10 Control Panel 110 Volt 60 Hz ID Description 1785491 Label, Mech Timer - 5925 5756690 Assembly, Timer 5784008 Counter, cycle 5784827 E-STOP SWITCH 5785315 Circuit Breaker, 20 Amp, Pop-out 9756960 Knob 9784198 Screw, Pan hd thd forming #4 x .38 9785520 PLATE, MECHANICAL TIMER - 5925... -
Page 25: Extractor Arm
1785436 Rev U Owner’s Manual: 5925 18-0034 July 2018 ...Exploded Views, Continued 8.11 Extractor Arm PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015... -
Page 26: Ordering
5925 ECO 18-0034 July 2018 9. Ordering Replacment Parts HOW TO ORDER REPLACEMENT PARTS Replacement parts can be ordered from Radia by telephone, fax, or email: RADIA 800-221-1083 763-533-2969 763-533-0015 (FAX) orders@radiaproducts.com If you need help in determining the proper part(s) to order, please call Customer Care. -
Page 27: Warranty
Radia equipment with structures, accessories, equipment, or materials not supplied by Radia. Subject to the limitations set forth above, Radia shall (i) repair or replace the equipment (or the defective part) or (ii) credit or refund the price of such equipment. Costs of labor and transportation for service of machines under this warranty will also be covered during the warranty period if Radia elects to repair or replace the equipment. -
Page 28: Notes
1785436 Rev U Owner’s Manual: 5925 ECO 18-0034 July 2018 NOTES www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015... - Page 29 1785436 Rev U Owner’s Manual: 5925 18-0034 July 2018 NOTES www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015...
- Page 30 1785436 Rev U Owner’s Manual: 5925 ECO 18-0034 July 2018 For sales or service, please contact RADIA Attn: Customer Service Department 14900 21st Ave N Plymouth, Mn 55447 U.S. Telephone: 800.221.1083 International Telephone: 763.533.2969 Fax: 763.533.0015 E-mail: info@radiaproducts.com www.radiaproducts.com For instructional "How To" videos please visit: www.radiaproducts.com...
