Ref
Description
Part No Qty Req
01
Carriage
4021
1 ea
02
Knife Block
4006
1 ea
03
Knife
4055
2 ea
04
Spacer Tube
4008
1 ea
05
Guide Bearing
4026
4 ea
06
Knife Bearing
4066
2 ea
07
Arbor Bolt
4057
2 ea
24145 Industrial Park Dr.,
Toll Free No.
1-800-Van Mark
P h o n e N o .
1 - 2 4 8 - 4 7 8 - 1 2 0 0
W e b s i t e : w w w . v a n - m a r k . c o m
TrimCutterUserGuide.indd 16 md/sf Effective 111103
Rev. 12-15-05
��
��
��
��
��
��
��
��
Ref
Description
Part No Qty Req
08 Arbor Spacer
4058
09 Label
4067
10 Track Spacer
4011
11 1/4-20x5/8 Scw
2019
12 1/4-20x1 3/4 Scw
2046
13 1/4 Lock Wash
2500
14 1/4 Flat Wash
2510
Farmington Hills,
MI 48335
Toll Free Fax
1-888 -V an M ar k
A r e a F a x N o .
1 - 2 4 8 - 4 7 8 - 1 2 2 6
E - M a i l sales@van-mark.com
© 2002 Van Mark Products Corp.
��
2 ea
1 ea
1 ea
6 ea
2 ea

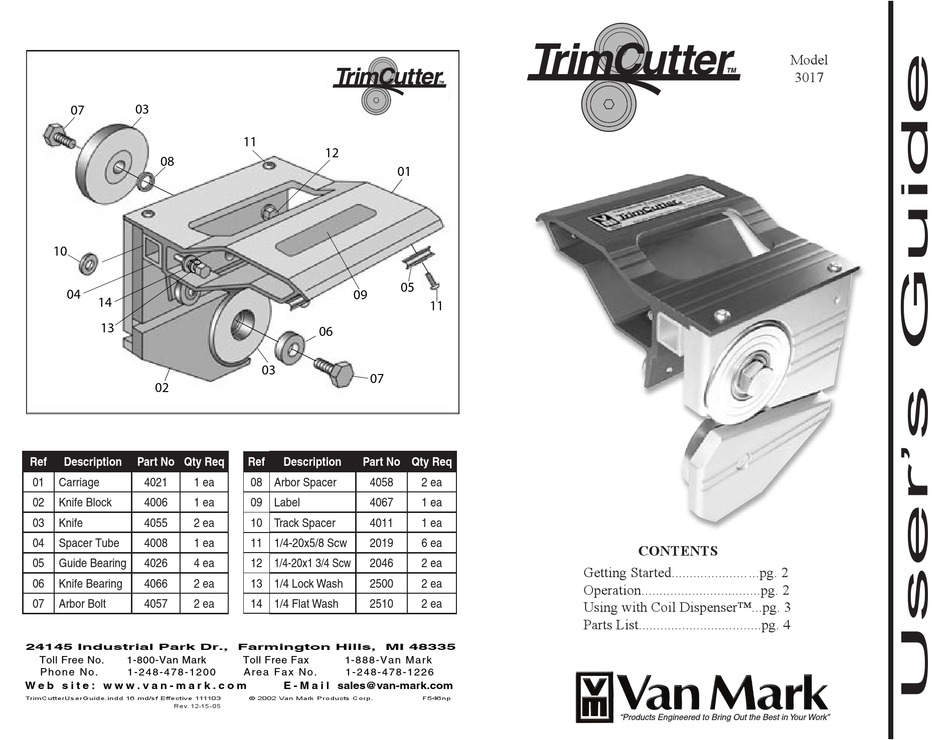

Getting Started..................... ...pg. 2
2 ea
Operation.................................pg. 2
2 ea
Using with Coil Dispenser™...pg. 3
Parts List..................................pg. 4
F546np
Model
3017
CONTENTS
"Products Engineered to Bring Out the Best in Your Work"
Advertisement

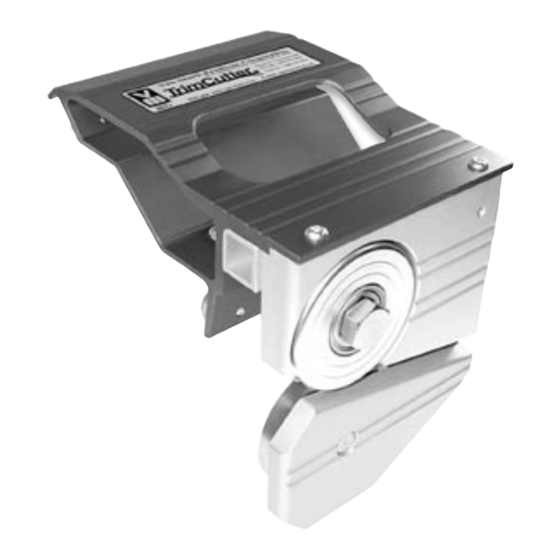

Summary of Contents for Van Mark TrimCutter 3017
