Quik Bridge
Supervised One-
Channel Receiver
Document Number: 466-1699 Rev. A
October, 1999
9217G07A.DSF
60-760-01-95R
INSTALLATION
INSTRUCTIONS

Product Summary

The Quik Bridge
Supervised One-Channel Receiver
®
adds wireless capability to a compatible hardwired
control panel. Up to two ITI wireless sensors can be
monitored using two zone inputs on the control panel.
One zone input is used for alarm and tamper activa-
tions, while the other zone is used for low battery and
supervisory monitoring (see Figure 1).
A L A R M / T A M P E R
T R A N S M I S S I O N S
T O
A L A R M
R E L A Y
A L A R M
R E L A Y
F I R S T
P A N E L
Z O N E

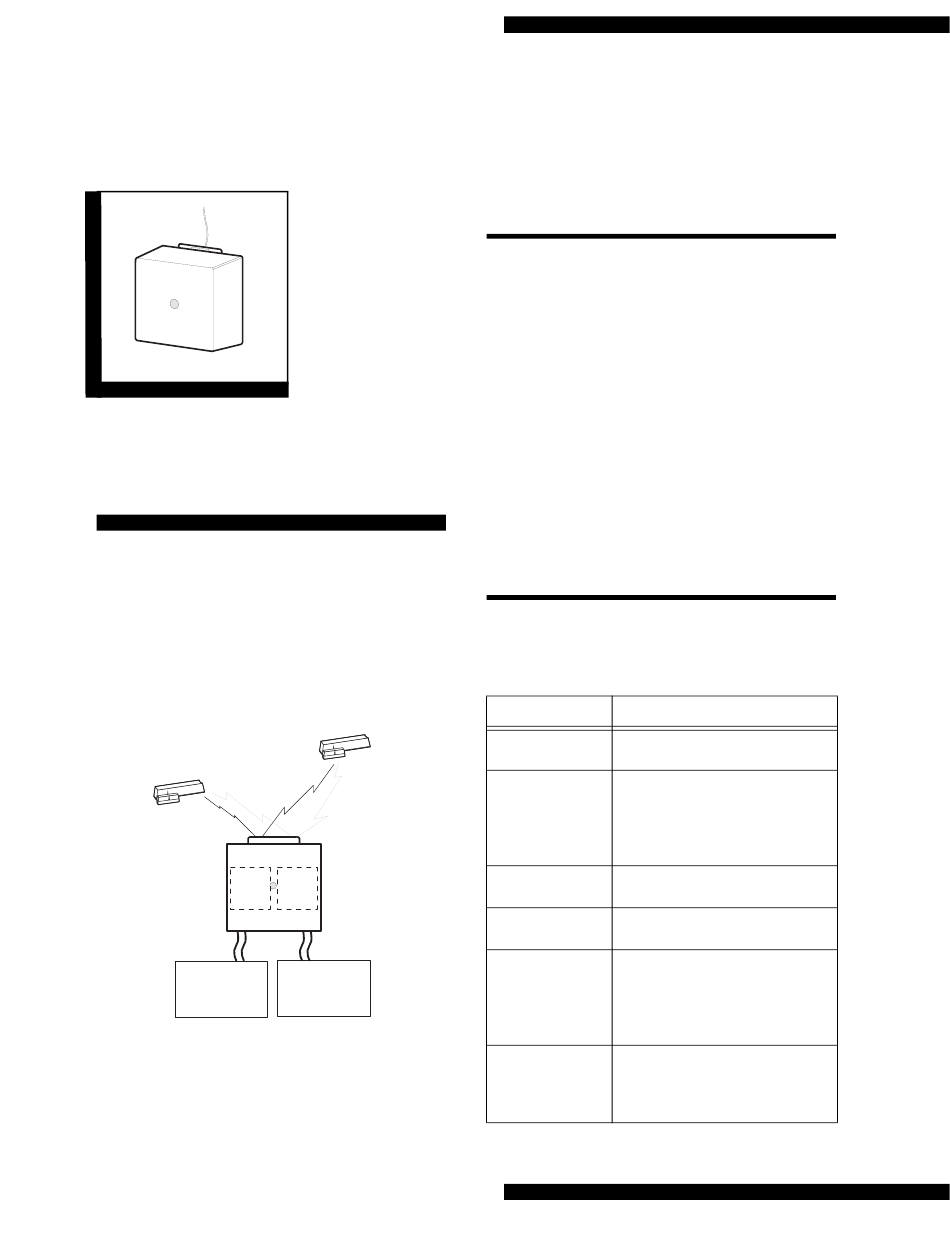

Figure 1. Expanding zones by adding up to two
supervised sensors
®
L O W
B A T T E R Y /
S U P E R V I S E
T R A N S M I S S I O N S
T O
S U P E R V I S E R E L A Y
S U P E R -
V I S E
R E L A Y
S E C O N D
P A N E L
Z O N E
9 2 1 6 G 0 1 A . D S F
Quik Bridge® Supervised One-Channel Receiver
How the Receiver "Supervises" Wireless
Devices
In addition to alarm and tamper messages, ITI sensors
also transmit low-battery and supervisory messages.
The Quik Bridge One Channel Receiver carefully
"supervises" all of these messages. Alarm and tamper
messages activate the alarm relay, which triggers an
alarm. Low-battery messages activate the supervise
relay and cause the receiver LED to flash every 4 sec-
onds as a trouble indicator. Supervisory transmissions
do not activate any zone or relay, they simply let the
receiver know that the sensor is working properly. If
the sensor stops sending supervisory information,
however, the supervise relay of the receiver is acti-
vated and the LED double-flashes every 4 seconds. If
this coincides with a low-battery condition, the
receiver will triple-flash every 4 seconds.

LED Indicator

The receiver has one LED. Table 1 lists the possible
states of the LED and what they mean.
Table 1. What the states of the LED mean
Power LED
On and flickering
Receiver has power and is receiving
irregularly
transmissions.
Off
Receiver has no power OR
all devices were successfully
deleted from the receiver memory
and the LED will flash on again
within three seconds.
Flashing regularly
Receiver is ready to learn a wireless
device.
Flashing once
Indicates a low battery trouble con-
every 4 seconds
dition for at least one sensor.
Double-flashing
Indicates that no supervisory trans-
once every 4 sec-
missions have been received in the
onds
past 24 hours from one sensor, or
that no transmissions have been
received from either sensor.
Triple-flashing
Indicates simultaneous low battery
once every 4 sec-
trouble condition and no supervi-
onds
sory transmissions in the past 24
hours (for one or both sensors).
Means
Page 1
