ATC Technology ATC-3002 Quick Start Manual

Quick Start Guide

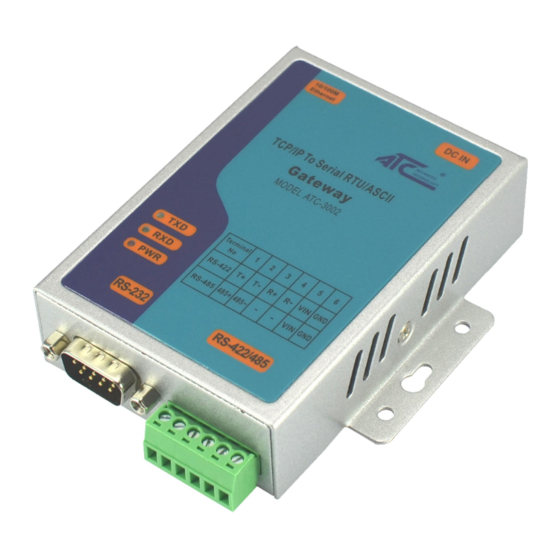

1-Port Modbus Gateway
MODEL：ATC-3002
1
1 1
.
Check Package Content
■ATC-3002 unit 1Pcs
■ATC-3002 Quick Start Guide 1Pcs
■ DC9V Ext power adapter 1Pcs
2
2
.Hardware Installation
■Connect an Ethernet cable to ATC-3002 unit if connecting to a
switch or cross-over direct to the PC as Figure 1.
Figure 1
■ATC-3002 10/100 Port t connect to Ethernet card use
coss-Through Cable as Figure 2.
Figure 2
RS-232 Pinout：（DB9 Male)
Terminel 1 2 3 4
No.
RS-422 T+ T- R+ R- VCC
RS-485 485+ 485- / / VCC
RS-422/485 Pinout：（Six Terminal from left）
（DB9 Male） Signal
PIN2 RXD
PIN3 TXD
PIN5 GND
■ Connect the power adapter to ATC-3002 and
other apply power. Power
device.(+9--+48V).
3
3
.LED indication
LINK ——Ethernet interface right light, indicating
Ethernet is established, the green light is
on behalf of the establishment, not bright
or bright yellow on the contrary;
——Ethernet interface left light, blinking
ACT
between the Ethernet port and RS232 /
422/485 data transmission;
TXD —— Blinks when data is sent by the Ethernet
port to the RS232 / 422/485 serial ports;
RXD —— Blinks when data is sent by the RS232 / 422/485 serial
port to the Ethernet port;
PWR—— Power indicator, red light when the power is turned on.
4
4
.Software Installation
■None
5 .
5
5 6
Configure the ATC-3002
■Use this section to set up your computer to assign it a static IP
GND
address in the 192.168.2.1 to 192.168.2.254
GND
mask of 255.0.0.0. The default IP address of ATC-3002 is
192.168.2.3, the computer IP user can not set this value,
I/O
otherwise it will cause IP address conflict.
IN
This is necessary to ensure that your computer can communicate
OUT
with your ATC-3002. Your computer must have an Ethernet card
-
and TCP/IP installed. TCP/IP should already be installed on
computer using Windows 98/2000/XP and later operating
from other
systems.
■Open your web browser and type
address box. This address is the factory set IP Address of your
ATC-3002. Press "Enter".
range with a subnet
http://192.168.2.3 in the browser's
Figure 3
