Summary of Contents for red roo GT622

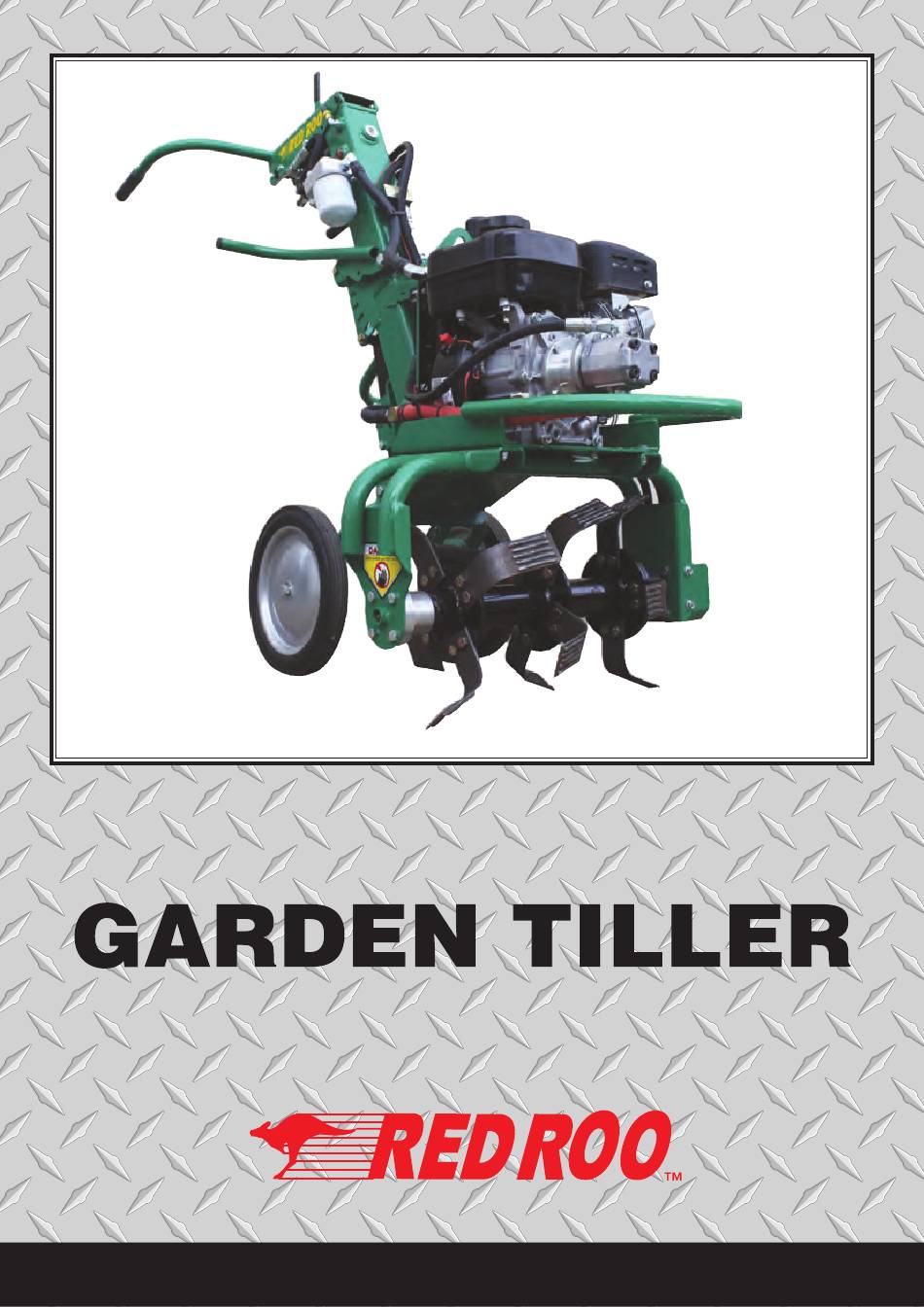

- Page 1 GT622 GT622 GT622 GARDEN TILLER Operation, Safety & Maintenance Instructions ™ Commercial Environmental Equipment Commercial Environmental Equipment Commercial Environmental Equipment Online Demonstration Available at: www.redroo.com/products/rotaryhoe...
- Page 2 INTRODUCTION Dear Valued Customer, Congratulations! You are now the proud owner of the Red Roo Model GT622 Garden Tiller. Please take a moment of your time to look over the following information Familiarise yourself with the tiller, its characteristics and method of operation.
-
Page 3: Assembly Instructions
1. Remove the tiller from shipping crate. Please inspect immediately for any damage and ASSEMBLY INSTRUCTIONS notify the shipping company and Red Roo, right away if any is found. 1. Remove the tiller from shipping crate. Please inspect immediately for any damage and notify the shipping company and Red Roo, right away if any is found. -
Page 4: About This Manual
The information contained in this manual has been prepared to assist you in the safe operation, the routine maintenance and general care of your Red Roo product. By following these guidelines, you may look forward to years of reliable service from your Red Roo. Information is catergorised and denoted by the following symbols and phrases: SAFETY FIRST Identifies general safety practices. - Page 5 SAFETY PRECAUTIONS FOR GT622 USERS Outdoor Power Equipment Institute Recommendations WARNING TO PURCHASERS OF INTERNAL COMBUSTION ENGINE EQUIPPED MACHINERY OR DEVICES: The equipment which you have purchased does not have a spark arrester muffler. If this equipment is to be used on any forest and brush covered land or grass covered unimproved land, the law may require that a spark arrester muffler be installed and be in effective working order.
-
Page 6: Before Use
OPERATING INSTRUCTIONS - GT622 BEFORE USE 1) Ensure that all grass and weeds have been cut as low as possible. 2) If the garden tiller is to be used in clay or hard ground conditions, it is recommended to water the area thoroughly and allow sufficient time for the soil to soften. -
Page 7: Service Information
HOUR METER hour intervals. Although the engine manufacturer does not require changing engine oil this often, Red Roo warrants all Red Roo equipment to be free of defects in material and workmanship for strongly due to heavy-duty use and extreme conditions inherent to tiller use, Red Roo The SenDEC®... - Page 8 ELECTRICAL SCHEMATIC - HONDA GX160 ELECTRICAL SCHEMATIC - HONDA GX160 MOTOR PUMP 125cc 4.9 ci .24 ci MOTOR PUMP 125cc MOTOR 4.9 ci PUMP 125cc .24 ci 4.9 ci .24 ci 622GT Owner’s/Operator’s Manual 8/28/12 Page 5 of 17 HYDRAULIC SCHEMATIC TITLE: 622GT Owner’s/Operator’s Manual 8/28/12...
- Page 9 ELECTRICAL SCHEMATIC - ROBIN EX17D 622GT Owner’s/Operator’s Manual 8/28/12 Page 6 of 17...
- Page 10 GT622 SPECIFICATIONS MODEL NUMBER 622GT DIMENSIONS Weight 211 lbs. (95.71 kg) Height 50” (1.27m) Length 59” (1.5m) Width 28” (71.12cm) ENGINE Engine Honda GX 160 Optional engine Robin EX 17D FUEL Gasoline POWER: hp (kW) at 3600 RPM H-5.5 hp (4.0kW) POWER: hp (kW) at 4000 RPM R-5.7 hp (4.2kW)
-
Page 11: Engine Controls
ENGINE CONTROLS CHOKE : Use to aid starting the engine when it is cold. IGNITION SWITCH: There are two ignition switches. One switch is located on the control panel for your convenience. The other is located on the engine. Use these to start and stop the engine. THROTTLE: Use this to adjust engine speed. - Page 12 B. TYNES FAIL TO ROTATE Rebuild or replace motor. New motors are 1. Tyne motor worn. Rebuild or replace motor. New motors are available from Red Roo. 1. Tyne motor worn. Rebuild or replace motor. New motors are available from Red Roo.
- Page 13 ™ Commercial Environmental Equipment WORK SITE ASSESSMENT WORK SITE ASSESSMENT Examine the work area for any conditions or obstructions that may inhibit tilling or create a safety Examine the work area for any conditions or obstructions that may inhibit tilling or create a safety hazard for the operator or others.
- Page 14 ITEM NO. QTY. PART NO. DESCRIPTION ITEM NO. QTY. PART NO. DESCRIPTION 1 12191 TINE DRIVER 1 12206-22 TINE SHAFT, 22" 16 05061 HH CAP SCREW, 7/16-20 NF X 1 G8 ZINC 2 10800 HYDRAULIC FITTING, 6400-0-6-10 8 05063 HH CAP SCREW, 7/16-20 NF X 1-1/4 G8 ZINC 1 05083 WASHER, 7/16 USS ZINC 1 12209...
- Page 15 ITEM NO. QTY. PART NO. DESCRIPTION 1 00486 ENGINE ASSEMBLY 1 00485-22 TINE ASSEMBLY, 22" 1 00493 FRAME ASSEMBLY 1 00488 CONTROL ASSEMBLY 1 00489 WHEEL ASSEMBLY 1 11987 BREATHER HOSE ASSY 1 04555 FITTING, 6801-4-4 1 12214 HOSE, SUCTION 3/4" 2 05008 CLAMP, 1"...
- Page 16 CONTROL ASSEMBLY TITLE: DATE: 8-12 PRODUCT LINE: GARDEN TILLER ™ Commercial Environmental Equipment SCALE: 1:6 00488 DWG# SHEET 2 OF 2 ITEM NO. QTY. PART NO DESCRIPTION 1 11745 SWING ARM 1 11747 RAISE LINK 1 11746L LIFT LEVER 1 10257 HH CAP SCREW, 1/2-20 NF X 1-3/4 G5 ZINC 1 11113 CUSHION...
- Page 17 ITEM NO QTY. PART NO. DESCRIPTION ITEM NO QTY. PART NO. DESCRIPTION 1 11997 FITTING, 4501-8-8 2 05352 HH CAP SCREW, 3/8-16 NC X 2-1/4 G5 ZINC 1 10527 OIL COOLER, B & M 70273, 11 X 5.75 2 05101 WASHER, 3/8 SAE ZINC 1 06423 STARTER GROMMET...
- Page 18 GT622 GARDEN TILLER Operation, Safety & Maintenance Instructions and explore our PRODUCTS ™ Commercial Environmental Equipment...
- Page 19 effective September 12, 2012 Replaces all undated previous Warranties and all Warranties dated prior to Januray 1, 2010.
- Page 20 GT622 GARDEN TILLER peration, Safety & Maintenance Instruction ™ Commercial Environmental Equipment...
