On Screen Keyboard; Keyboard; Major Function Keys - Transmille 8100 Series Operation Manual

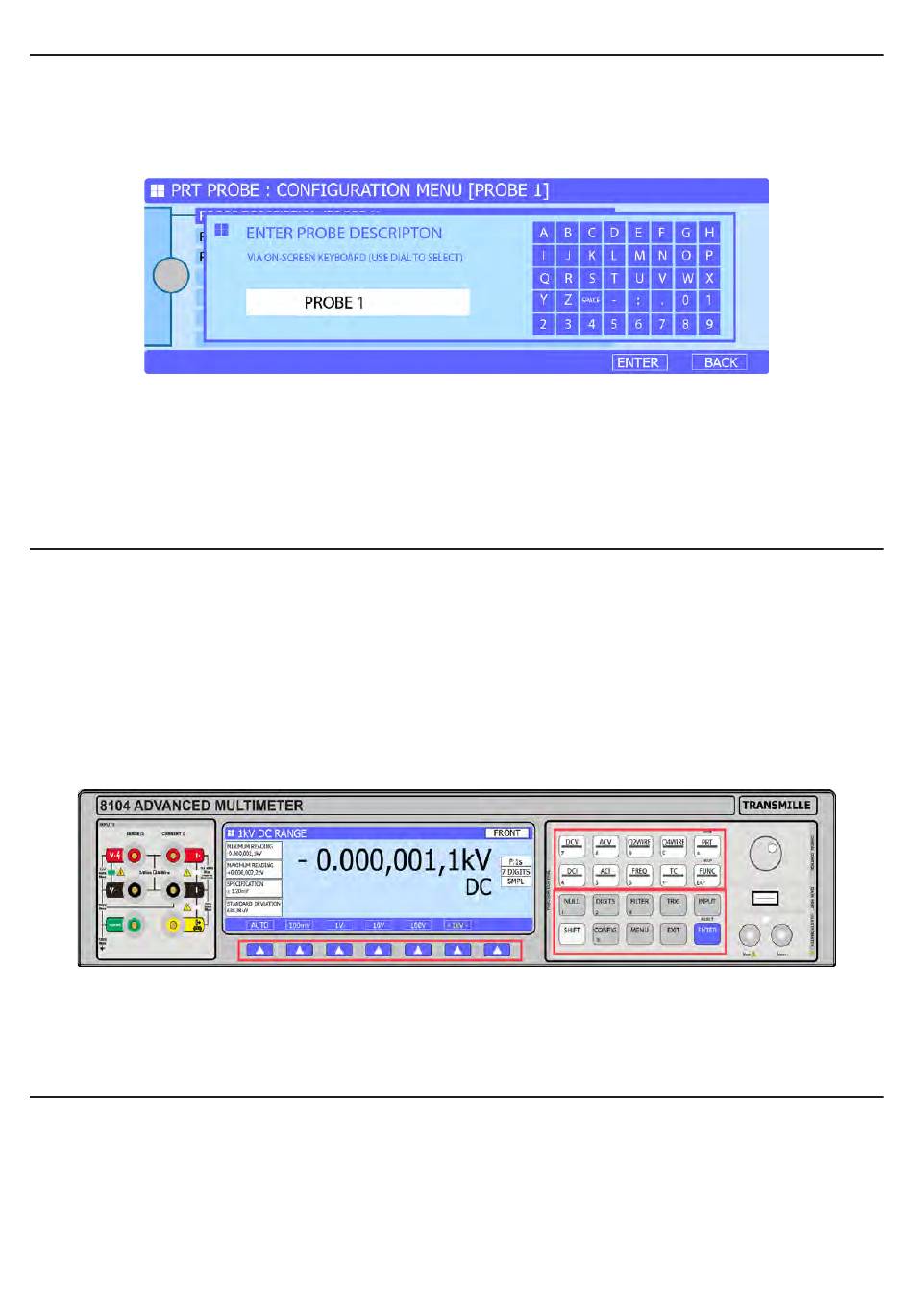

When Text entry is required (Such as entering the system password) an on screen keyboard is
displayed on the screen.
Navigation is performed by using the DIGITAL CONTROL to highlight the desired key and
then pressing the DIGITAL CONTROL or the ENTER key. When text entry is complete, the soft key
labelled ENTER
The 8100 Series features 3 types of keys, separated into two main areas :

1. Major Function Keys

2. Menu / Parameter Keys
3. Soft Keys - These keys are context sensitive and the function changes depending upon the menu
or function selected.
There are 8 Function Keys, which are white in colour. These keys provide direct access to
functions and ranges, such as DC Voltage or DC Current.
8100 Operation Manual - V1.0.1
www.transmille.com

On Screen Keyboard

Keyboard

Major Function Keys
Page 13
