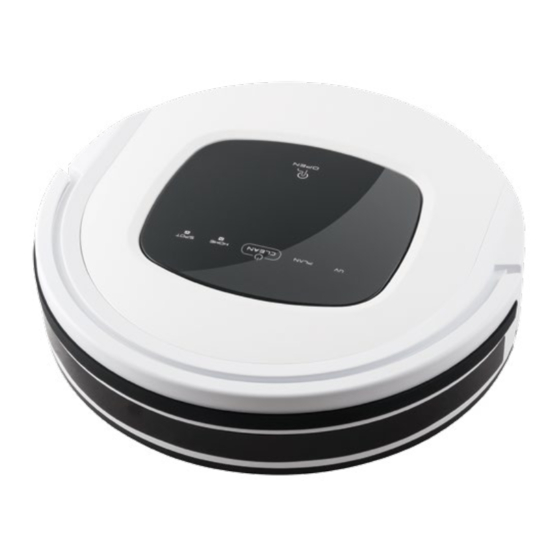

Summary of Contents for Fagron FagronLab RVC1

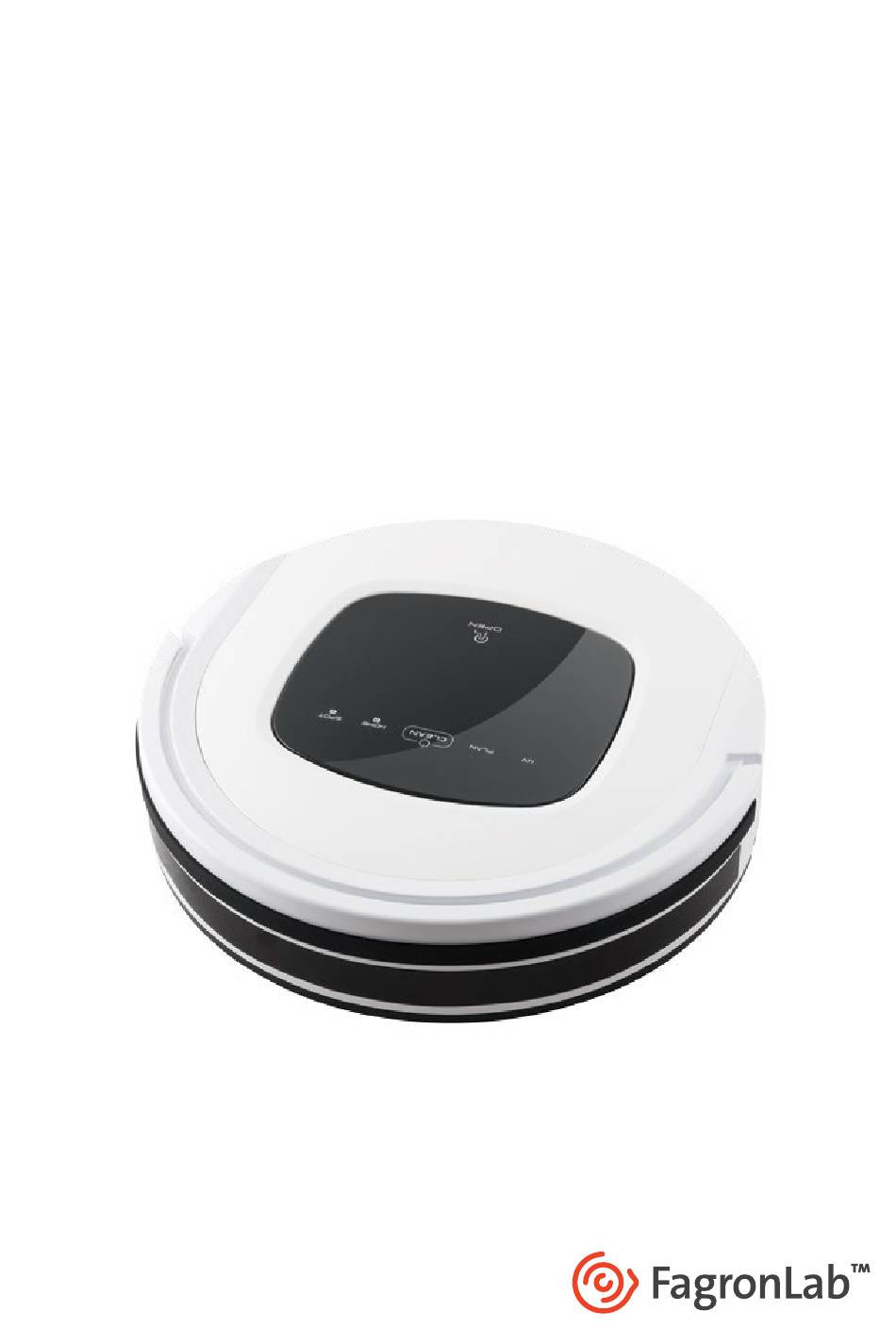

- Page 1 FagronLab™ RVC1 Laboratory Robot Vacuum Cleaner User Manual...
-
Page 3: Table Of Contents
Table of contents 1. Introduction ..........................................4 2. Service ..............................................4 3. Warranty ............................................4 4. Safety instructions ........................................ 5 5. Product features ........................................5 Powerful suction ........................................5 Intelligent suction adjustment ................................... 5 User friendly design ......................................... 5 Washable dust bin ........................................6 Various cleaning modes ...................................... -
Page 4: Introduction
If the warranty has been expired, Fagron would still responsible for repair with relative charges. For claims under the warranty please contact your local supplier. -
Page 5: Safety Instructions
FagronLab™ RVC1 4. Safety instructions Before using this product, please read the safety instructions and follow all those regular safety precautions. • Only authorized technicians can disassemble the product. Users are not allowed to disassemble or repair the product. • Only use the original battery and power adapter of the product for charging. -
Page 6: Washable Dust Bin
FagronLab™ RVC1 Washable dust bin Wash dust bin and filters with water. Wash dust bin after every empty. Various cleaning modes Four cleaning modes are provided to meet your needs. Auto cleaning mode Spot cleaning mode The robot will clean a room automatically and adjust The robot will clean intensively in a spiral way when it its cleaning according to situation. -
Page 7: Product Components
FagronLab™ RVC1 6. Product components Main body and accessories Description Quantity Main Body Charging Station Adapter Remote Control (battery not included) Water Tank 1 pc and Mopping clothes 2 pcs HEPA Filter Cleaning Brush Side Brushes *2 and Spare Brushes *2 User Manual FagronLab™... -
Page 8: Main Body Diagram
FagronLab™ RVC1 Main body diagram Body LED Display Touch key Cover Power switch Right wheel Right side brush Suction package Button battery cover Battery cover Bottom cover Universal wheel UV light Left wheel Charging socket Auto charge pole Left side brush Cover Dust bin FagronLab™... -
Page 9: Dust Bin
FagronLab™ RVC1 Dust bin Primary filter Dust bin HEPA filter HEPA filter holder Charging station Power light Top cover Charging socket Charging poles Remote control ON/OFF Direction button Auto charging Spot cleaning Cleaning mode Note: • Install two AAA type batteries into the remote before use. •... -
Page 10: Display Panel
FagronLab™ RVC1 Display panel Description Action • LED panel shows the time setting, charging status, and error codes by using LED Panel numbers, letters or graph • In standby mode, press this button to preset the UV light status (on/off) UV light button •... -
Page 11: Product Operation
FagronLab™ RVC1 7. Product operation Battery charging • Positioning the charging station: Place the charging station against the wall and remove obstacles 1 meter on either side and about 2 meters front of the charging station, as shown in the image. •... -
Page 12: Standby
FagronLab™ RVC1 Standby • Standby means the robot’s main power is “ON”, and the robot is ready to use. It can be changed to standby mode by below methods: 1. During robot cleaning, press "CLEAN" on main body to enter standby mode. 2. -
Page 13: Cleaning Modes
FagronLab™ RVC1 Cleaning modes Please touch the "CLEAN" button to start cleaning. You can only select the cleaning mode when the robot is cleaning, press the MODE button on remote control to select the cleaning mode, the mode type will appear on the robot’s 4 Digits LED Display as follow: •... -
Page 14: Water Tank And Mop
FagronLab™ RVC1 Water tank and mop Usage of water tank and the fiber mopping cloth: • Attach the fiber mopping cloth to the bottom of water tank. Water tank • Fill up the water tank with water. Open the rubber plug, fill it with water, and your cleaning agent. -
Page 15: Cleaning Dust Bin And Filters
FagronLab™ RVC1 Cleaning dust bin and filters Empty and clean dust bin after each use following the steps as shown in the figures below: Press Press "PUSH" to open the cover. Take out the dust bin. Take out the HEPA. Open dust bin cover, take out primary filter. -
Page 16: Cleaning Sensors And Wheels
FagronLab™ RVC1 Note: • Wash HEPA filter after 15~30 days of use. Max life span for HEPA and filter is 24 months. • Reinstall the HEPA and primary filter after they are fully dry. • HEPA and primary filter could be replaced if needed. •... -
Page 17: Troubleshooting
FagronLab™ RVC1 9. Troubleshooting Error code for sensors Error code Cause Solution AUBF Suction passage blocked Clean suction passage Dust bin not placed in position or robot without AUBN Put back dust bin and place it in position dust bin E1XX Left collision switch fault E2XX... - Page 18 FagronLab™ RVC1 Error code Cause Solution Front anti-drop sensor detects cliff, front EXXA bumper right infrared sensor detects obstacle Left and front anti-drop sensors detect cliff, EXXB front bumper right infrared sensor detects obstacle Right anti-drop sensor detects cliff, front EXXC bumper right infrared sensor detects obstacle Clean front sensor lens and bottom anti-drop...
-
Page 19: Troubleshooting For Motors
FagronLab™ RVC1 Troubleshooting for motors Error code Cause Solution L01X Fan overloaded Check if fan is pressed, and clean dust bin L0X1 Left wheel overloaded L0X2 Right wheel overloaded L0X3 Left and right wheels overloaded L0X4 Left side brush overloaded L0X5 Left wheel and left side brush overloaded L0X6... -
Page 20: Battery Removal
FagronLab™ RVC1 10. Battery removal • Remove the screws on battery cover with a screw driver. • Remove the battery cover. • Grasp the insulating tape at two sides of the battery and lift the battery. • Unplug the wire connector that links the battery and robot. Note: •... -
Page 21: Product Specification
FagronLab™ RVC1 11. Product specifications Classification Item Detail Diameter 340mm Mechanical Specifications Height 85mm Weight 3.4Kg Power Rating 14.4V Electrical Specifications Battery Specifications Ni-MH 2000mAH Dust Bin Capacity 0.5L Charging Type Auto Charging/ Manual Charging One key to clean &remote control Cleaning Specifications Cleaning Mode selection... - Page 22 FagronLab™ RVC1 Notes .................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................... FagronLab™ RVC1 – User Manual | 22...
- Page 24 Fagron Hellas - 12 km N.R. Trikala-Larissa - P.C. 42100 Trikala Tel. +30 (0) 24310 83633-5 - Fax +30 (0) 24310 83615 - info@fagron.gr...
