Summary of Contents for Rose electronics REMOTE CONTROL PANEL

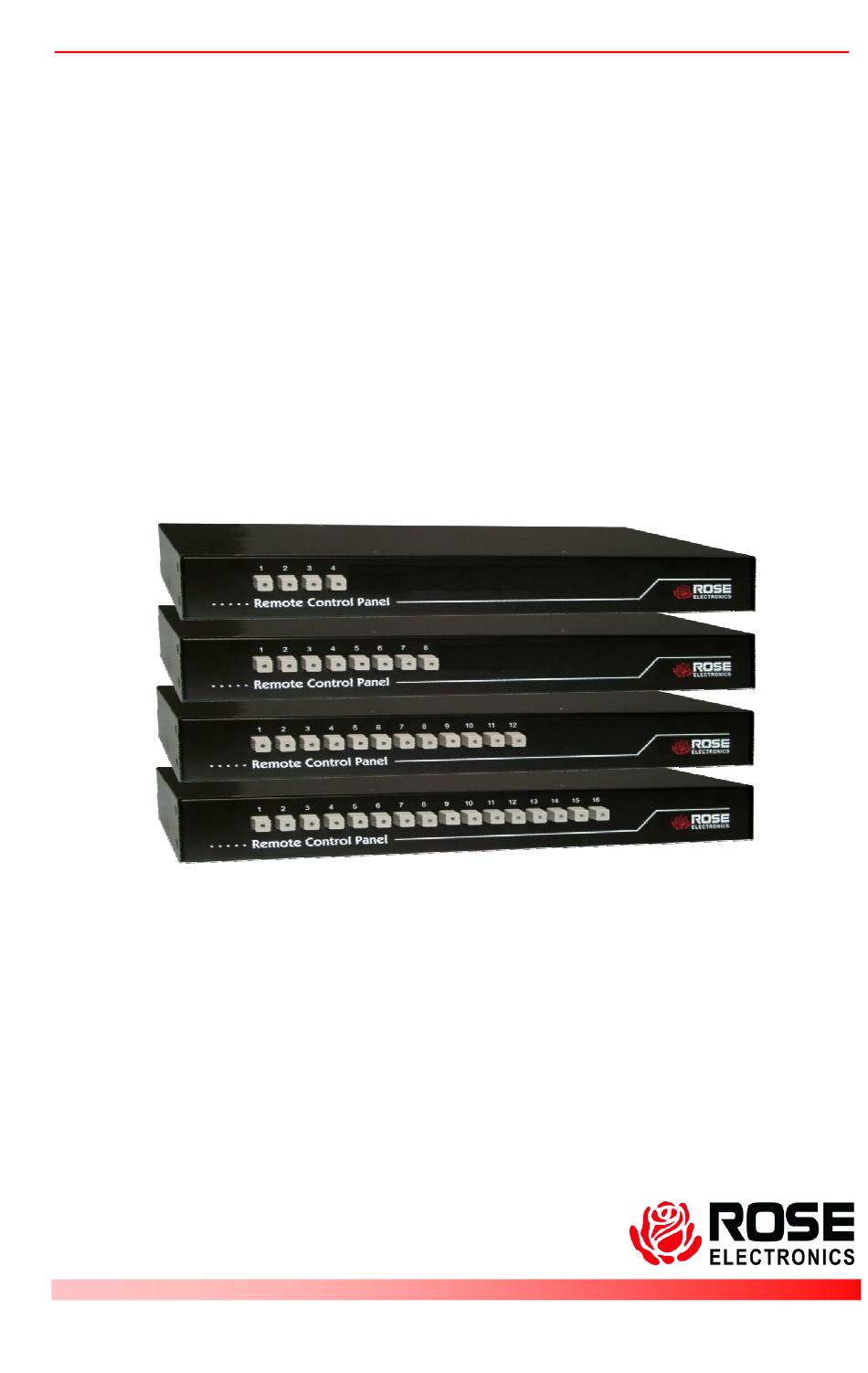

- Page 1 REMOTE CONTROL PANEL REMOTE CONTROL PANEL REMOTE CONTROL PANEL REMOTE CONTROL PANEL INSTALLATION OPERATIONS MANUAL 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 WWW.ROSE.COM...
-
Page 2: Limited Warranty
Remote Control Panel™ to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below. - Page 3 EUROPEAN UNION DECLARATION OF CONFORMITY ACCORDING TO COUNCIL DIRECTIVE 89/336EEC & 73/23EEC This equipment is in conformity with the protection requirements of the following Council Directives: The Declaration of Conformity is based upon compliance of the product with the following harmonized standards: EN55022: 1998 EN61000-4-5: 1995...
-
Page 4: System Introduction
RS232 serial port on a KVM switch allowing you to remotely switch to any CPU port. The Remote Control Panel is easy to install and operate. No set-up is required; just connect a Rose Electronics UltraView, ServeView, or MultiVideo product to the Remote Control Panel with an RJ11 cable, apply power and push the button. -
Page 5: Installation
Rear View (All Models) Connectors – RS232 Power Installation The Remote Control Panel is easy to install. Connect a serial cable from your KVM switch’s RS232 port to the Remote Control Panel’s rear RS232 port Connect the power adapter to the unit Connect the power adapter to 110/220 v source It is ready to use. -
Page 6: Operation
Cables A serial adapter cable is used to connect the Remote Control Panel to the RS232 port on a compatible KVM switch. The DB9M to RJ11 cable connects from the DB9M connector on the Remote Control Panel to the RS232 port on the KVM switch. Extended distance cables are offered for distances greater than 5 feet from the Remote Control Panel. - Page 8 〒103-0014 東京都中央区日本橋蛎殻町 1-16-11 TEL:03-3668-8089 FAX:03-3668-9872 URL:http://www.cybernetech.co.jp...
